SEAT (MODEL Z)

GS850G 1983 (D) USA (E03)

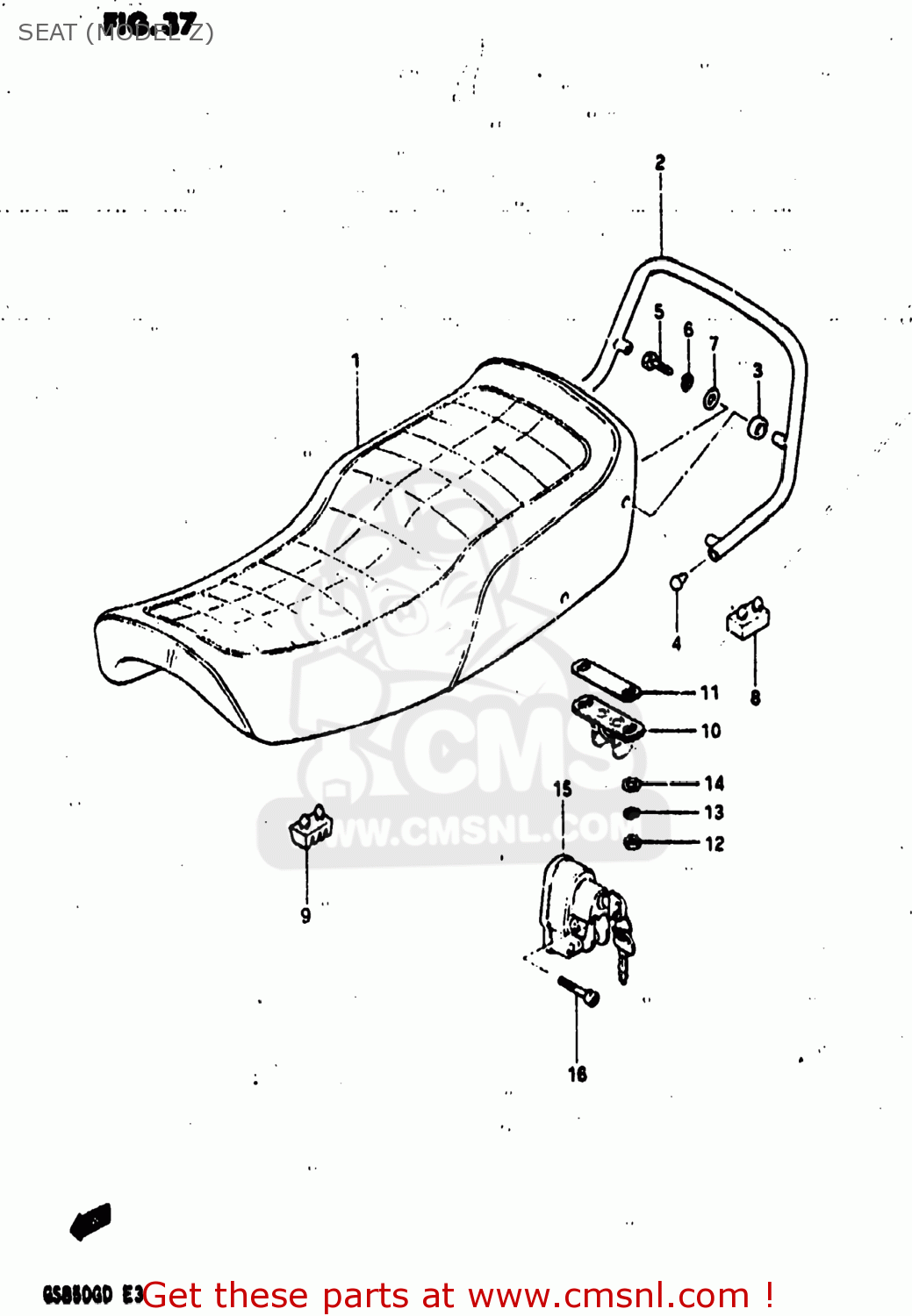

Seat (model z) diagram GS850G 1983 (D) USA (E03)

SEAT (MODEL Z) GS850G 1983 (D) USA (E03)

SEAT (MODEL Z) GS850G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

451004940047G
ref: 1
45100-49410-48H

SEAT ASSEMBLY

€ 360.00

2

4621049400
ref: 2

HANDLE,PILLION RIDER

€ 55.50

3

4621249000
ref: 3

CUSHION

€ 15.00

4

4621349000
ref: 4

END,SHEET HANDLE

€ 5.50

5

0110708208
ref: 5
01500-08207

BOLT

€ 3.00

6

0832121088
ref: 6
08321-01087

LOCK WASHER

€ 2.00

7

0832221088
ref: 7
08322-01087

WASHER

€ 2.00

8

0932108012
ref: 8

CUSHION(40X23X12.7)

€ 4.50

9

4514945330
ref: 9

CUSHION,SUPPORT(50X25X32)

€ 2.00

10

4521044101
ref: 10

STRIKER,SEAT LOCK

€ 32.50

11

4521744100
ref: 11

SHIM,SEAT LOCK STRIKER

€ 4.50

12

0831022068
ref: 12
08310-00067

NUT 6MM

€ 2.50

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

9570034210
ref: 15

LOCK ASSY,HELMET

€ 59.00

16

0910605008
ref: 16
07130-0525B

BOLT 5X25

€ 2.00
