CYLINDER

GS850G 1983 (D) USA (E03)

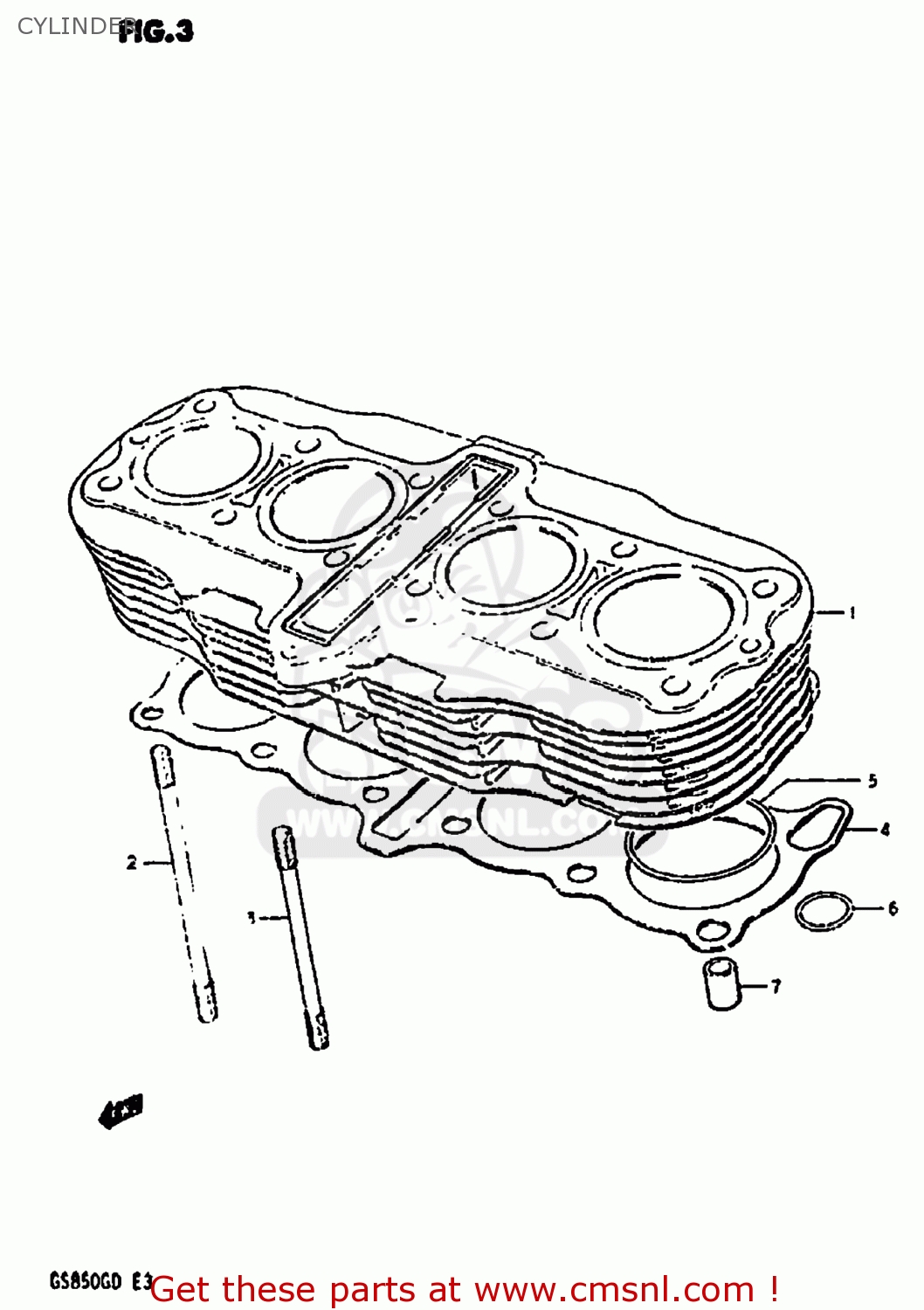

Cylinder diagram GS850G 1983 (D) USA (E03)

CYLINDER GS850G 1983 (D) USA (E03)

CYLINDER GS850G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121045110
ref: 1-1

CYLINDER

€ 0.00

1-2

1121045120
ref: 1-2

CYLINDER

€ 846.50

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

1124145110
ref: 4
11241-45110-H17

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50
