CYLINDER HEAD COVER
GS850G 1983 (D) USA (E03)

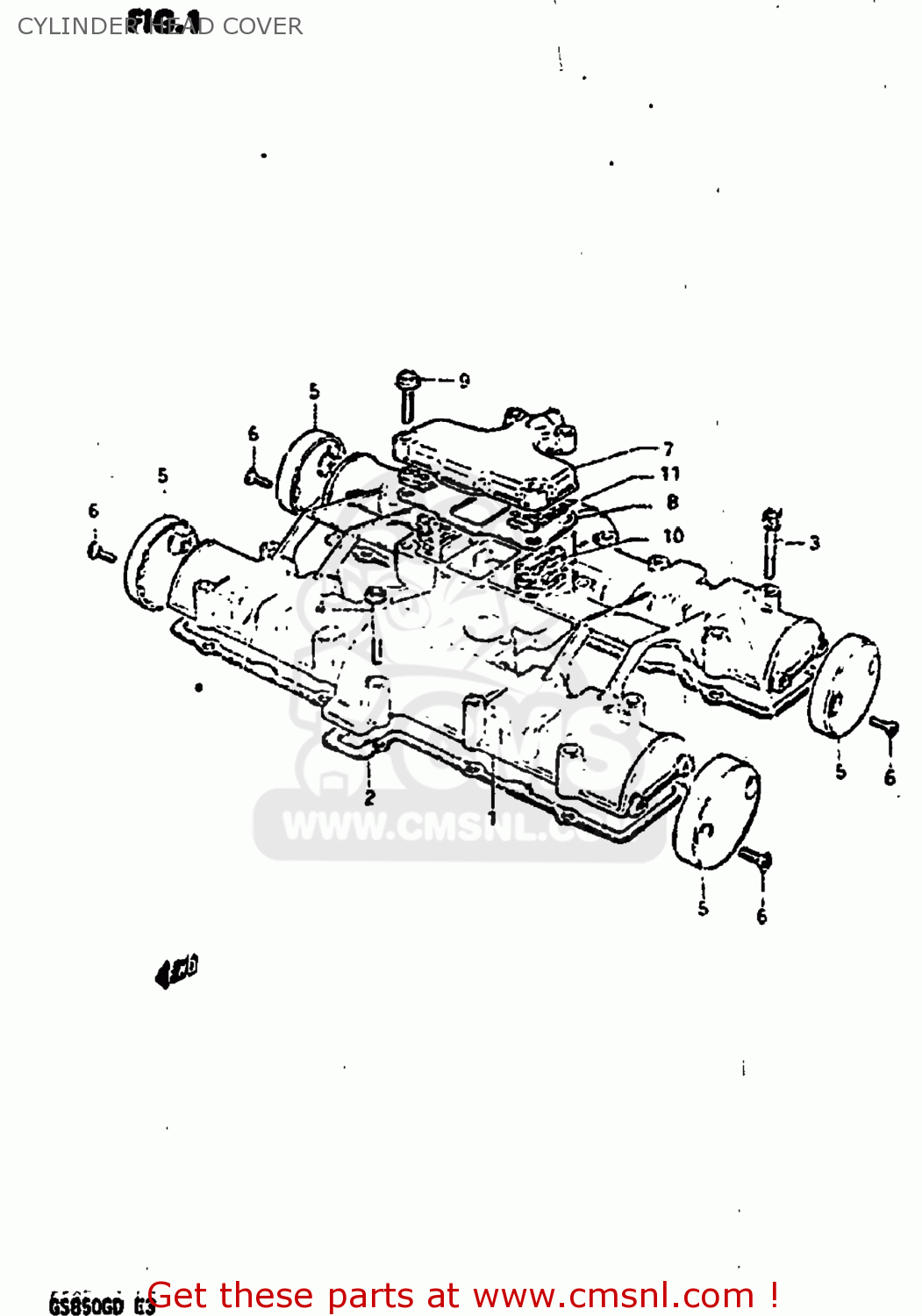

Cylinder head cover diagram GS850G 1983 (D) USA (E03)
CYLINDER HEAD COVER GS850G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1117145010
ref: 1-1
11171-45020
COVER,CYLINDER HEAD
€ 193.00
1-2
1117145020
ref: 1-2
COVER,CYLINDER
€ 193.00
2
1117345010
ref: 2
11173-45011-H17
GASKET,CYLINDER HEAD COVER (MCA)
€ 42.00
3
0151706408
ref: 3
01550-06407
BOLT
€ 2.50
4
0151706458
ref: 4
01550-06457
BOLT,UNDER
€ 2.50
5
1117449000
ref: 5
CAP,CYLINDER HEAD COVER
€ 38.00
6
0912705013
ref: 6
SCREW(5X12)
€ 2.50
7-1
1117645001
ref: 7-1
11176-45011
COVER,BREATHER
€ 32.50
7-2
1117645020
ref: 7-2
11176-45011
COVER,BREATHER
€ 32.50
8
1117745000
ref: 8
11177-45000-H17
GASKET (MCA)
€ 9.00
9
0151706258
ref: 9
01550-06257
BOLT
€ 2.50
10
1118645000
ref: 10
11186-45001
COVER,BREATHER
€ 5.50
11
1118745000
ref: 11
11187-45001
SEPARATOR,OIL BREATHER
€ 6.50
