FUEL TANK (MODEL Z)

GS850G 1983 (D) USA (E03)

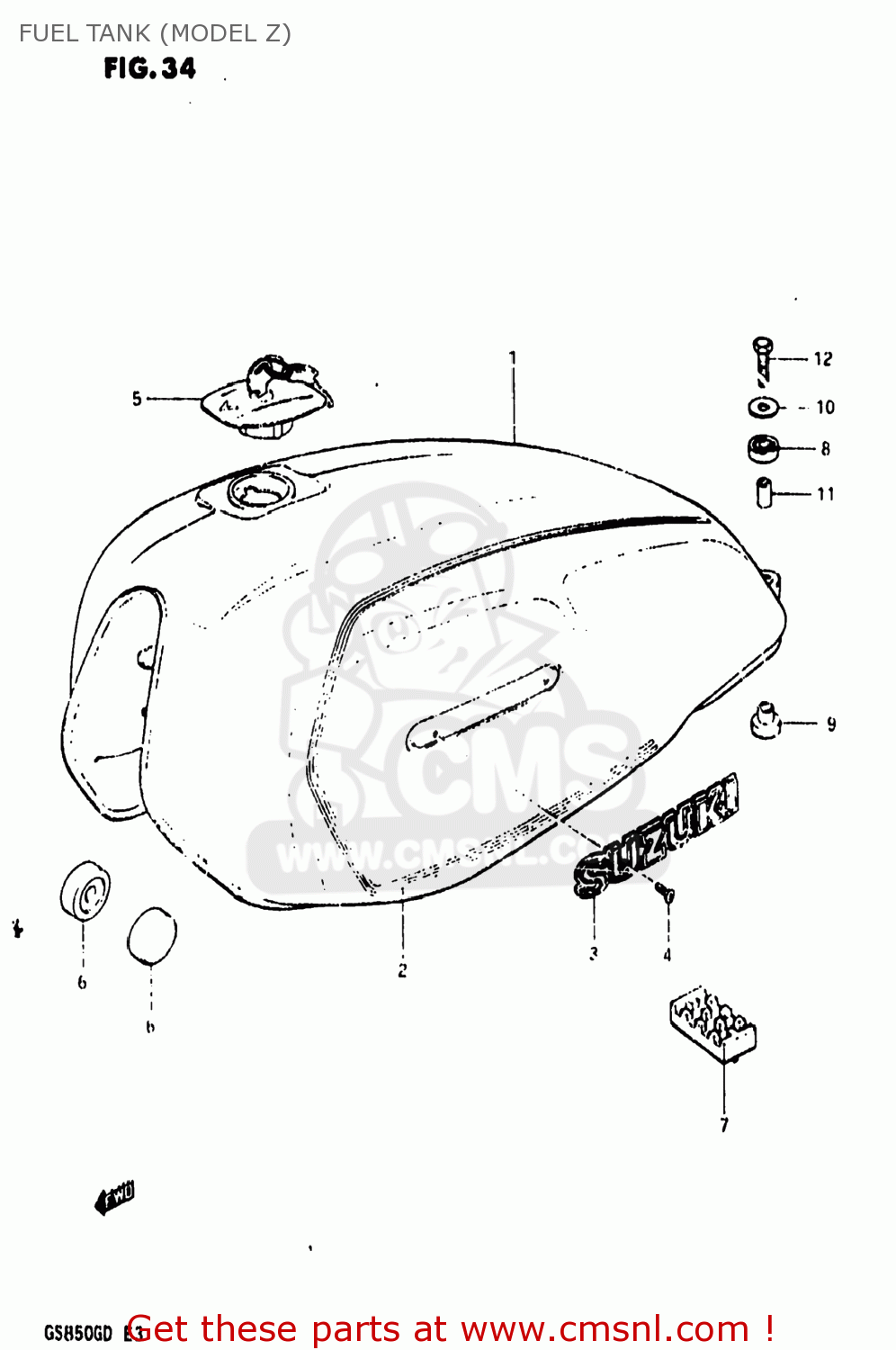

Fuel tank (model z) diagram GS850G 1983 (D) USA (E03)

FUEL TANK (MODEL Z) GS850G 1983 (D) USA (E03)

FUEL TANK (MODEL Z) GS850G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

441004571010U
ref: 1-1
44110-45110-13L

TANK ASSEMBLY,FUEL

€ 324.00

1-2

4410045710019
ref: 1-2
44110-45110-13L

TANK ASSEMBLY,FUEL

€ 324.00

2

6811045710764
ref: 2

TAPE SET,FUEL TANK

€ 21.00

3

6811144600
ref: 3

EMBLEM

€ 0.00

4

0213203065
ref: 4
02122-0306B

SCREW 3X6

€ 2.00

5

4420049703
ref: 5
44200-49810

CAP SET,FUEL TANK

€ 121.00

6

0932910016
ref: 6

CUSHION

€ 3.00

7

4454149401
ref: 7

CUSHION,FUEL TANK

€ 9.00

8

0932010020
ref: 8

CUSHION

€ 4.00

9

0932014013
ref: 9

CUSHION

€ 3.00

10

0916006004
ref: 10
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

11

0918006091
ref: 11
09180-06273

SPACER (6.4X9X21.5)

€ 5.50

12

0110706308
ref: 12
01500-06307

BOLT

€ 2.50
