GEAR SHIFTING
GS850G 1983 (D) USA (E03)

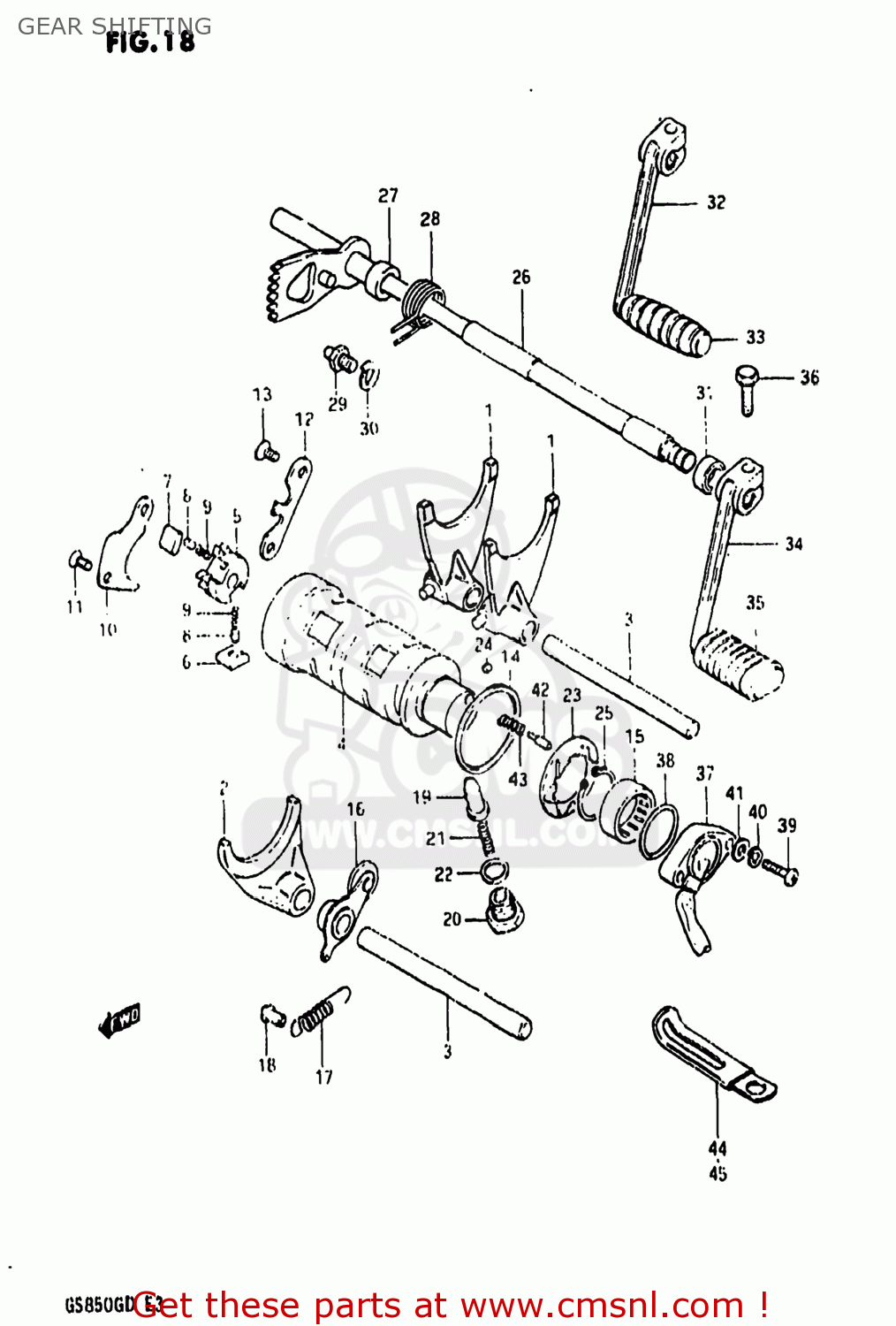

Gear shifting diagram GS850G 1983 (D) USA (E03)
GEAR SHIFTING GS850G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
€ 87.00
2
2523145100
ref: 2
FORK,GEAR SHIFT NO.3
€ 43.50
3
2541131000
ref: 3
25411-18900
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2531045101
ref: 4
CAM,GEAR SHIFT
€ 209.00
5
2532211000
ref: 5
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533111001
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 2.50
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
€ 17.50
16
2535045100
ref: 16
STOPPER,GEAR SHIFTING
€ 9.50
17
0944309006
ref: 17
SPRING
€ 2.50
18
0922004001
ref: 18
09223-04001
RIVET
€ 1.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
21
0944006020
ref: 21
SPRING
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
€ 2.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0621104063
ref: 24
04221-04069
PIN 4X6
€ 2.00
25
0833131258
ref: 25
08331-3125A
CIRCLIP,25MM
€ 2.00
26
2551045111
ref: 26
SHAFT,GEAR SHIFT
€ 8.50
27
0918012090
ref: 27
SPACER (12X20X12)
€ 9.00
28
0944426017
ref: 28
SPRING
€ 5.00
29
2567101000
ref: 29
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0916208005
ref: 30
08321-01087
WASHER
€ 2.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
€ 7.00
32
2560045110
ref: 32
25600-45130
LEVER ASSEMBLY,GEAR SHIFTING
€ 52.50
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
2560045120
ref: 34
25600-45130
LEVER ASSEMBLY,GEAR SHIFTING
€ 52.50
35
2565249300
ref: 35
RUBBER,PEDAL
€ 5.50
36
0110708208
ref: 36
01500-08207
BOLT
€ 3.00
37
3772045100
ref: 37
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
38
0928026003
ref: 38
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
39
0211205208
ref: 39
02112-05207
SCREW 5X20
€ 3.00
40
0832121058
ref: 40
08321-0105A
LOCK WASHER
€ 2.00
41
0832221058
ref: 41
08322-01057
WASHER
€ 2.50
42
0920905011
ref: 42
PIN(5X15.5)
€ 2.00
43
0944004010
ref: 43
SPRING
€ 1.50
44
0940406401
ref: 44
09404-06432
CLAMP L:35
€ 2.50
45
0940408401
ref: 45
09404-08420
CLAMP
€ 3.50
