CYLINDER

GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

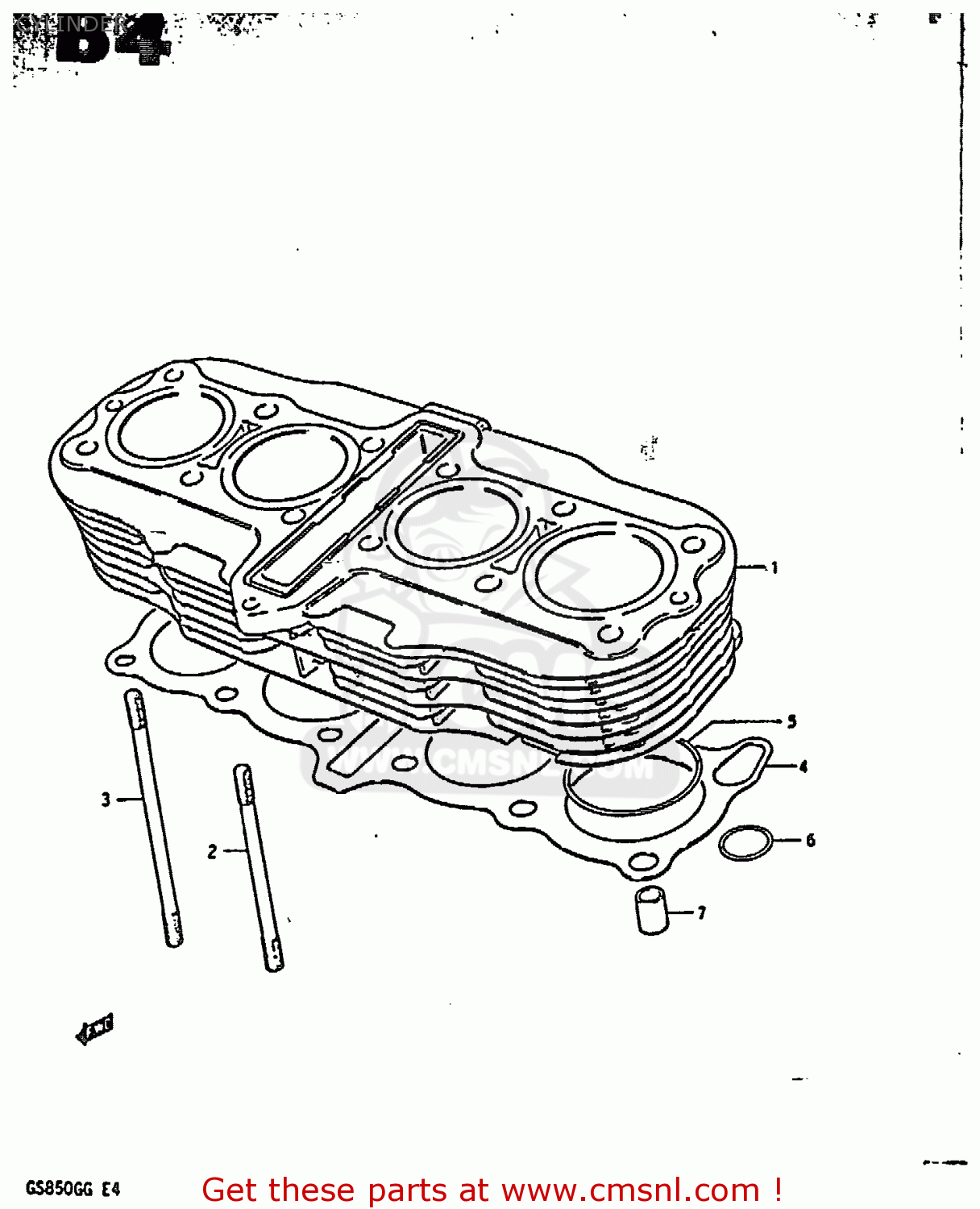

Cylinder diagram GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

CYLINDER GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

CYLINDER GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1121045120
ref: 1

CYLINDER

€ 846.50

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810071
ref: 3

STUD

€ 9.00

4

1124145110
ref: 4

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7

PIN

€ 2.50
