RIGHT HANDLE SWITCH

GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

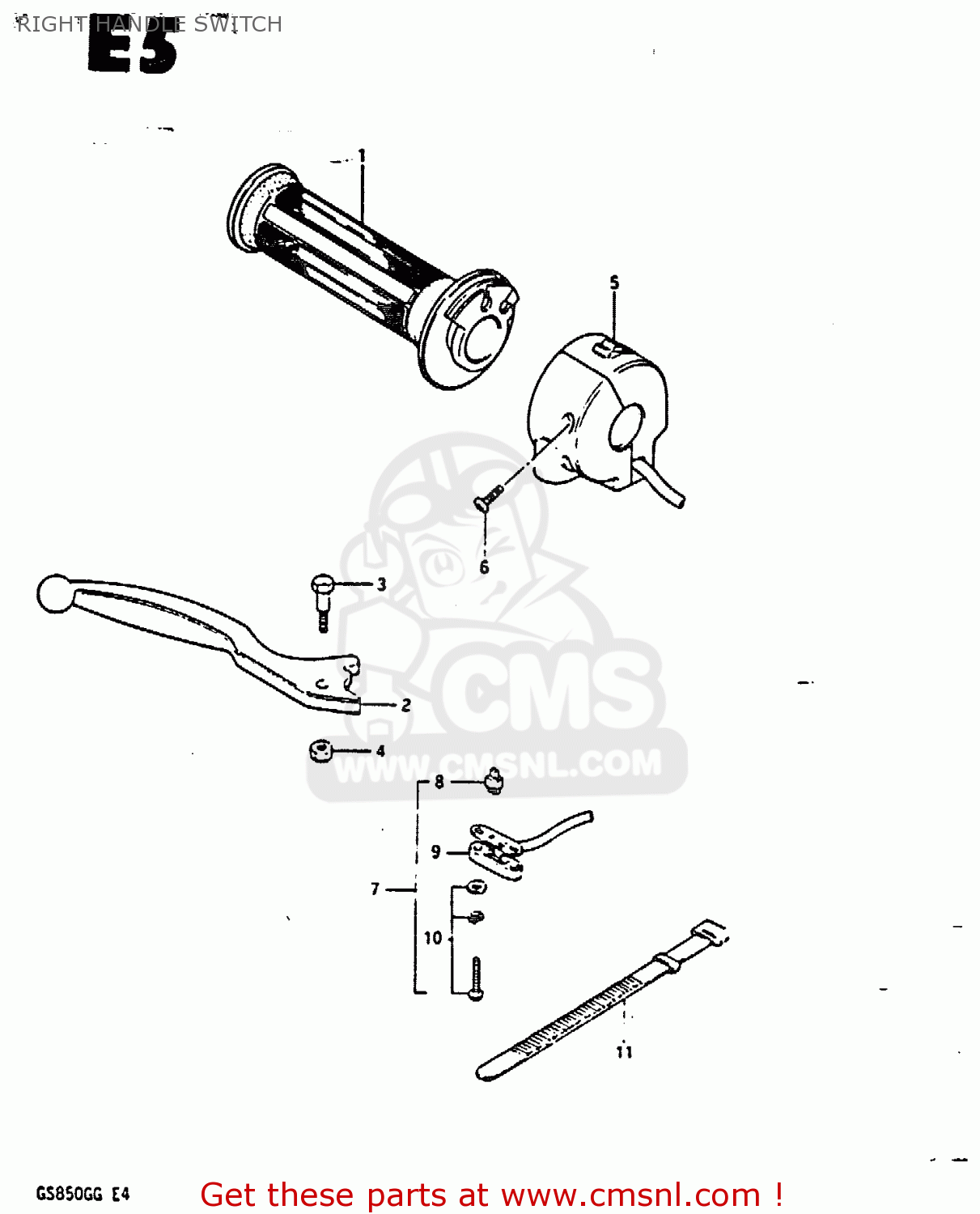

Right handle switch diagram GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

5711049510
ref: 1

GRIP,THROTTLE

€ 33.00

2-1

5742049101
ref: 2-1

LEVER,BRAKE

€ 36.50

2-2

5743118621
ref: 2-2
MODEL E

BOLT

€ 8.00

5743149100
ref: 3
MODEL F/G

BOLT,LEVER PIVOT

€ 6.00

0831921065
ref: 4

NUT

€ 2.50

5-1

3720049541
ref: 5-1
E1, E2, E6, E24

SWITCH ASSY,HANDLE,R

€ 130.00

5-2

3720049511
ref: 5-2
E1, E2, E6, E24

SWITCH ASSY, HANDLE RH (FLAT)

€ 130.00

5-3

3720049551
ref: 5-3
E4, E22, E25

SWITCH ASSY,HA

€ 167.00

5-4

3720049521
ref: 5-4
E4, E22, E25

SWITCH ASSY, HANDLE RH (FLAT)

€ 167.00

3759149210
ref: 6

SCREW

€ 2.50

7-1

5746049300
ref: 7-1

SWITCH ASSEMBLY

€ 40.00

7-2

5746033700
ref: 7-2

SWITCH ASSY,STOP

€ 38.50

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 10

SCREW

€ 2.50

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
