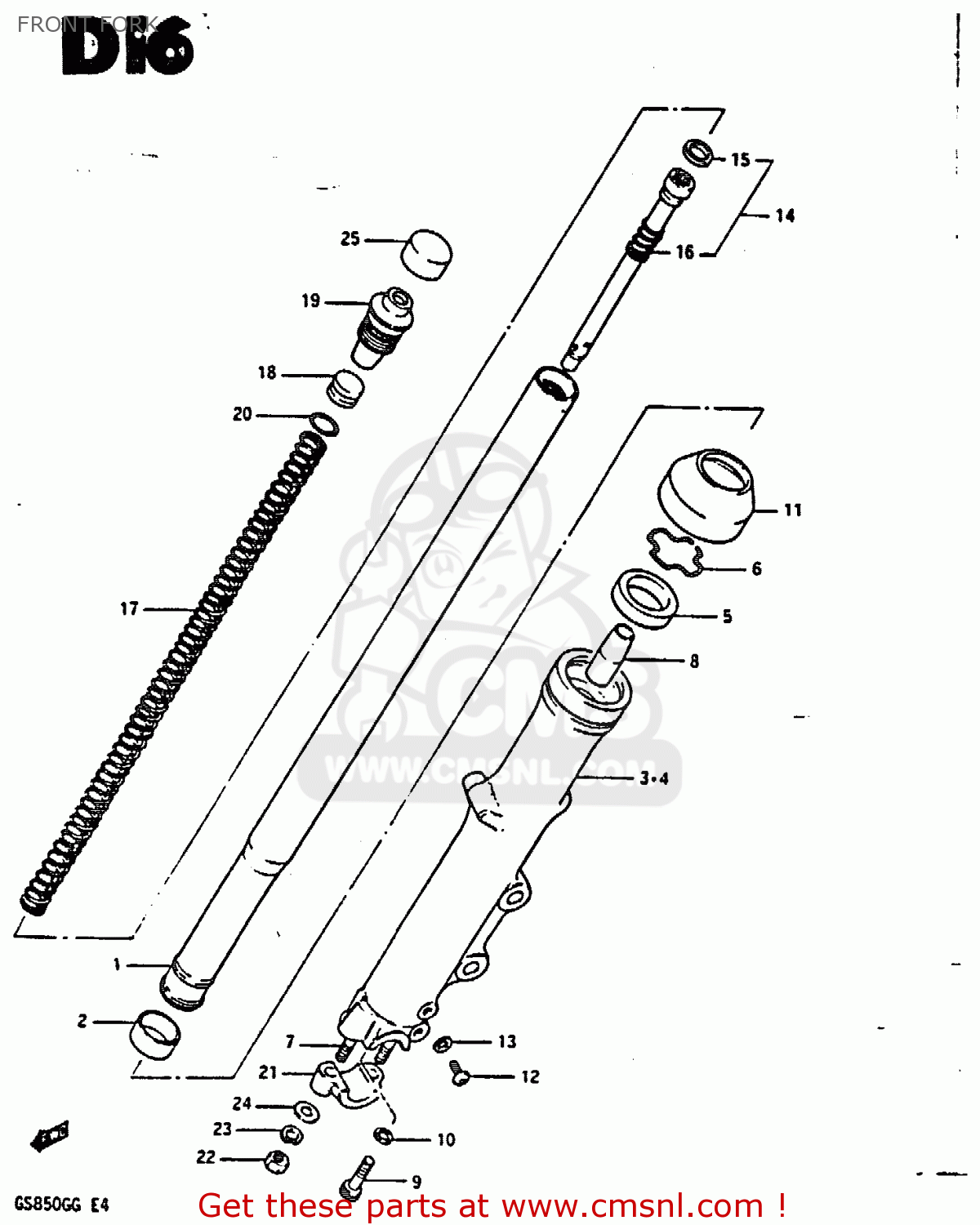

FRONT FORK

ref

part #

description

quantity

0

5110349410
ref: 0

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 646.00

0

5110449410
ref: 0

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 646.00

1

5111049410
ref: 1

TUBE,FORK,INNER

€ 212.50

2

5112149200
ref: 2

PISTON

€ 18.00

3

5113049400
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 218.00

4

5114049400
ref: 4

TUBE,FORK,LEFT,OUTER

€ 239.50

5

5115349001
ref: 5

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

0910808142
ref: 7

BOLT,STUD

€ 3.00

8

5119549071
ref: 8

PIECE,OIL LOCK

€ 12.00

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

5117349002
ref: 11

SEAL,DUST

€ 13.00

12

0211204088
ref: 12

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5114649020
ref: 14

CYLINDER,FRONT FORK

€ 0.00

15

5119649000
ref: 15

RING,PISTON

€ 9.00

16

5117749000
ref: 16

SPRING,REBOUND

€ 7.50

17

5117145160
ref: 17

SPRING,FRONT FORK

€ 32.50

18

5117245110
ref: 18

PISTON,FREE

€ 10.50

19

5135149200
ref: 19

CAP

€ 59.00

20

5111745110
ref: 20

O-RING

€ 4.00

21

5113249000
ref: 21

HOLDER,AXLE

€ 30.00

22

0914008005
ref: 22

NUT (8MM)

€ 1.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

0832221088
ref: 24

WASHER

€ 2.00

25

5118949300
ref: 25

CAP,RUBBER

€ 9.00
