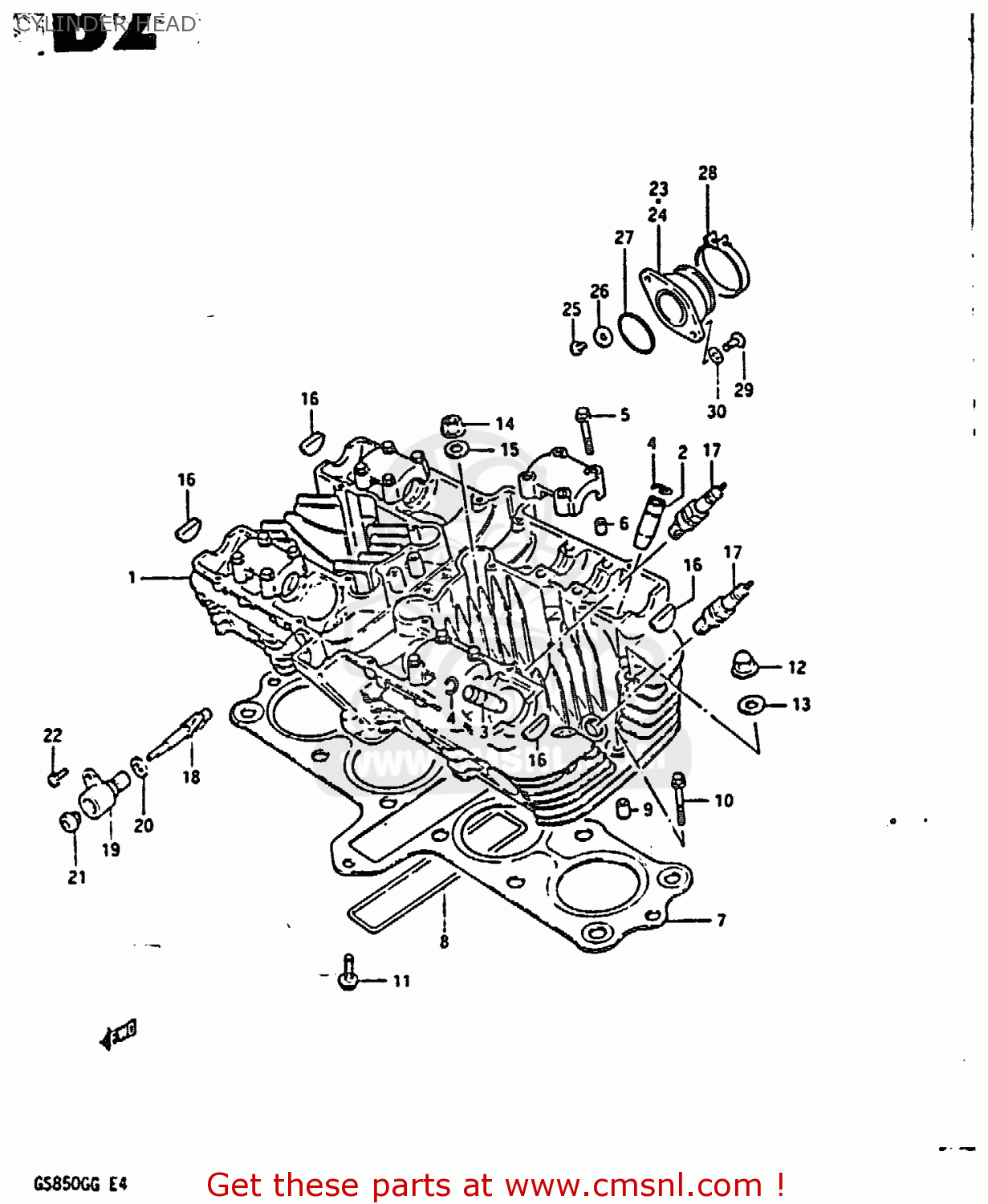

CYLINDER HEAD

ref

part #

description

quantity

1

1110045131
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 286.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114149004
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 102.50

8

0928099003
ref: 8

O RING(D:3,ID:26X157)

€ 34.00

9

0421111189
ref: 9

PIN

€ 2.00

10

0151706455
ref: 10

BOLT (6X45)

€ 2.50

11

0151706305
ref: 11

BOLT 6X30

€ 2.50

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

0831616108
ref: 14

NUT

€ 2.00

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.50

16

0924123002
ref: 16

PLUG

€ 8.50

17-1

0948200091
ref: 17-1

PLUG,SPARK

€ 3.00

17-2

0948200196
ref: 17-2

SPARK PLUG W24ES-U

€ 3.50

17-3

0948200121
ref: 17-3
E6

PLUG,SPARK(BR8ES)

€ 12.50

17-4

0948200247111
ref: 17-4
E6

PLUG,SPARK(W24ESR)

€ 3.50

18

2643145002
ref: 18

GEAR,TACHOMETER DRIVEN

€ 43.00

19

2644149000
ref: 19

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

20

2645145000A
ref: 20

SEAL,TACHOMETER DRIVEN

€ 4.50

21

0928905002
ref: 21

SEAL,OIL(5X12X8)

€ 11.00

22

0912805101
ref: 22

SCREW(5X12)

€ 1.50

23

1311045100
ref: 23

PIPE,INTAKE,R

€ 42.00

24

1312045100
ref: 24

PIPE,INTAKE,L

€ 42.00

25

0711005085
ref: 25

BOLT, INTAKE PORT

€ 2.50

26

0916805010
ref: 26

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

27

0928038004
ref: 27

O RING(D:2.4,ID:37.7)

€ 4.50

28

0940250306
ref: 28

CLAMP

€ 6.00

29

0211206205
ref: 29

SCREW

€ 2.00

30

0832221064
ref: 30

WASHER

€ 2.00
