FRAME COVER

GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

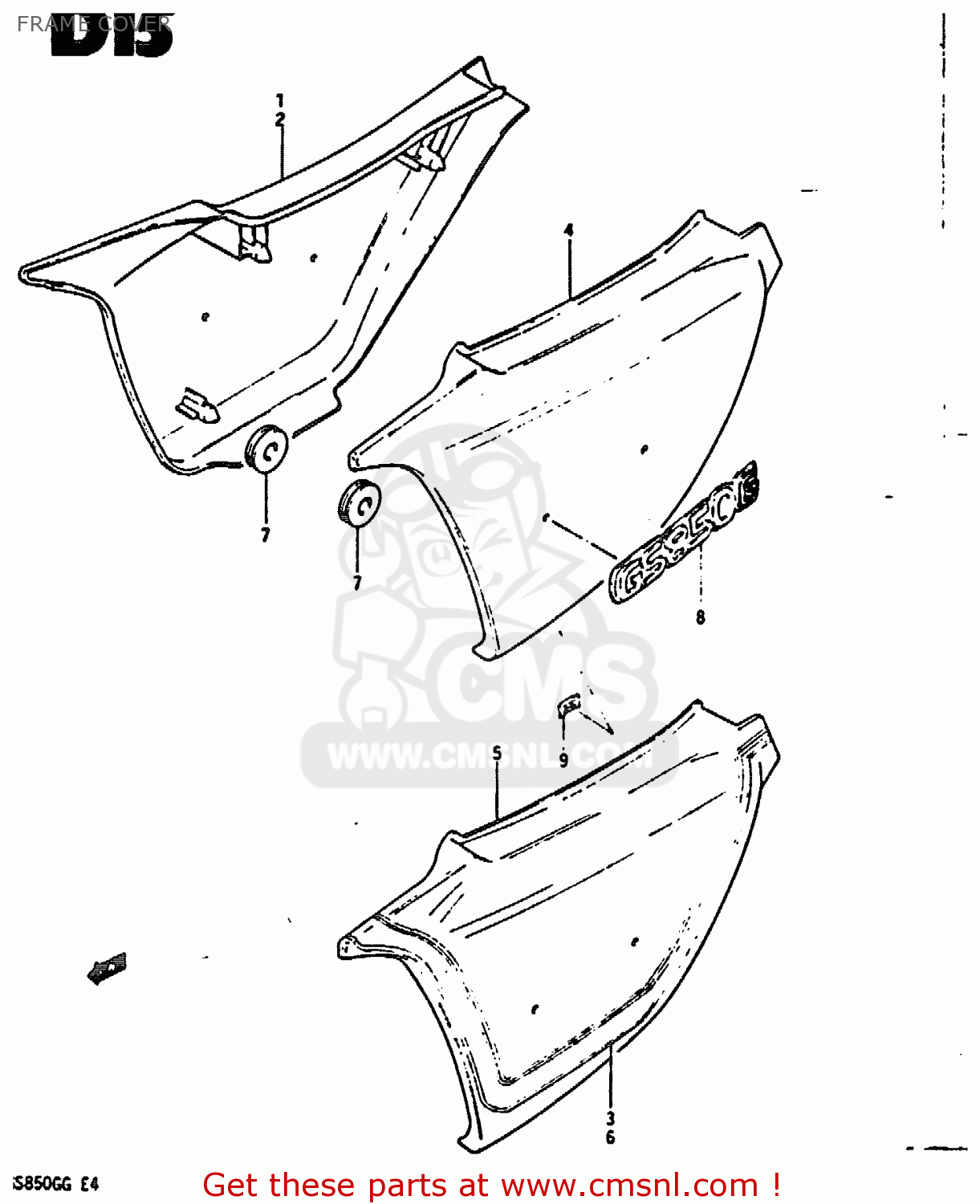

Frame cover diagram GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1-1

471104947000J
ref: 1-1
MODEL E

COVER, FRAME RH (RED)

€ 76.50

1-2

471104947020J
ref: 1-2
MODEL E

COVER, FRAME RH (BROWN)

€ 76.50

1-3

471104947013Z
ref: 1-3
MODEL E/G E2

COVER, FRAME RH (BLACK)

€ 76.50

47110494807MY
ref: 2
MODEL F/G

COVER, FRAME RH

€ 121.00

68130494707PG
ref: 3
MODEL F/G

TAPE SET, FRAME COVER RH

€ 39.50

4-1

472104947000J
ref: 4-1
MODEL E

COVER, FRAME LH (RED)

€ 76.50

4-2

472104947020J
ref: 4-2
MODEL E

COVER, FRAME LH (BROWN)

€ 76.50

4-3

472104947013Z
ref: 4-3
MODEL E/G E2

COVER, FRAME LH (BLACK)

€ 0.00

47210494807MY
ref: 5
MODEL F/G

COVER, FRAME LH

€ 102.50

68140494707PG
ref: 6
MODEL F/G

TAPE SET, FRAME COVER LH

€ 0.00

0932008018
ref: 7

CUSHION

€ 4.00

6813145720
ref: 8

EMBLEM,FRAME COVER

€ 24.50

0914803002
ref: 9

NUT

€ 3.00
