GEAR SHIFTING

GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

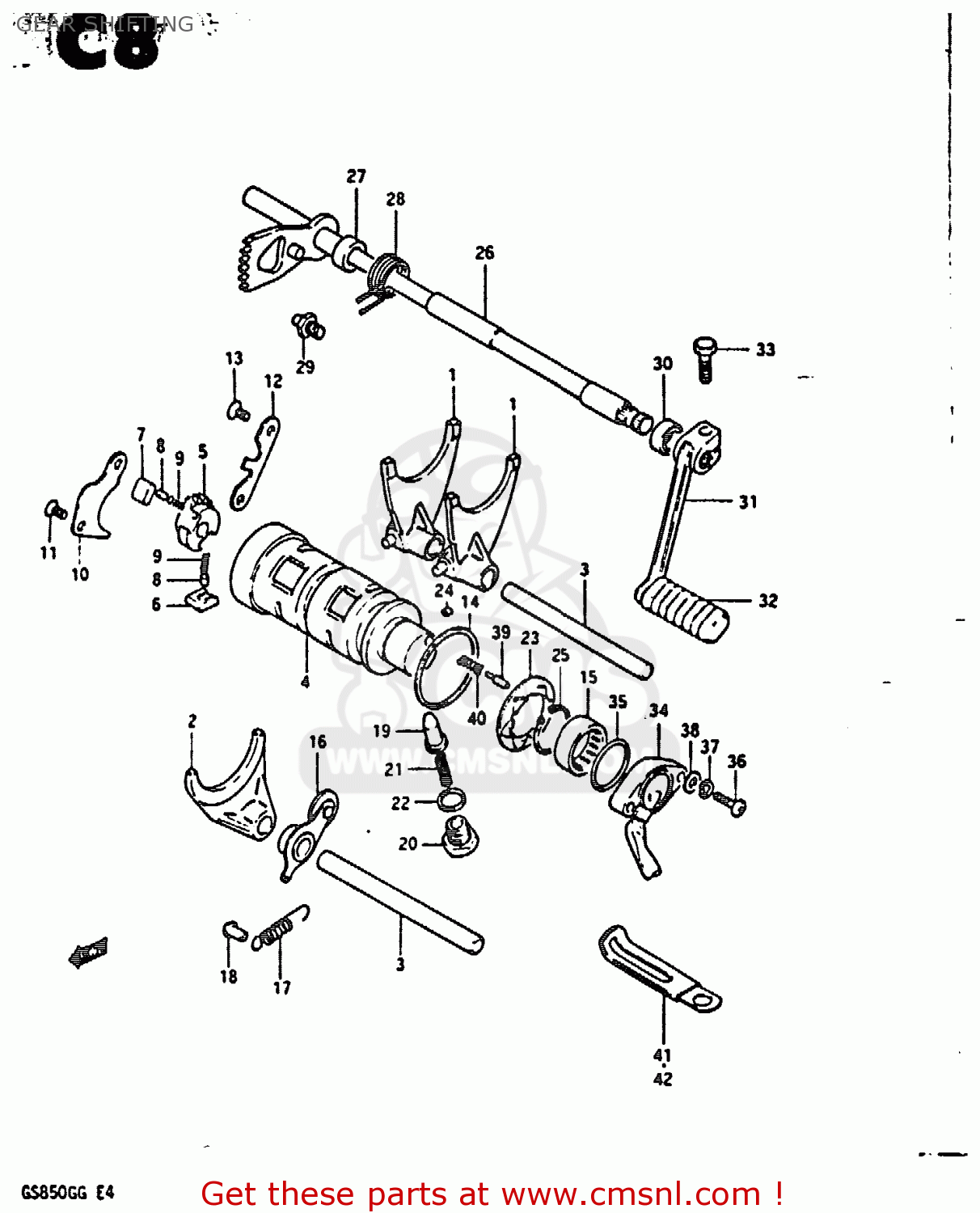

Gear shifting diagram GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

GEAR SHIFTING GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)
GEAR SHIFTING GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)
GEAR SHIFTING GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
2521149200
€ 87.00
2
2523145100
ref: 2
FORK,GEAR SHIFT NO.3
€ 43.50
3
2541131301
ref: 3
FROM 25411-31000
SHAFT,GEAR SHIFT FORK
2541131301
€ 14.50
4
2531045101
ref: 4
CAM,GEAR SHIFT
€ 209.00
5
2532231301
ref: 5
FROM 25322-34200
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
6
2532334200
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533111001
ref: 10
LIFTER,GEAR SHIFT PAWL
2533111001
€ 2.50
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
0916040001
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
0926325018
€ 17.50
16
2535045100
ref: 16
STOPPER,GEAR SHIFTING
2535045100
€ 9.50
17
0944309006
ref: 17
SPRING
0944309006
€ 2.50
18
0922004001
ref: 18
RIVET
0922004001
€ 1.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006020
ref: 21
SPRING
0944006020
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0833131258
ref: 25
CIRCLIP,25MM
€ 2.00
26
2551045111
ref: 26
SHAFT,GEAR SHIFT
2551045111
€ 8.50
27
0918012090
ref: 27
SPACER (12X20X12)
€ 9.00
28
0944426017
ref: 28
SPRING
0944426017
€ 5.00
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928512002
ref: 30
OIL SEAL
0928512002
€ 7.00
31
2560045121
ref: 31
LEVER ASSEMBLY,GEAR SHIFTING
2560045121
€ 52.50
32
2565249300
ref: 32
RUBBER,PEDAL
2565249300
€ 5.50
33
0110708208
ref: 33
BOLT
0110708208
€ 3.00
34
3772045100
ref: 34
TERMINAL BASE ASSY,GEAR SHIFT
3772045100
€ 92.50
35
0928026003
ref: 35
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
36
0211205206
ref: 36
SCREW
0211205206
€ 2.50
37
0832121056
ref: 37
LOCK WASHER
0832121056
€ 3.00
38
0832221056
ref: 38
WASHER
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
0920905011
€ 2.00
40
0944004010
ref: 40
SPRING
0944004010
€ 1.50
41
0940406415
ref: 41
CLAMP
€ 3.00
42
0940408402
ref: 42
CLAMP
0940408402
€ 3.50
