STARTING MOTOR

GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

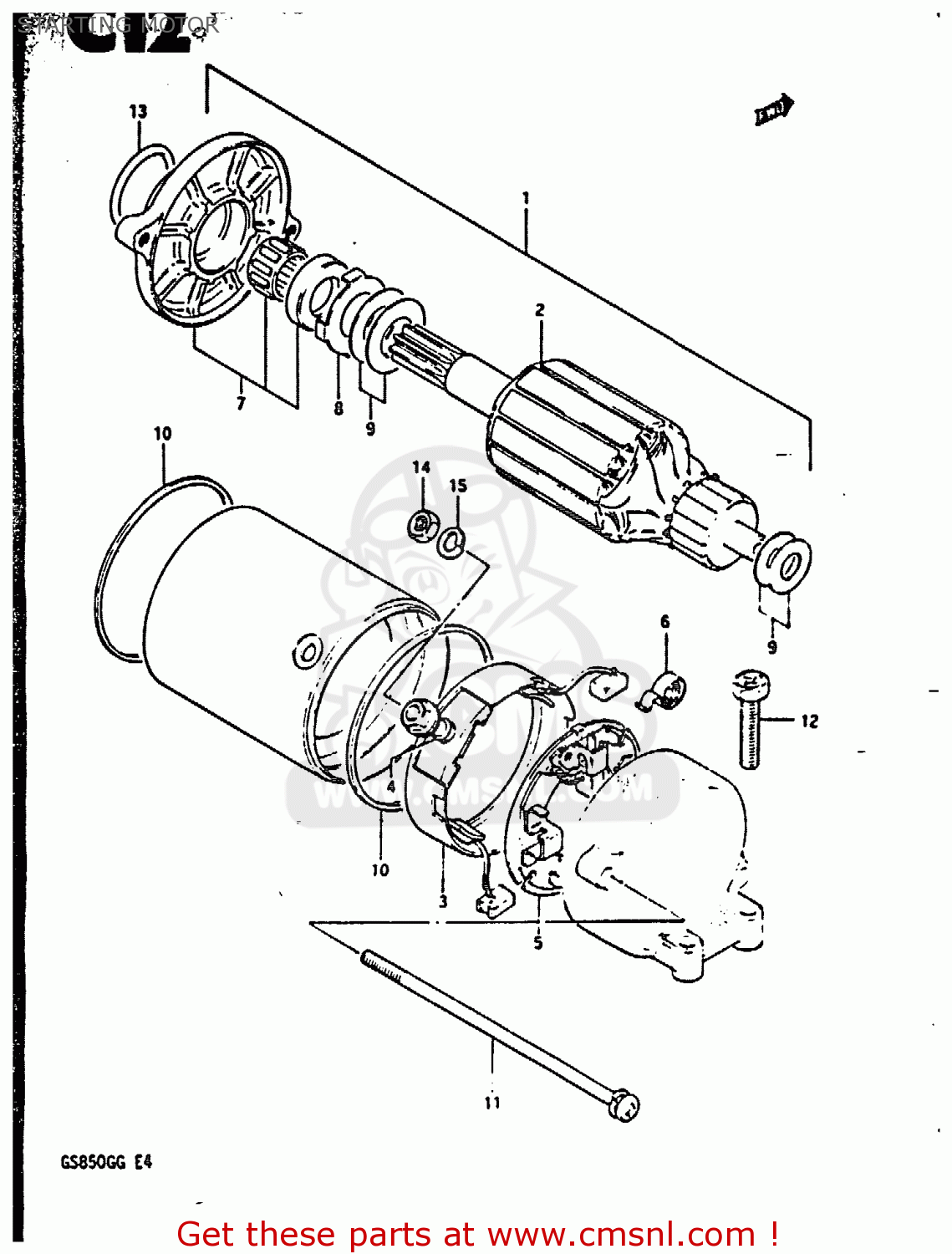

Starting motor diagram GS850G 1986 (G) (E01 E02 E04 E06 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3110049040
ref: 1

MOTOR ASSEMBLY,STARTING

€ 911.00

3131149040
ref: 2

ARMATURE

€ 118.50

3113049040
ref: 3
TO 31130-05A00

BRUSH TERMINAL SET (+)

€ 54.00

3114349040
ref: 4

O RING

€ 3.00

3113249040
ref: 5
TO 31132-05A00

HOLDER,BRUSH

€ 35.50

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

3110049810
ref: 7

HOUSING SET,STARTING MOTOR

€ 80.50

3136049240
ref: 8

SHIM SET

€ 10.50

3136049040
ref: 9

SHIM SET

€ 10.50

3126449040
ref: 10

SEAL,RING

€ 7.50

3128149040
ref: 11

BOLT,STARTING MOTOR HOUSING

€ 7.00

0912806024
ref: 12

SCREW (6X25)

€ 2.50

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

0831011066
ref: 14

NUT

€ 2.00

0832121066
ref: 15

WASHER,LOCK

€ 2.00
