CRANKCASE

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

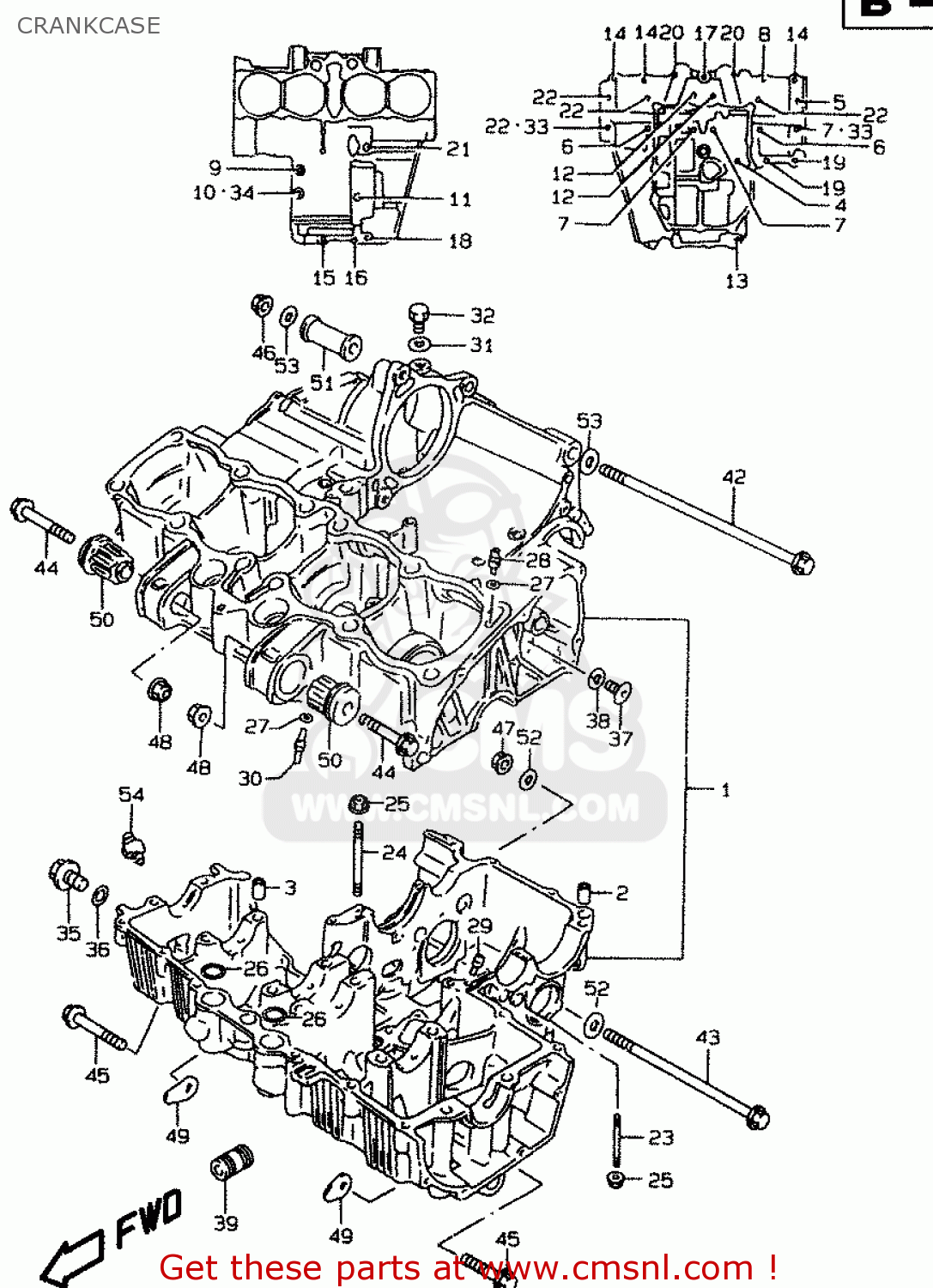

Crankcase diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CRANKCASE GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1130127830
ref: 1
CRANKCASE SET
1130127830
€ 2,213.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611017
ref: 3
PIN(8.4X11X20)
0920611017
€ 6.50
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
