FRONT FENDER (GSF1200T/V/W/X)

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

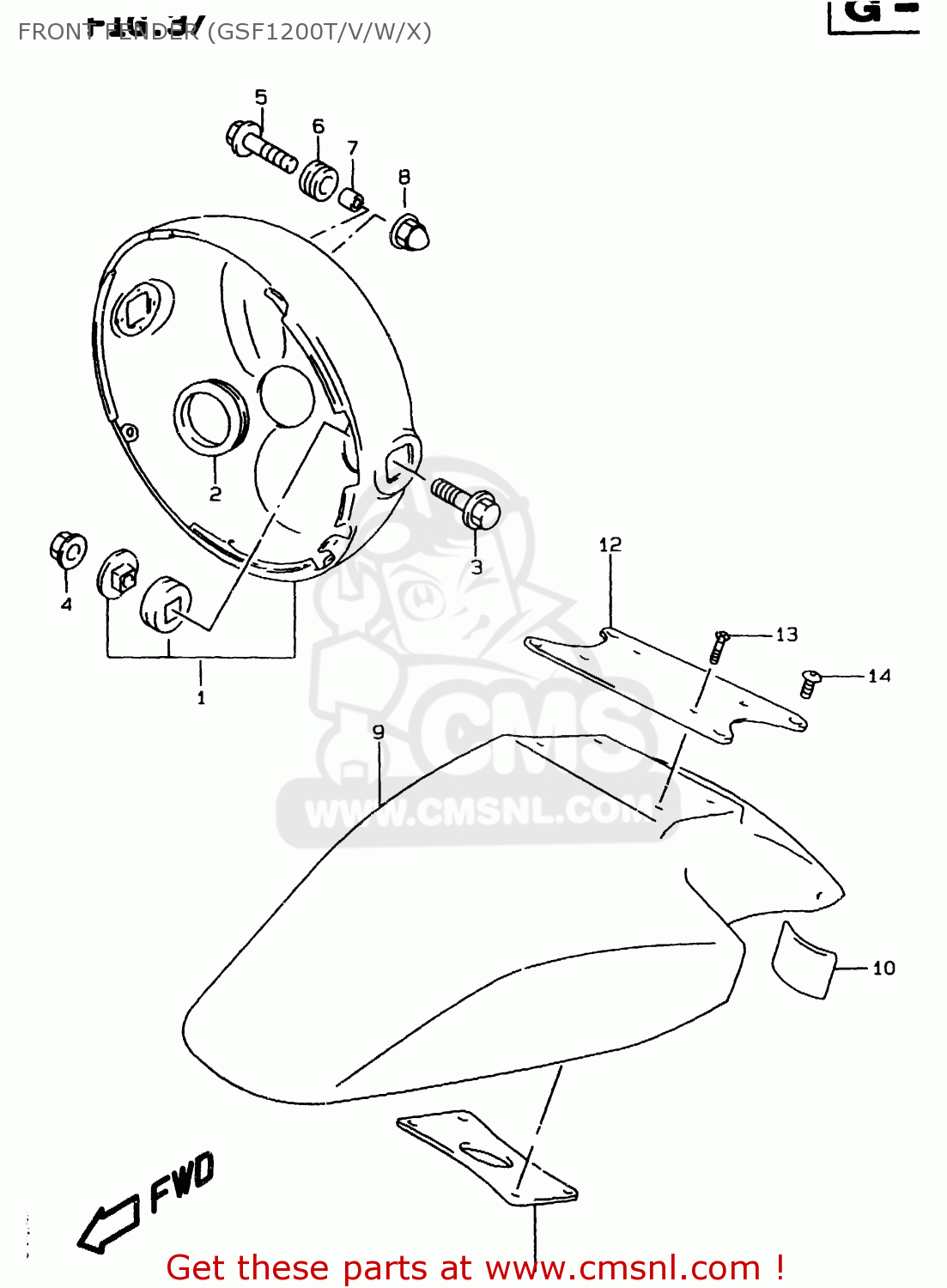

Front fender (gsf1200t/v/w/x) diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT FENDER (GSF1200T/V/W/X) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT FENDER (GSF1200T/V/W/X) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5181001D11
ref: 1

HOUSING,HEADLAMP

€ 124.00

2

5181701D00
ref: 2
MODEL T/V

GROMMET

€ 4.50

2

5181701D01
ref: 2
MODEL W/X

GROMMET

€ 4.50

3

0124408307
ref: 3

BOLT

€ 4.00

4

0831610083
ref: 4

NUT

€ 3.00

5

0911806007
ref: 5

BOLT

€ 3.00

6

0932010015
ref: 6

CUSHION

€ 2.50

7

0918007004
ref: 7

SPACER(6.5X10.5X12)

€ 2.50

8

5181506C00
ref: 8

PLATE,HEADLAMP

€ 5.00

9

5311117C2122U
ref: 9

FENDER,FRONT

€ 101.50

9

5311117C2133J
ref: 9

FENDER,FR

€ 245.00

9

5311117C21Y98
ref: 9
MODEL T

FENDER,FR

€ 143.50

9

5311117C21Y0N
ref: 9
MODEL V

FENDER,FRONT

€ 101.50

9

5311117C211UH
ref: 9
MODEL W

FENDER,FR

€ 140.00

9

5311117C21Y4H
ref: 9
MODEL W

FENDER,FR

€ 108.50

9

5311117C21Y7F
ref: 9
MODEL X

FENDER,FR

€ 106.50

9

5311117C21Y7G
ref: 9
MODEL X

FENDER,FRONT

€ 101.50

10

5314517C11
ref: 10

CUSHION,FR FENDER

€ 5.00

11

5321017C00
ref: 11

BRACE,FR FENDER INNER

€ 9.00

12

5311431E00
ref: 12

BRACE,FR FENDER

€ 40.50

13

0913905032
ref: 13

SCREW(5X18)

€ 2.50

14

0913908007
ref: 14

SCREW(8X16)

€ 4.50
