FOOTREST (MODEL T)

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

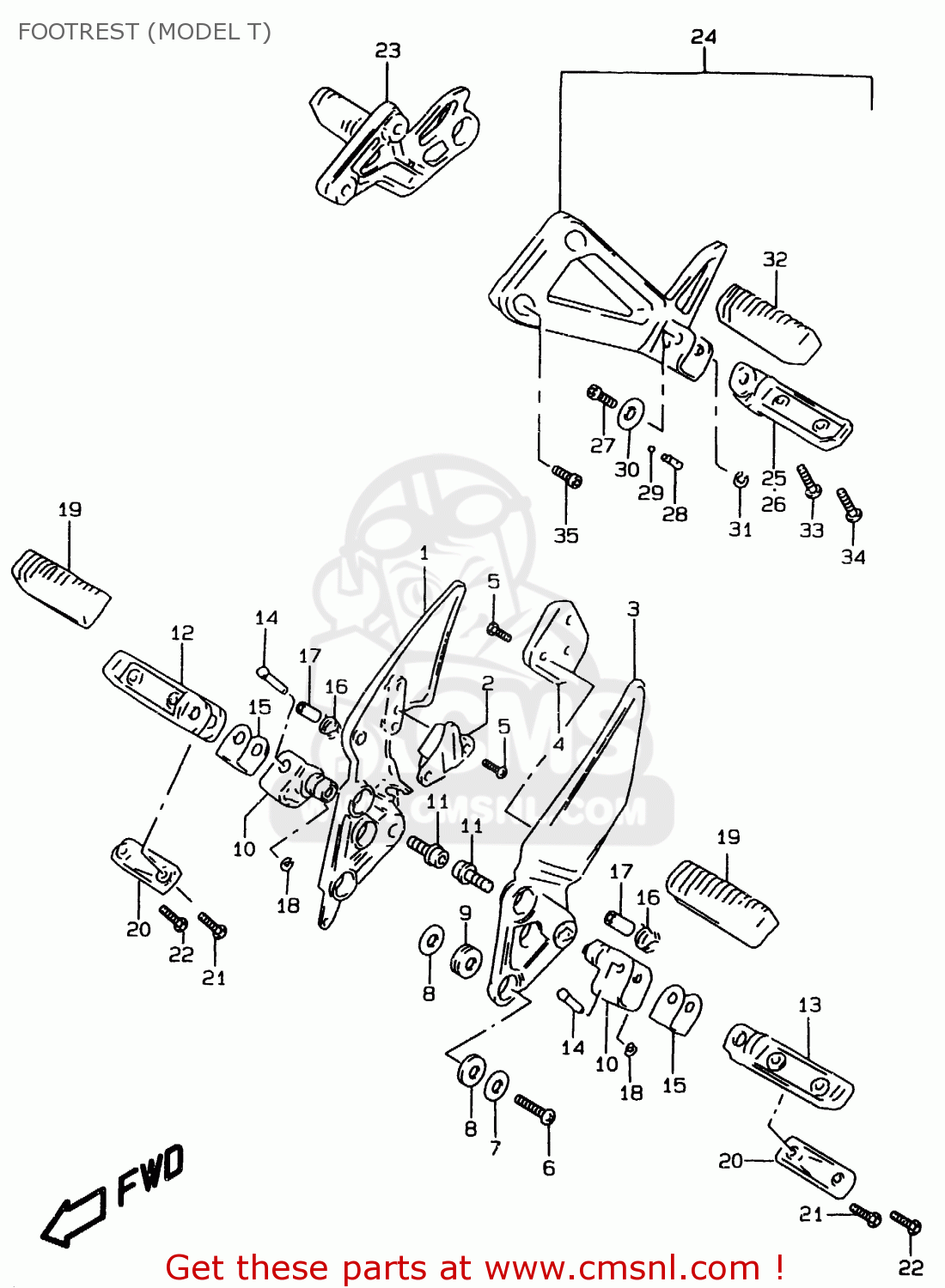

Footrest (model t) diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FOOTREST (MODEL T) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FOOTREST (MODEL T) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4351127E50
ref: 1

BRACKET,FRONT FOOTREST

€ 218.00

2

4359127E50
ref: 2

BALANCER,FOOTREST BRACKET,R

€ 21.00

3

4352127E50
ref: 3

BRACKET,FRONT FOOTREST

€ 218.00

4

4359227E50
ref: 4

BALANCER,FOOTREST BRACKET,L

€ 32.50

5

0211206123
ref: 5

SCREW

€ 1.50

6

0910608134
ref: 6

BOLT(8X28)

€ 4.00

7

0916008021
ref: 7

WASHER (8.2X24X1.6)

€ 2.00

8

0916112009
ref: 8

WASHER(12.6X24X1.9)

€ 4.50

9

0931908036
ref: 9

BUSH(12X20X16)

€ 23.50

10

4353027E00
ref: 10

HOLDER,FOOTREST

€ 56.50

11

0910610064
ref: 11

BOLT(10X28)

€ 4.50

12

4351140C00
ref: 12

BAR,FOOTREST,R

€ 37.50

13

4352140C00
ref: 13

BAR,FOOTREST,L

€ 37.50

14

0920808010
ref: 14

PIN(8X33.2)

€ 3.00

15

4357046E20
ref: 15

CUSHION,FR FOOTREST

€ 18.50

16

0944818022
ref: 16

SPRING

€ 3.50

17

0918008149
ref: 17

SPACER(8.1X12X22)

€ 7.00

18

0833211063
ref: 18

E.RING

€ 2.00

19

4355040C11
ref: 19

RUBBER,FOOTREST

€ 16.00

20

4353631E10
ref: 20

BALANCER,FR FOOTREST

€ 30.50

21

0214205303
ref: 21

SCREW

€ 2.50

22

0214205253
ref: 22

SCREW

€ 2.50

23

4360027E50
ref: 23

FOOTREST ASSY,PILLION,R

€ 266.00

24

4370027E50
ref: 24

FOOTREST ASSY,PILLION,L

€ 237.00

25

4361040C00
ref: 25

BAR,PILLION FOOTREST,R

€ 49.00

26

4362040C00
ref: 26

BAR,PILLION FOOTREST,L

€ 49.00

27

4364240C00
ref: 27

BOLT,PILLION FOOTREST

€ 5.50

28

0944005003
ref: 28

SPRING

€ 1.50

29

0611107004
ref: 29

BALL

€ 1.50

30

0916010031
ref: 30

WASHER

€ 2.50

31

0833211063
ref: 31

E.RING

€ 2.00

32

4355040C11
ref: 32

RUBBER,FOOTREST

€ 16.00

33

0214205203
ref: 33

SCREW 5X20

€ 2.00

34

0214205163
ref: 34

SCREW

€ 2.50

35

0910608097
ref: 35

BOLT(8X25)

€ 2.50
