CYLINDER HEAD

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

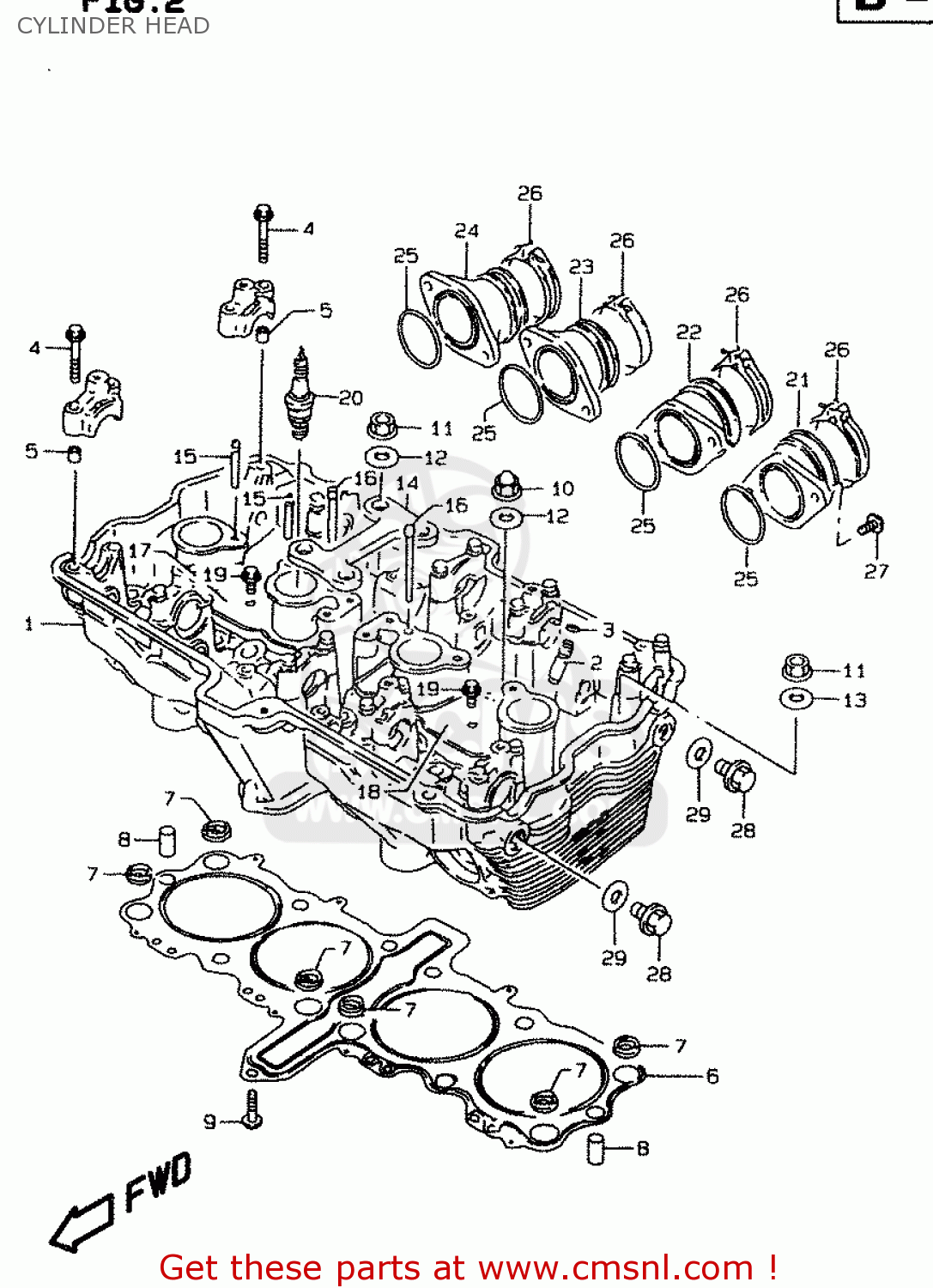

Cylinder head diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER HEAD GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER HEAD GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1110027E50
ref: 1

HEAD ASSY,CYLINDER

€ 1,817.50

1

1110027E60
ref: 1
E18

HEAD ASSY,CYLINDER

€ 1,855.50

2

1111606B70
ref: 2

GUIDE,VALVE

€ 43.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114127E00
ref: 6

GASKET,CYLINDER HEAD

€ 91.50

7

1114348B01
ref: 7

O-RING,HEAD GASKET

€ 6.00

8

0920911007
ref: 8

PIN

€ 16.00

9

0155006303
ref: 9

BOLT

€ 2.50

10

0915910069
ref: 10

NUT

€ 5.00

11

0831610103
ref: 11

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13

WASHER (10.5X22X2.3)

€ 2.50

14

1113840C10
ref: 14

PLATE,HEAD REINFORCEMENT

€ 27.00

15

1113127A00
ref: 15

PIPE,OIL NO.1

€ 6.00

16

1113327A00
ref: 16

PIPE,OIL NO.3

€ 7.00

17

1113527A02
ref: 17

PLATE,OIL PIPE,R

€ 4.00

18

1113627A02
ref: 18

PLATE,OIL PIPE,L

€ 4.00

19

0155006123
ref: 19

BOLT

€ 2.50

20

0948200389
ref: 20

PLUG,SPARK(JR9B)

€ 8.00

20

0948200391
ref: 20
OPT

PLUG,SPARK(JR10B)

€ 9.00

21

1310140C00
ref: 21

PIPE,INTAKE NO.1

€ 43.50

22

1310240C00
ref: 22

PIPE,INTAKE NO.2

€ 43.50

23

1310340C00
ref: 23

PIPE,INTAKE NO.3

€ 43.50

24

1310440C00
ref: 24

PIPE,INTAKE NO.4

€ 38.00

25

0928040010
ref: 25

O RING(D:2.4,ID:39.7)

€ 3.50

26

0940252208
ref: 26

CLAMP

€ 5.50

27

0712006163
ref: 27

BOLT MAGNETO S

€ 2.50

28

0924814010
ref: 28

PLUG

€ 5.00

28

0924814010
ref: 28

PLUG

€ 5.00

28

0924814010
ref: 28
GSF1200W/X E18

PLUG

€ 5.00

28

0924714032
ref: 28
GSF1200W/X E18

PLUG

€ 5.00

29

0916814002
ref: 29

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50
