FRAME COVER (GSF1200V/SV)

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

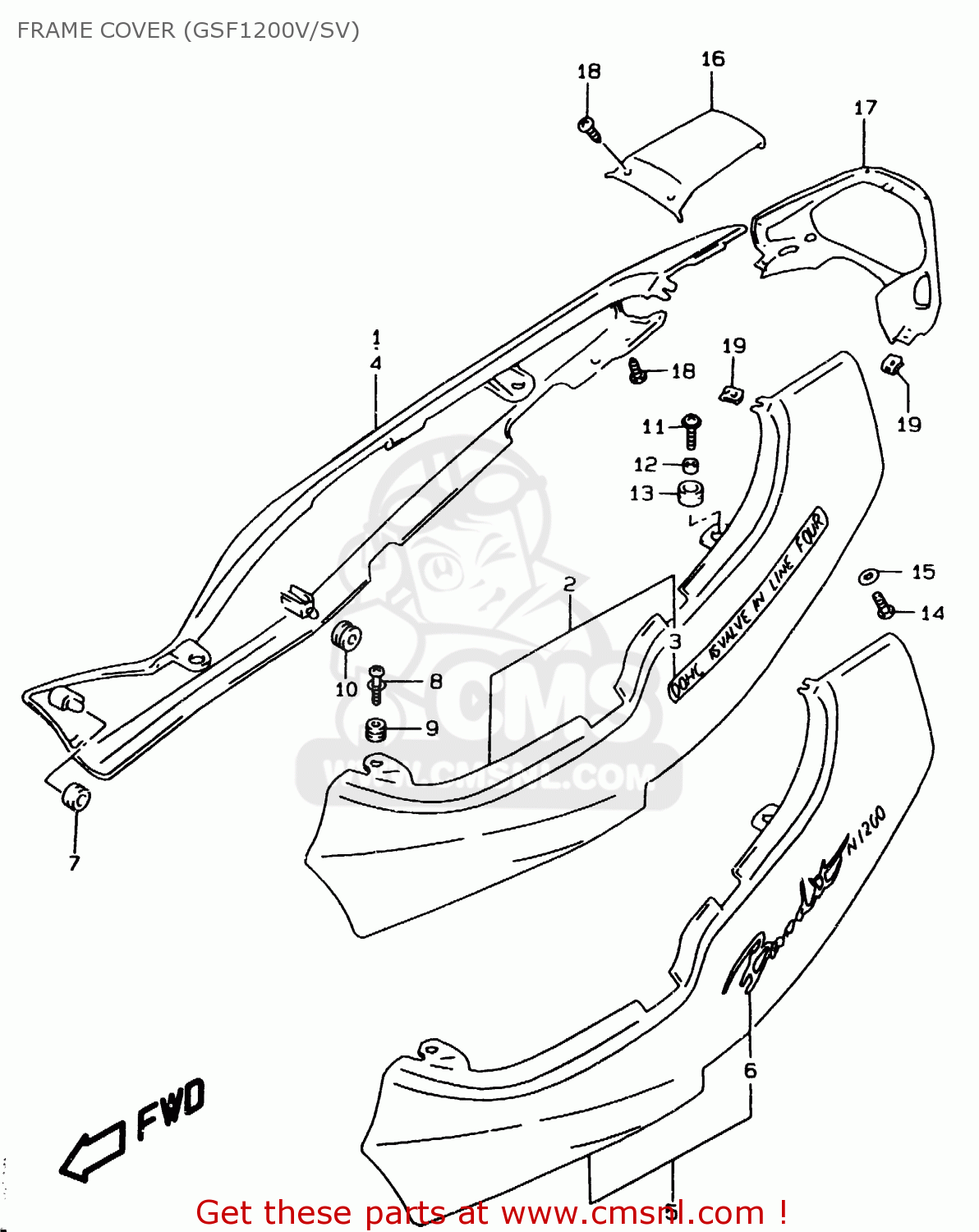

Frame cover (gsf1200v/sv) diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME COVER (GSF1200V/SV) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME COVER (GSF1200V/SV) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4711026E5022U
ref: 1
GSF1200SV

COVER,FRAME,R(MAROON)

€ 174.50

1

4711026E5033J
ref: 1
GSF1200SV

COVER,FRAME,R(BLACK)

€ 172.00

1

4711026E50Y0N
ref: 1
GSF1200SV

COVER,FRAME,R(BLUE)

€ 175.00

2

4721026E5022U
ref: 2
GSF1200SV

COVER,FRAME,L(MAROON)

€ 174.50

2

4721026E5033J
ref: 2
GSF1200SV

COVER,FRAME,L(BLACK)

€ 174.50

2

4721026E50Y0N
ref: 2
GSF1200SV

COVER,FRAME,L(BLUE)

€ 175.50

3

6813126E3024G
ref: 3

EMBLEM,FRAME COVER

€ 9.50

4

4711027E2022U
ref: 4
GSF1200V

COVER,FRAME,R(MAROON)

€ 179.50

4

4711027E2033J
ref: 4
GSF1200V

COVER,FRAME,R(BLACK)

€ 179.50

4

4711027E20Y0N
ref: 4
GSF1200V

COVER ASSY, FRAME RH (BLUE)

€ 155.00

5

4721027E2022U
ref: 5
GSF1200V

COVER,FRAME,L(MAROON)

€ 179.50

5

4721027E2033J
ref: 5
GSF1200V

COVER,FRAME,L(BLACK)

€ 156.00

5

4721027E20Y0N
ref: 5
GSF1200V

COVER,FRAME,L(BLUE)

€ 163.50

6

6813127E10F6G
ref: 6

EMBLEM,FRAME COVER

€ 26.50

7

4716121E00
ref: 7

CUSHION,FRAME COVER FR

€ 7.50

8

0940910306
ref: 8

CLIP

€ 3.00

9

0932010043
ref: 9

CUSHION

€ 5.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0913606105
ref: 11

SCREW(6X20)

€ 2.00

12

0918006286
ref: 12

SPACER(6.5X10X9.4)

€ 2.50

13

0932010045
ref: 13

CUSHION

€ 3.50

14

0214206163
ref: 14

SCREW

€ 2.50

15

0916106021
ref: 15

WASHER(6.3X16X1.5)

€ 2.50

16

4731126E0022U
ref: 16

COVER,FRAME CTR

€ 35.00

16

4731126E0033J
ref: 16

COVER,FRAME CTR

€ 38.00

16

4731126E00Y0N
ref: 16

COVER,FRAME,CENTER

€ 35.50

17

4733126E00291
ref: 17

COVER,FRAME RR

€ 52.00

18

0324115123
ref: 18

SCREW

€ 2.50

19

0914805020
ref: 19

NUT

€ 2.00
