FRAME COVER (MODEL T)

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

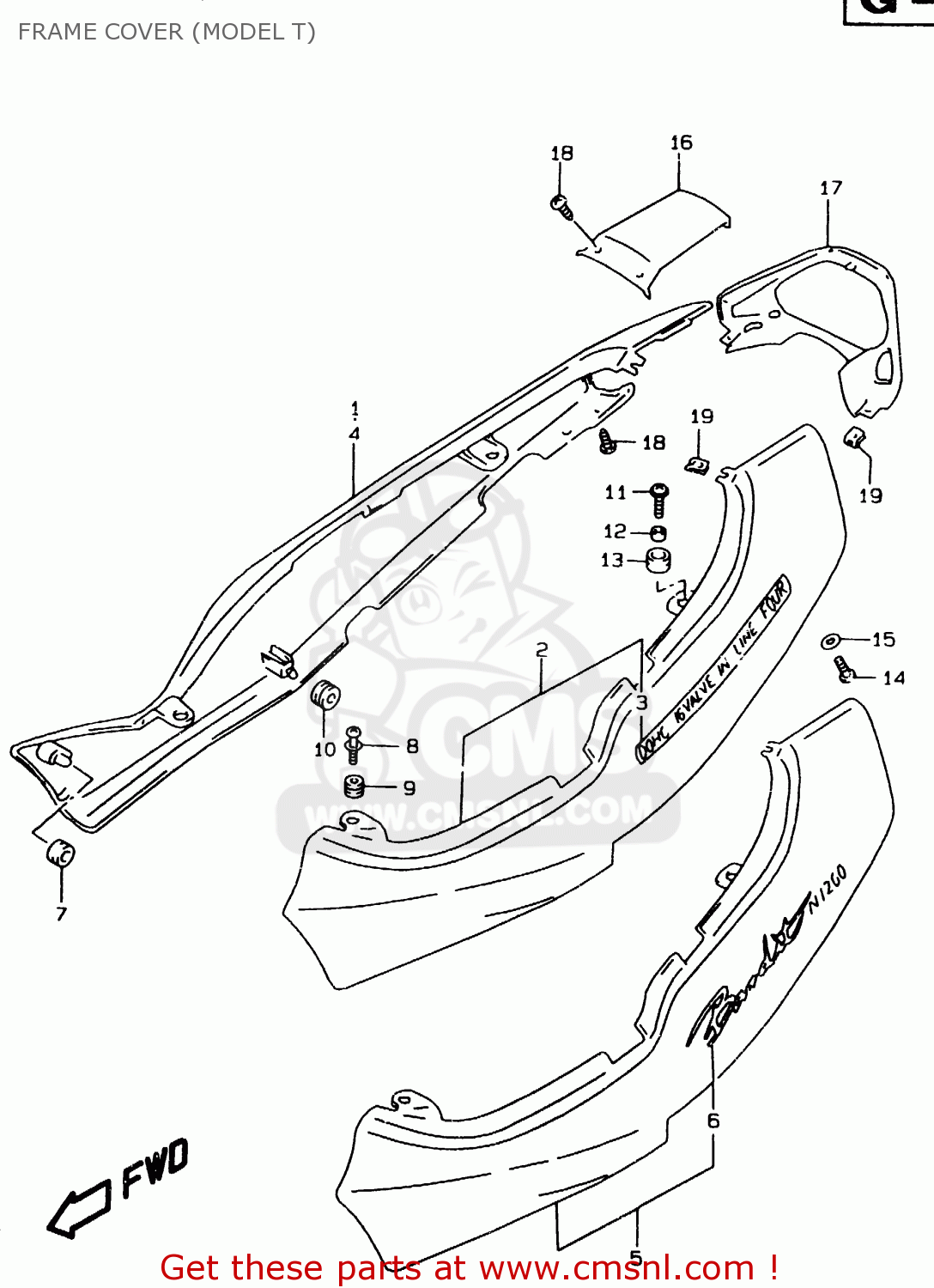

Frame cover (model t) diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME COVER (MODEL T) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME COVER (MODEL T) GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4711026E3022U
ref: 1
GSF1200ST

COVER,FRAME,R

€ 174.50

1

4711026E3033J
ref: 1
GSF1200ST

COVER COMP,FRAME,RIGHT

€ 172.00

1

4711026E30Y98
ref: 1
GSF1200ST

COVER,FRAME,R(GREEN)

€ 167.00

2

4721026E3022U
ref: 2
GSF1200ST

COVER,FRAME,L.

€ 174.50

2

4721026E3033J
ref: 2
GSF1200ST

COVER COMP,FRAME,LEFT

€ 174.50

2

4721026E30Y98
ref: 2
GSF1200ST

COVER,FRAME,L(GREEN)

€ 158.50

3

6813126E3024G
ref: 3
FOR 22U, 33J

EMBLEM,FRAME COVER

€ 9.50

3

6813126E30Z39
ref: 3
FOR Y98

EMBLEM,FRAME COVER

€ 7.00

4

4711027E2022U
ref: 4
GSF1200T

COVER,FRAME,R(MAROON)

€ 179.50

4

4711027E2033J
ref: 4
GSF1200T

COVER,FRAME,R(BLACK)

€ 179.50

4

4711027E20Y98
ref: 4
GSF1200T

COVER,FRAME,R.

€ 185.50

5

4721027E2022U
ref: 5
GSF1200T

COVER,FRAME,L(MAROON)

€ 179.50

5

4721027E2033J
ref: 5
GSF1200T

COVER,FRAME,L(BLACK)

€ 156.00

5

4721027E20Y98
ref: 5
GSF1200T

COVER,FRAME,L(GREEN)

€ 163.00

6

6813127E10F6G
ref: 6
FOR 22U, 33J

EMBLEM,FRAME COVER

€ 26.50

6

6813127E10F7F
ref: 6
FOR Y98

EMBLEM,FRAME COVER

€ 17.50

7

4716121E00
ref: 7

CUSHION,FRAME COVER FR

€ 7.50

8

0940910306
ref: 8

CLIP

€ 3.00

9

0932010043
ref: 9

CUSHION

€ 5.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0913606105
ref: 11

SCREW(6X20)

€ 2.00

12

0918006167
ref: 12

SPACER (6,8X10X9.4)

€ 2.50

13

0932010045
ref: 13

CUSHION

€ 3.50

14

0214206163
ref: 14

SCREW

€ 2.50

15

0916106021
ref: 15

WASHER(6.3X16X1.5)

€ 2.50

16

4731126E0022U
ref: 16

COVER,FRAME CTR

€ 35.00

16

4731126E0033J
ref: 16

COVER,FRAME CTR

€ 38.00

16

4731126E00Y98
ref: 16

COVER,FRAME CTR

€ 37.00

17

4733126E00291
ref: 17

COVER,FRAME RR

€ 52.00

18

0324115123
ref: 18

SCREW

€ 2.50

19

0914805020
ref: 19

NUT

€ 2.00
