HORN/HANDLE SWITCH

GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

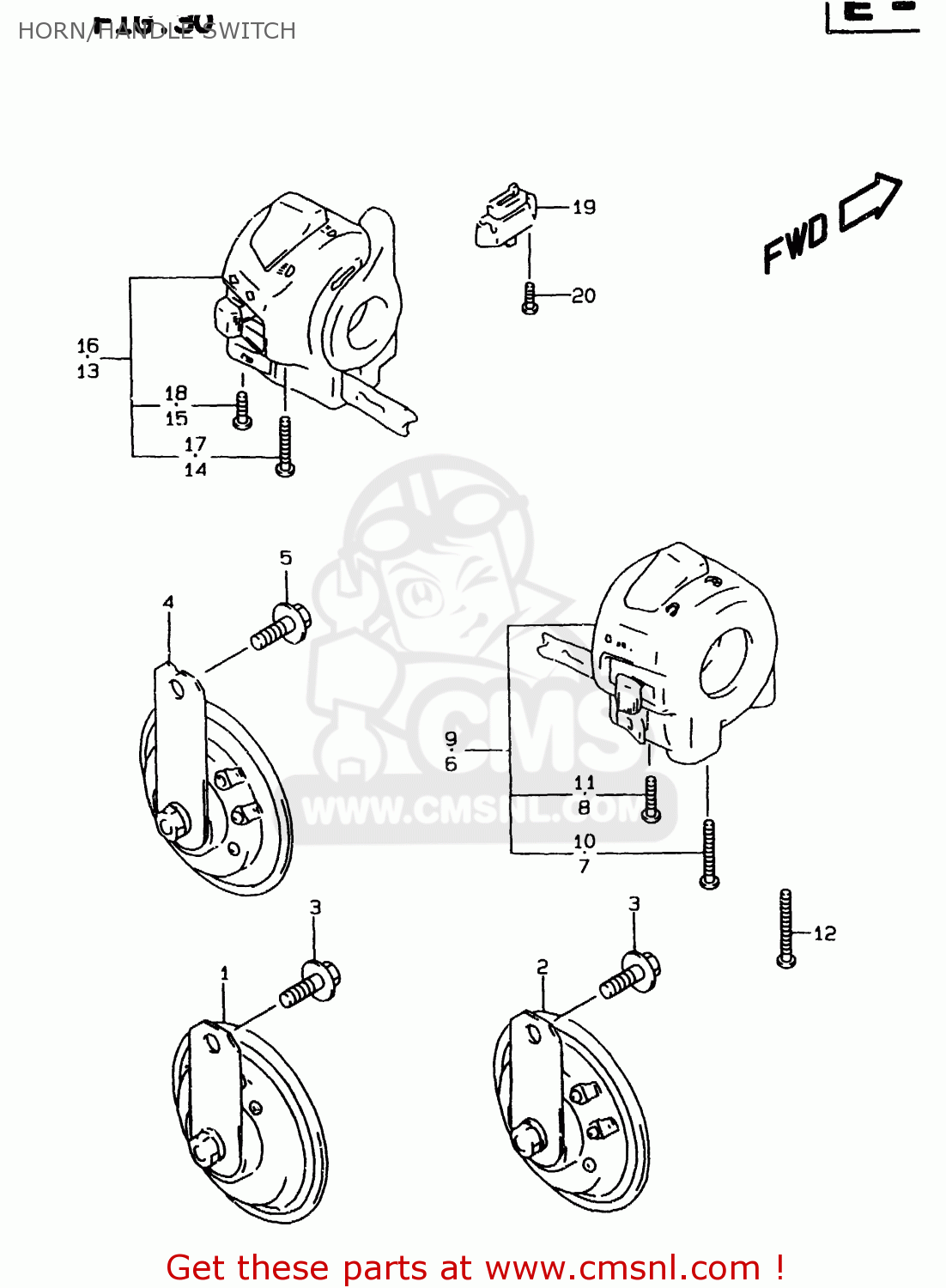

Horn/handle switch diagram GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

HORN/HANDLE SWITCH GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

HORN/HANDLE SWITCH GSF1200S 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3850020E10
ref: 1
GSF1200T/V/W/X

HORN ASSY

€ 75.50

2

3850127E00
ref: 2
GSF1200T/V/W/X

HORN ASSY,HIGH PITCHED

€ 69.00

3

0155008123
ref: 3
GSF1200T/V/W/X

BOLT

€ 3.50

4

3850221E02
ref: 4
GSF1200ST/SV/SW/SX/S

HORN ASSY

€ 63.50

5

0155008123
ref: 5
GSF1200ST/SV/SW/SX/S

BOLT

€ 3.50

6

3720027E11
ref: 6
GSF1200T/V/W/X

SWITCH ASSY,HANDLE,R

€ 176.00

6

3720033E11
ref: 6
GSF1200ST/SV/SW/SX/S

SWITCH,HANDLE,

€ 174.50

7

0211205503
ref: 7

SCREW

€ 2.00

8

0211205303
ref: 8

SCREW

€ 1.50

9

3720027E31
ref: 9
E24

SWITCH ASSY,HANDLE,R

€ 165.00

10

0211205503
ref: 10

SCREW

€ 2.00

11

0211205303
ref: 11

SCREW

€ 1.50

12

0211205103
ref: 12

SCREW

€ 2.00

13

3740023E10
ref: 13
GSF1200T/V/W/X

SWITCH ASSY,HANDLE,L

€ 223.50

14

0211205503
ref: 14

SCREW

€ 2.00

15

0211205253
ref: 15

SCREW

€ 1.50

16

3740026E11
ref: 16
GSF1200ST/SV/SW/SX/S

SWITCH ASSY,HANDLE,L

€ 230.00

17

0211205503
ref: 17

SCREW

€ 2.00

18

0211205253
ref: 18

SCREW

€ 1.50

19

3756038A00
ref: 19

SWITCH ASSY,CLUTCH

€ 20.00

20

3756426E00
ref: 20

SCREW

€ 3.00

all assemblies
