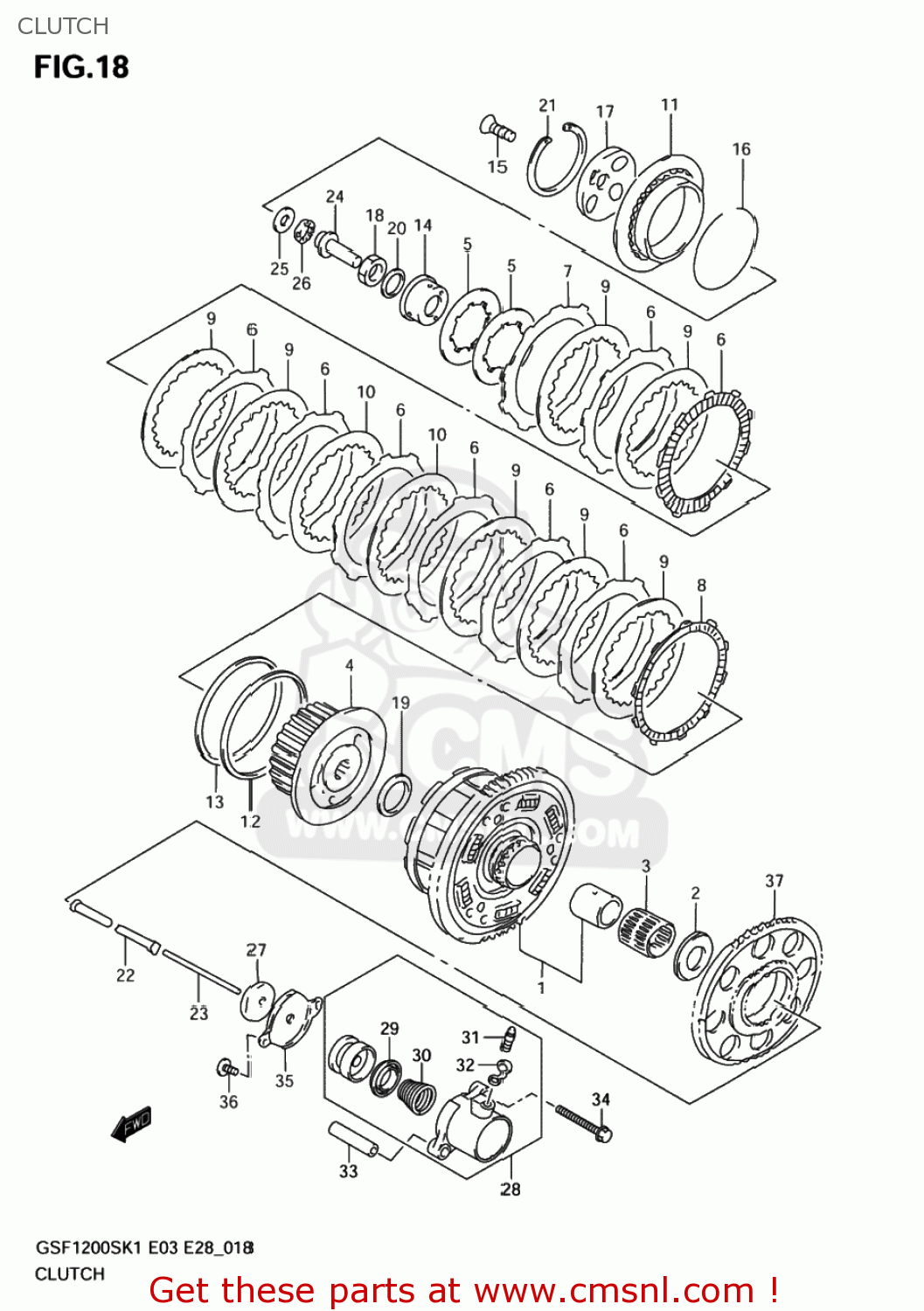

CLUTCH

ref

part #

description

quantity

1

2120031861
ref: 1

GEAR ASSY,PRI DRIVEN

€ 517.00

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141031E50
ref: 4

HUB,CLUTCH SLEEVE

€ 140.50

5

0916447001
ref: 5

WASHER

€ 9.00

6

2144131E70
ref: 6

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 21.00

7

2144131E60
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 13.50

8

2144231E21
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 19.00

9

2145131E00
ref: 9

PLATE,CLUTCH DRIVEN NO.1

€ 7.00

10

2145131E10
ref: 10

PLATE,CLUTCH DRIVEN NO.2

€ 7.50

11

2146231E20
ref: 11

DISC,CLUTCH PRESSURE

€ 58.00

12

2147131E20
ref: 12

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

13

2147202F00
ref: 13

WASHER,CLUTCH PLATE WAVE

€ 18.00

14

2161131E30
ref: 14

HOLDER,CLUTCH SPRING

€ 36.00

15

2161431E20
ref: 15

SCREW,CLUTCH SPRING HOLDER

€ 3.50

16

2162331E20
ref: 16

SEAT,CLUTCH SPRING

€ 5.50

17

2146340C01
ref: 17

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

18

0915924010
ref: 18

NUT

€ 11.00

19

0916025056
ref: 19

WASHER(25X50X2.5)

€ 9.50

20

0916424006
ref: 20

WASHER

€ 4.00

21

0938184003
ref: 21

CIRCLIP

€ 10.50

22

2311038B00
ref: 22

ROD,CLUTCH PUSH,R

€ 19.00

23

2311131301
ref: 23

ROD,CLUTCH PUSH,L

€ 14.50

24

2312131E00
ref: 24

PIECE,CLUTCH PUSH

€ 18.50

25

0916015045
ref: 25

WASHER(15.5X28X1)

€ 4.00

26

0926315003
ref: 26

BEARING(15X28X2)

€ 7.00

27

0928506015
ref: 27

SEAL,OIL(6X34X5.5)

€ 8.50

28

2316008A02
ref: 28

CYLINDER,CLUTCH RELEASE

€ 129.00

29

2316305A00
ref: 29

CUP,CLUTCH CYLINDER

€ 7.50

30

2316405A00
ref: 30

SPRING,CLUTCH CYLINDER

€ 3.50

31

5912101A00
ref: 31

BLEEDER

€ 8.50

32

5912201A00
ref: 32

CAP,BLEEDER

€ 4.50

33

0421109129
ref: 33

PIN

€ 2.00

34-1

0713006253
ref: 34-1
07130-0625B

BOLT,CL.COVER

€ 3.00

34-2

0910606090
ref: 34-2

BOLT(6X25)

€ 2.50

35

2311746E00
ref: 35

COVER,CLUTCH RELEASE CYLINDER

€ 6.50

36

0211206103
ref: 36
02112-0610B

SCREW

€ 1.50

37

2272127A03
ref: 37

GEAR,GENERATOR DRIVE

€ 230.00
