WIRING HARNESS (GSF1200K1/K2/K3)

GSF1200S BANDIT 2005 (K5) USA (E03)

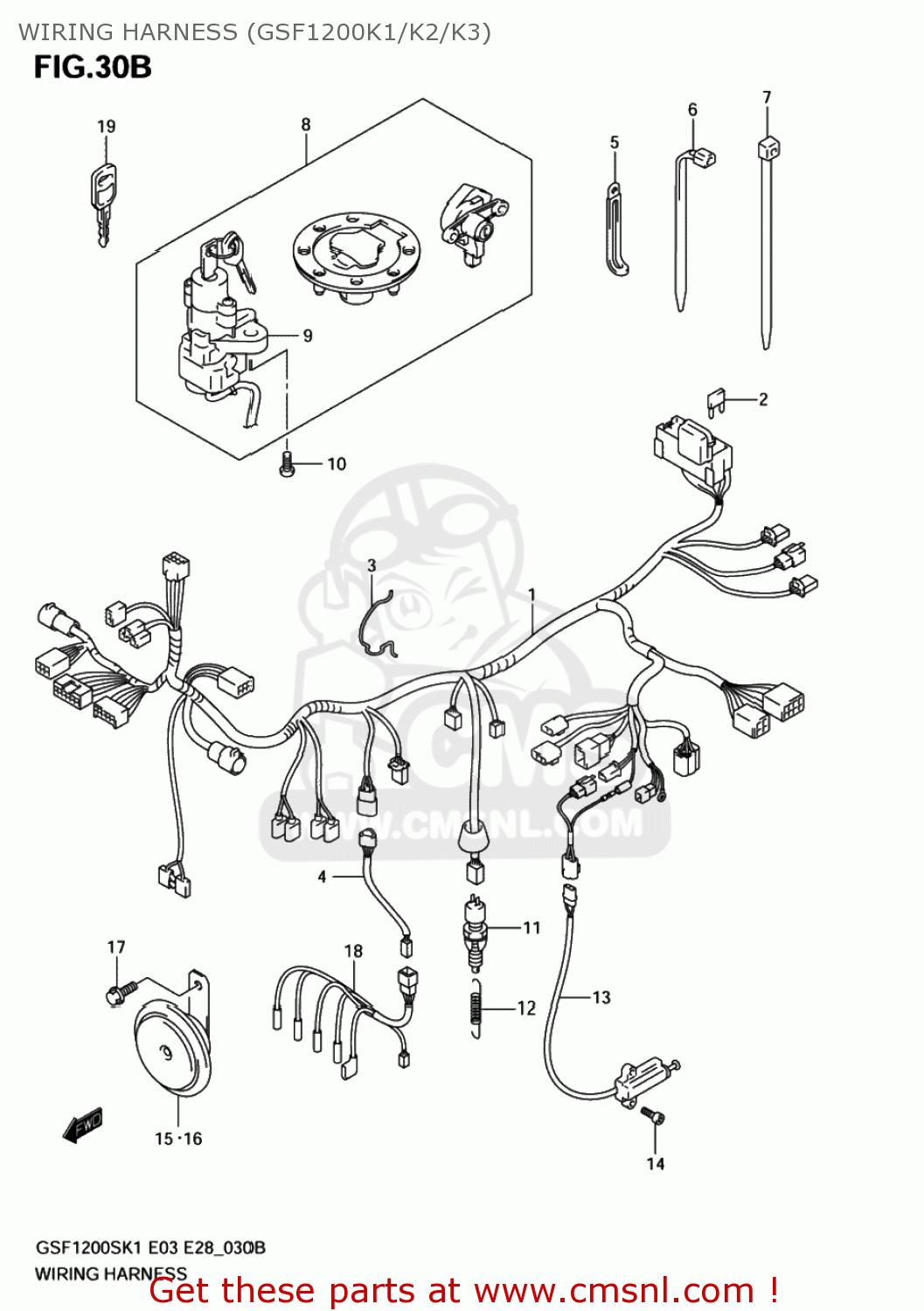

Wiring harness (gsf1200k1/k2/k3) diagram GSF1200S BANDIT 2005 (K5) USA (E03)

WIRING HARNESS (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)

WIRING HARNESS (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3661031F20
ref: 1-1

HARNESS,WIRING

€ 407.50

1-2

3661031FC0
ref: 1-2

HARNESS,WIRING

€ 401.50

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661931F20
ref: 3

GUIDE,WIRING HARNESS

€ 8.50

4

3685331F00
ref: 4

WIRE,TPS LEAD

€ 25.50

5-1

0940406432
ref: 5-1

CLAMP(L:65)

€ 2.50

5-2

0940406433
ref: 5-2

CLAMP(L:80)

€ 3.00

5-3

0940408207
ref: 5-3

CLAMP(L:80)

€ 3.00

6-1

0940714403
ref: 6-1

CLAMP(L:125)

€ 2.50

6-2

0940718402
ref: 6-2

CLAMP(L:165)

€ 2.50

6-3

0940711402
ref: 6-3

CLAMP(L:90)

€ 2.50

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00

8-1

3710433850
ref: 8-1
37103-33890

LOCK SET

€ 543.00

8-2

3710433890
ref: 8-2
37104-33810

LOCK SET

€ 309.00

9

3710033E60
ref: 9
37100-33E20

LOCK ASSY,STEE

€ 223.50

10

0913908016
ref: 10

BOLT(8X20)

€ 3.50

11

3774024A00
ref: 11

SWITCH ASSY,STOP LAMP

€ 20.50

12

0944306054
ref: 12

SPRING

€ 2.50

13

3784044X50
ref: 13

SWITCH ASSY,SIDE STAND

€ 75.50

14

0712006203
ref: 14
07120-0620B

BOLT

€ 3.50

15

3850020E00
ref: 15

HORN ASSY,LOW PITCHED

€ 50.00

16

3850127E00
ref: 16

HORN ASSY,HIGH PITCHED

€ 69.00

17

0155008123
ref: 17
01550-0812A

BOLT

€ 3.50

18

3685621E00
ref: 18

WIRE,CARB HEATER LEAD

€ 79.50

19

3714633E00
ref: 19

KEY,BLANK

€ 13.00
