Buy Suzuki GSF Parts Online


OIL PUMP

GSF1200S BANDIT 2005 (K5) USA (E03)

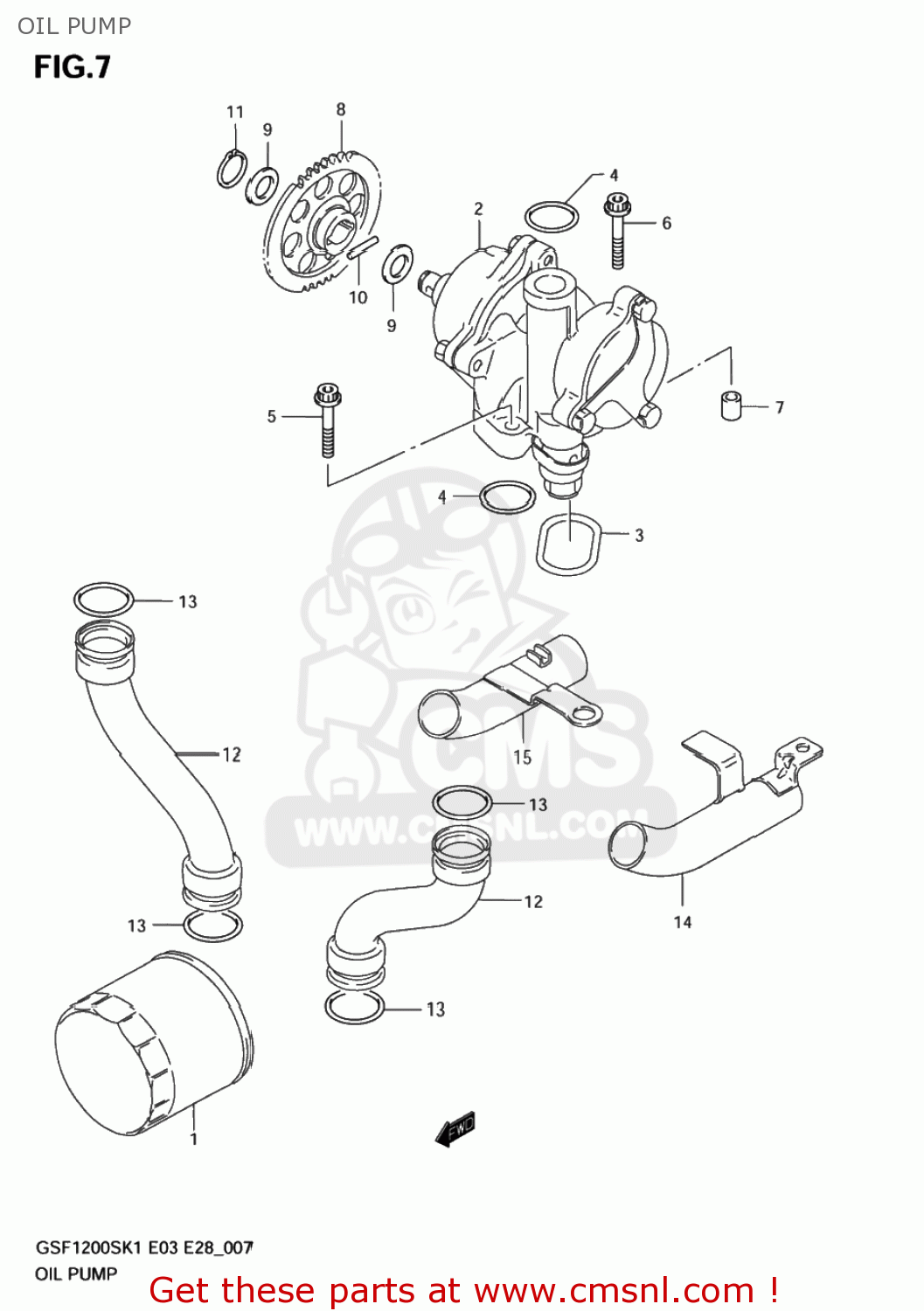

Oil pump diagram GSF1200S BANDIT 2005 (K5) USA (E03)

OIL PUMP GSF1200S BANDIT 2005 (K5) USA (E03)
OIL PUMP GSF1200S BANDIT 2005 (K5) USA (E03)
OIL PUMP GSF1200S BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1651034E00
ref: 1-1
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
1-2
1651003G00X07
ref: 1-2
16510-07J00
FILTER ASSY,EN
1651003G00X07
€ 12.50
2-1
1640006B30
ref: 2-1
16400-06B31
PUMP ASSY,OIL
€ 382.50
2-2
1640006B31
ref: 2-2
PUMP ASSY,OIL
1640006B31
€ 382.50
3
1649127A01
ref: 3
O RING,OIL PUMP
1649127A01
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
5
0910606089
ref: 5
BOLT(6X30)
0910606089
€ 4.00
6
0910606088
ref: 6
BOLT(6X35)
€ 2.50
7
0421109149
ref: 7
PIN
0421109149
€ 2.00
8
1633219C00
ref: 8
GEAR,OIL PUMP DRIVEN(NT:37)
1633219C00
€ 60.00
9
0822112205
ref: 9
SHIM
0822112205
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
0926105006
€ 1.50
11
0833131126
ref: 11
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
12
1648148B01
ref: 12
PIPE,OIL OUTLET
1648148B01
€ 46.00
13
0928022016
ref: 13
O RING(D:3.7,ID:21.7)
0928022016
€ 5.50
14
1653027A02
ref: 14
PIPE,OIL OUTLET UNDER,L
1653027A02
€ 22.00
15
1654027A02
ref: 15
PIPE,OIL OUTLET UNDER,R
1654027A02
€ 23.00
