FRONT MASTER CYLINDER (GSF1200K1/K2/K3)

GSF1200S BANDIT 2005 (K5) USA (E03)

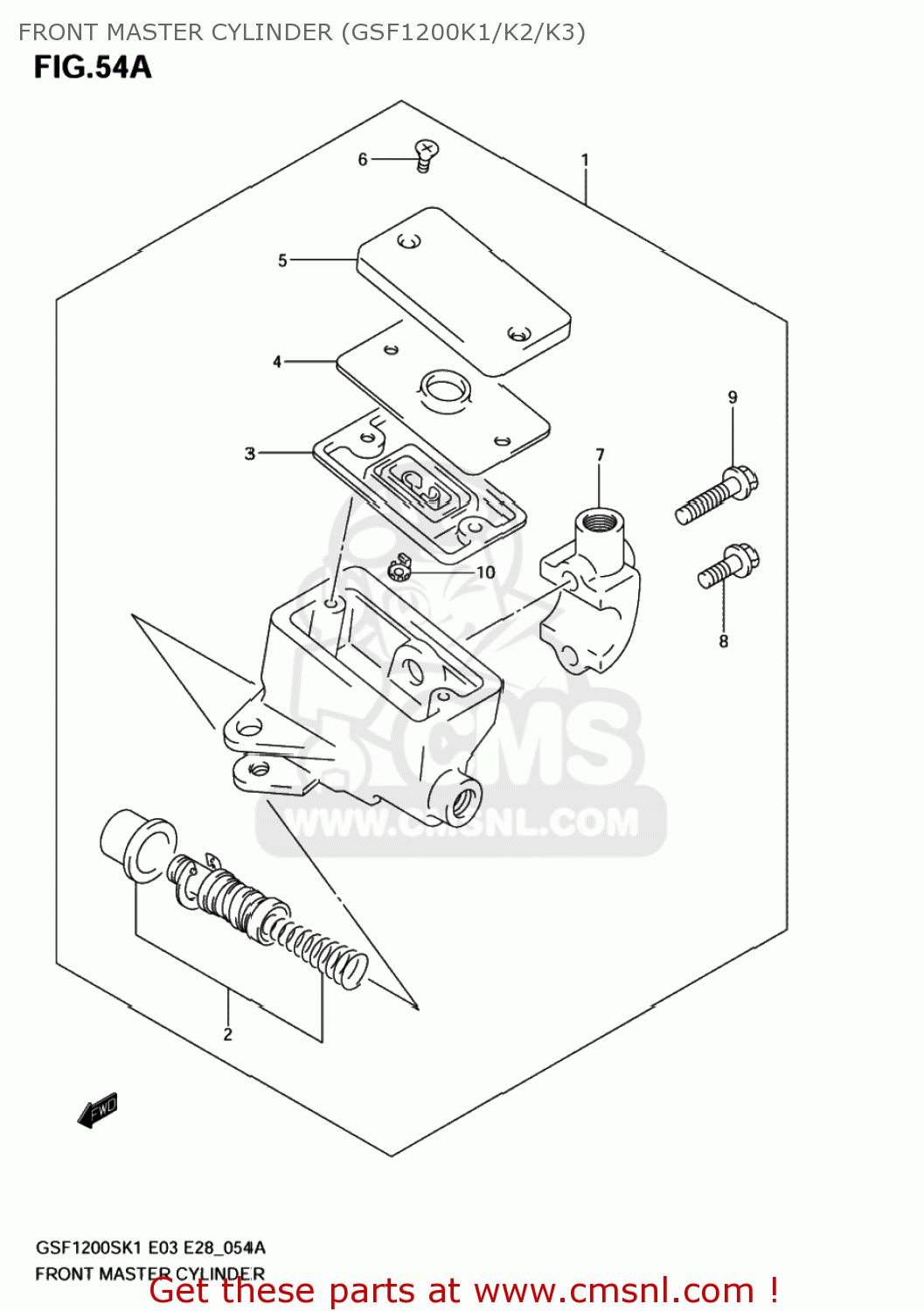

Front master cylinder (gsf1200k1/k2/k3) diagram GSF1200S BANDIT 2005 (K5) USA (E03)

FRONT MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
FRONT MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
FRONT MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5960020C20
ref: 1
CYLINDER ASSY,FR MASTER
5960020C20
€ 271.00
2
5960045860
ref: 2
PISTON & CUP SET
5960045860
€ 44.00
3
5966749460
ref: 3
5966749460
4
5966841C00
ref: 4
PLATE,DIAPHRAGM
5966841C00
€ 8.00
5
5966941C00
ref: 5
CAP
5966941C00
€ 30.00
6
6968949300
ref: 6
SCREW
6968949300
€ 1.50
7
5967144300
ref: 7
HOLDER
5967144300
€ 14.50
8
5967519C00
ref: 8
BOLT(6X25)
5967519C00
€ 3.00
9
5967519C10
ref: 9
BOLT(6X38)
5967519C10
€ 4.00
10
5966448B00
ref: 10
PROTECTOR
5966448B00
€ 8.00
