HEADLAMP (GSF1200K1/K2/K3)

GSF1200S BANDIT 2005 (K5) USA (E03)

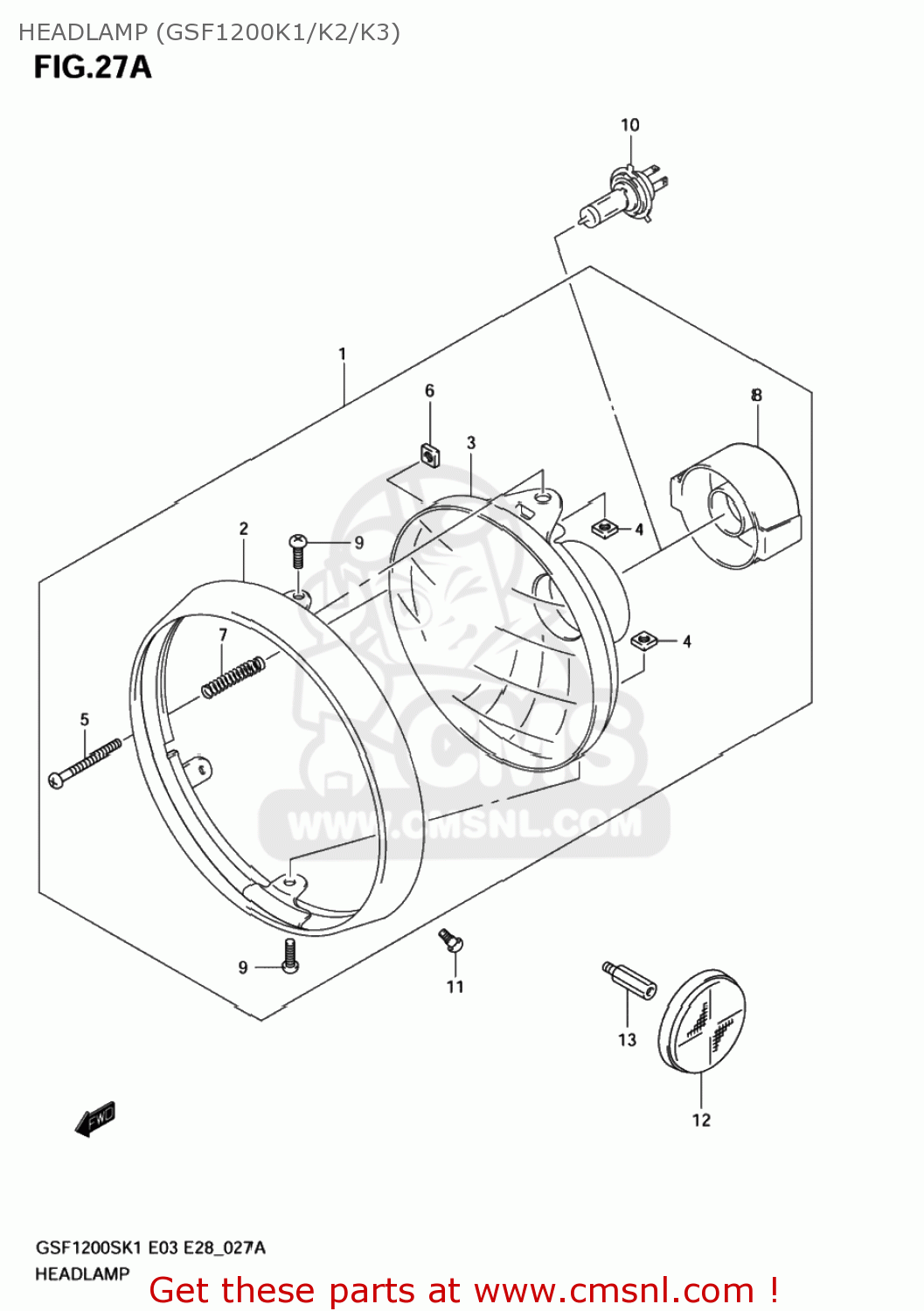

Headlamp (gsf1200k1/k2/k3) diagram GSF1200S BANDIT 2005 (K5) USA (E03)

HEADLAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
HEADLAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
HEADLAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510019F00999
ref: 1
HEADLAMP ASSY
3510019F00999
€ 244.00
2
3511119F00
ref: 2
RIM
3511119F00
€ 46.50
3
3512119F00
ref: 3
LAMP UNIT
3512119F00
€ 150.00
4
3513545900
ref: 4
NUT
3513545900
€ 2.50
5
3515119F00
ref: 5
SCREW,ADJUSTING
3515119F00
€ 2.50
6
3515245600
ref: 6
NUT,HEADLAMP ADJUST
3515245600
€ 3.00
7
3515413F00
ref: 7
SPRING
3515413F00
€ 2.00
8
3517419F00
ref: 8
COVER,SOCKET
3517419F00
€ 19.00
9
3518119F00
ref: 9
SCREW(5X16)
3518119F00
€ 2.00
10
0947112185
ref: 10
09471-12060
BULB(12V60/55W,H4)
0947112185
€ 8.00
11
0913905038
ref: 11
SCREW(5X15.3)
0913905038
€ 2.00
12
3595014A00
ref: 12
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
13-1
3595905900
ref: 13-1
09119-05023
BOLT,FRONT SIDE,REAR
€ 7.50
13-2
0911905023
ref: 13-2
BOLT(5X10)
0911905023
€ 7.50
