HANDLE LEVER
GSF1200S BANDIT 2005 (K5) USA (E03)

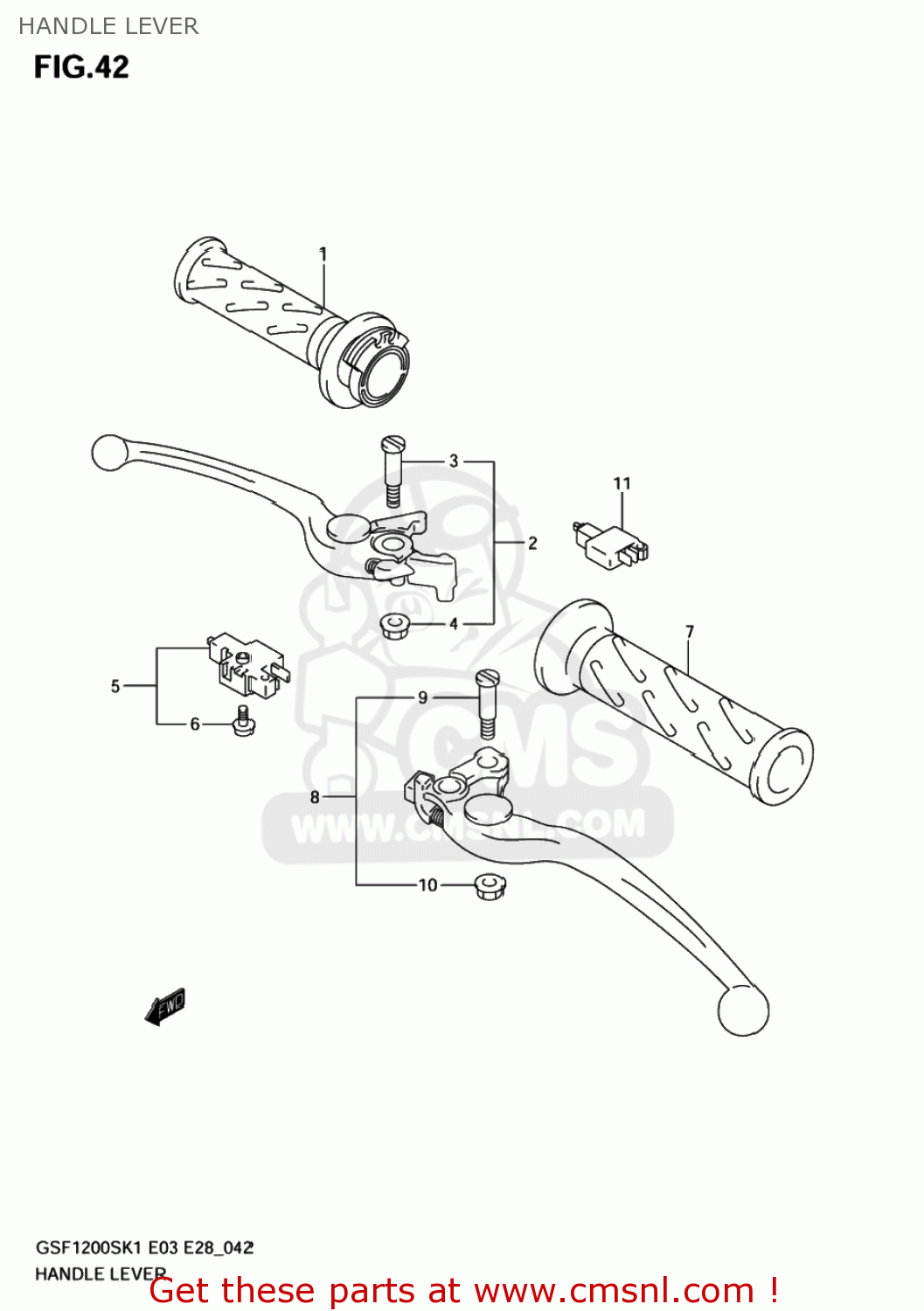

Handle lever diagram GSF1200S BANDIT 2005 (K5) USA (E03)
HANDLE LEVER GSF1200S BANDIT 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711046E01
ref: 1
GRIP,THROTTLE
€ 26.00
2
5730033E01
ref: 2
LEVER ASSY,BRAKE
€ 44.00
3
5743117C00
ref: 3
BOLT,LEVER PIVOT
€ 8.00
4
0831610063
ref: 4
08316-1006B
NUT
€ 2.50
5-1
5746017C00
ref: 5-1
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
5-2
5746017C11
ref: 5-2
57460-14J01
SWITCH ASSY,ST
€ 32.50
6
5746517C00
ref: 6
SCREW
€ 1.50
7
5721122D01
ref: 7
57211-22D01-291
GRIP,LEFT
€ 11.50
8
5750024F00
ref: 8
57500-24F01
LEVER ASSEMBLY,CLUTCH
€ 78.00
9
5743117C00
ref: 9
BOLT,LEVER PIVOT
€ 8.00
10
0831610063
ref: 10
08316-1006B
NUT
€ 2.50
11
5756002FA0
ref: 11
SWITCH ASSY,CLUTCH
€ 22.00
