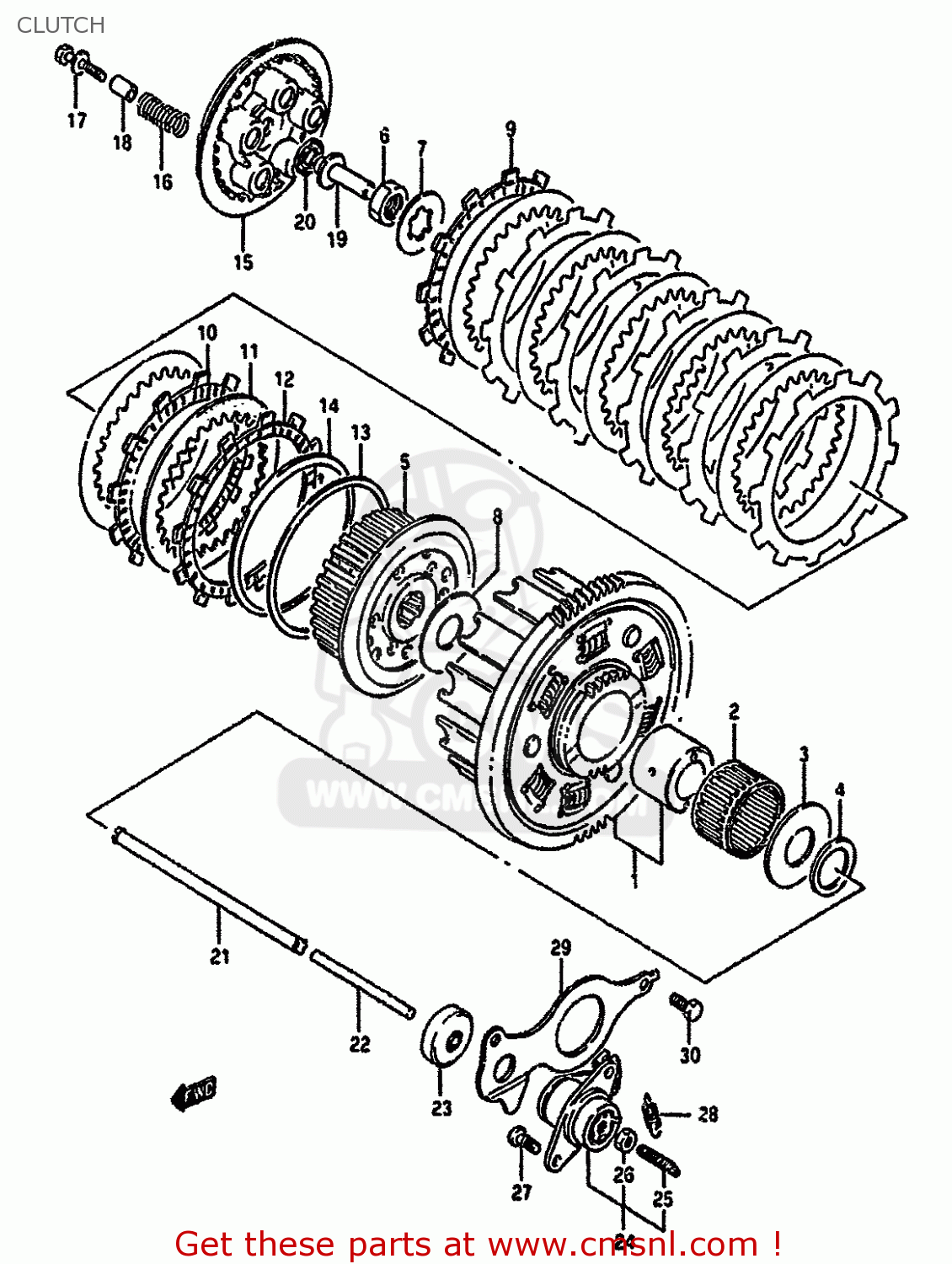

CLUTCH

ref

part #

description

quantity

1-1

2120034841
ref: 1-1
MODEL M

GEAR ASSEMBLY,PRIMARY DRIVE

€ 279.50

1-2

2120034843
ref: 1-2
MODEL N/P

GEAR ASSY,PRI DRIVEN

€ 279.50

2

0926337001
ref: 2

BEARING(37X42X27)

€ 22.50

3

0916022045
ref: 3

WASHER,22X50X2.5

€ 6.00

4

0916022032
ref: 4

WASHER(22X32X3)

€ 4.00

5

2141030B03
ref: 5

HUB,CLUTCH SLEEVE

€ 49.50

6

0914020006
ref: 6

NUT

€ 4.00

7

0916720006
ref: 7

WASHER,LOCK

€ 3.00

8

0916020051
ref: 8

WASHER(20X50X2)

€ 8.50

9

2144113A01
ref: 9

PLATE,CLUTCH DRIVE(T:3.0) (NAS)

€ 8.50

10

2144132C50
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 18.00

11

2145119A00
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

12

2144232C01
ref: 12

PLATE,CLUTCH DRIVE (NAS)

€ 11.50

13

2147132C00
ref: 13

SEAT,WAVE WASHER

€ 10.50

14

0916494001
ref: 14

WASHER

€ 10.00

15

2146204A00
ref: 15

DISC,CLUTCH PRESSURE

€ 48.00

16

0944015021
ref: 16

SPRING

€ 4.50

17

0911605015
ref: 17

BOLT(5X40)

€ 3.00

18

0918005034
ref: 18

SPACER (5.5X9.5X22)

€ 4.00

19

2312139101
ref: 19

PIECE,CLUTCH PUSH

€ 14.00

20

0926310002
ref: 20

BEARING(10X22X2.8)

€ 8.50

21

2311032C50
ref: 21
-23110-33400

ROD,CLUTCH PUSH

€ 25.00

22

2311108A00
ref: 22

ROD,CLUTCH PUSH,L

€ 15.50

23

0928506018
ref: 23

SEAL,OIL(6X34X7.5)

€ 12.00

24

2320032C00
ref: 24

SCREW ASSY,CLUTCH RELEASE

€ 73.00

25

0913406010
ref: 25

SCREW(6X25)

€ 3.00

26

0831022067
ref: 26

NUT 6MM

€ 2.50

27

0211206128
ref: 27

SCREW 6X12

€ 2.00

28

0944309044
ref: 28

SPRING

€ 3.50

29

2311730B01
ref: 29

PLATE,CLUTCH PUSH ROD

€ 7.00

30

0110706128
ref: 30

BOLT

€ 2.00

all assemblies
