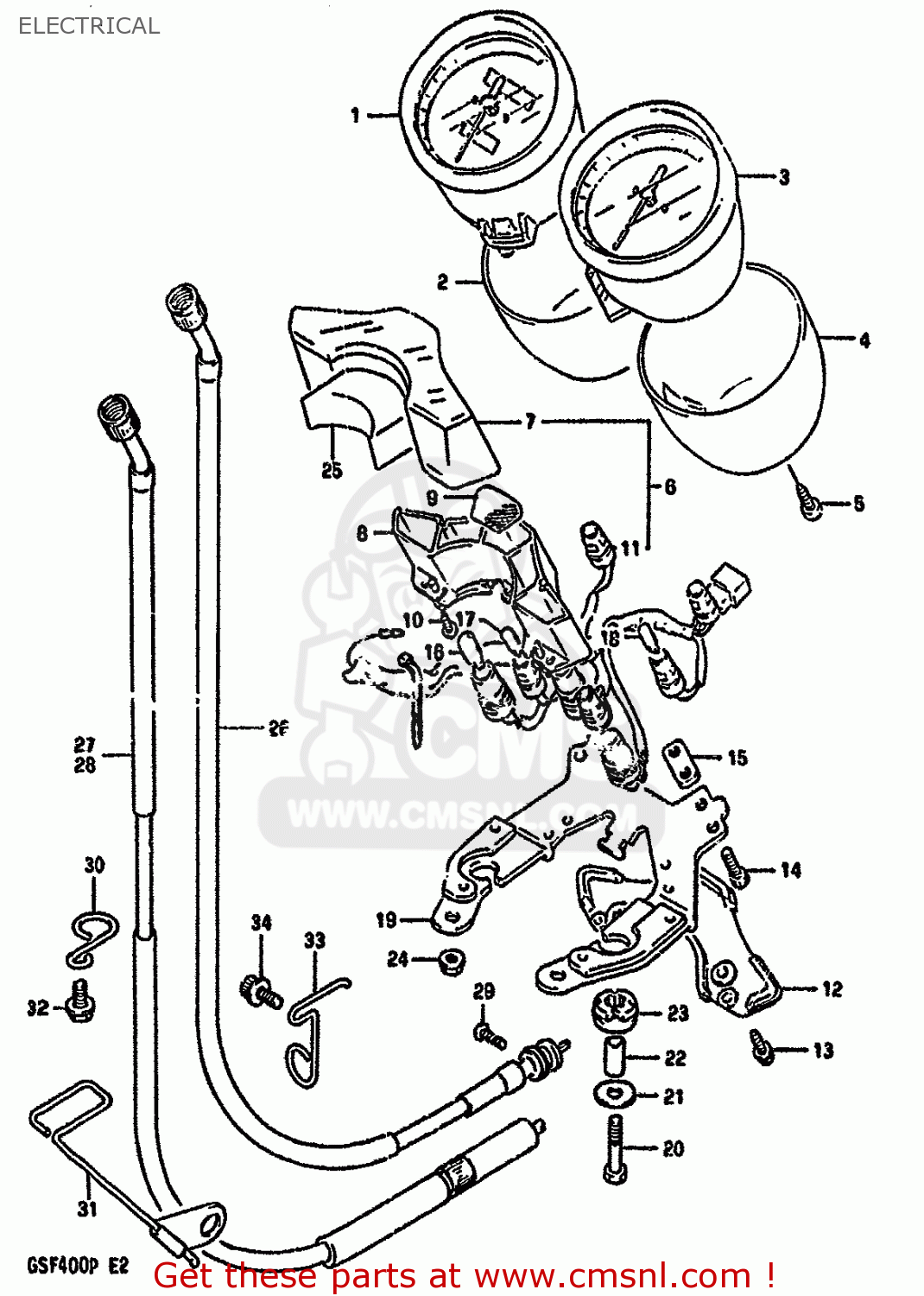

ELECTRICAL

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0912806004
ref: 2

SCREW(6X10)

€ 1.50

3

0836135066
ref: 3

NUT

€ 2.00

4-1

3385010D00
ref: 4-1
MODEL M

WIRE,STARTER MOTOR LEAD

€ 34.50

4-2

3385010D01
ref: 4-2
MODEL N/P

WIRE,STARTER MOTOR LEAD

€ 34.50

5

3186106C00
ref: 5

CAP,STARTER MOTOR TERMINAL

€ 3.00

6

3186110D10
ref: 6

CAP,STARTER RELAY

€ 6.50

7-1

3280030B01
ref: 7-1
MODEL M/N

RECTIFIER ASSY

€ 368.00

7-2

3280033C00
ref: 7-2
MODEL P

RECTIFIER ASSEMBLY

€ 368.00

8

0215206205
ref: 8

SCREW

€ 2.00

9

4156010D00
ref: 9

BRACKET,RECTIFIER

€ 22.50

10

0151706128
ref: 10

BOLT

€ 2.50

11

3285110D00
ref: 11

PROTECTOR(12X40)

€ 4.50

12

3341010D00
ref: 12

COIL ASSEMBLY,IGNITION

€ 192.50

13

3342034C00
ref: 13

COIL ASSY,IGNITION 2-3

€ 147.50

14

0117406356
ref: 14

BOLT

€ 3.50

15

0918006198
ref: 15

SPACER(6.2X12X16)

€ 3.50

16

3351048B10
ref: 16

CAP,SPARK PLUG

€ 29.50

17

3354127A22
ref: 17

SEAL,SPARK PLUG

€ 7.00

18

3354238B00
ref: 18

SEAL,HIGH TENSION CORD

€ 4.50

19

3354332C00
ref: 19

COVER,SPARK PLUG CAP

€ 26.50

20

0940306307
ref: 20
MODEL M

CLAMP

€ 4.50

all assemblies
