SIGNAL GENERATOR

GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

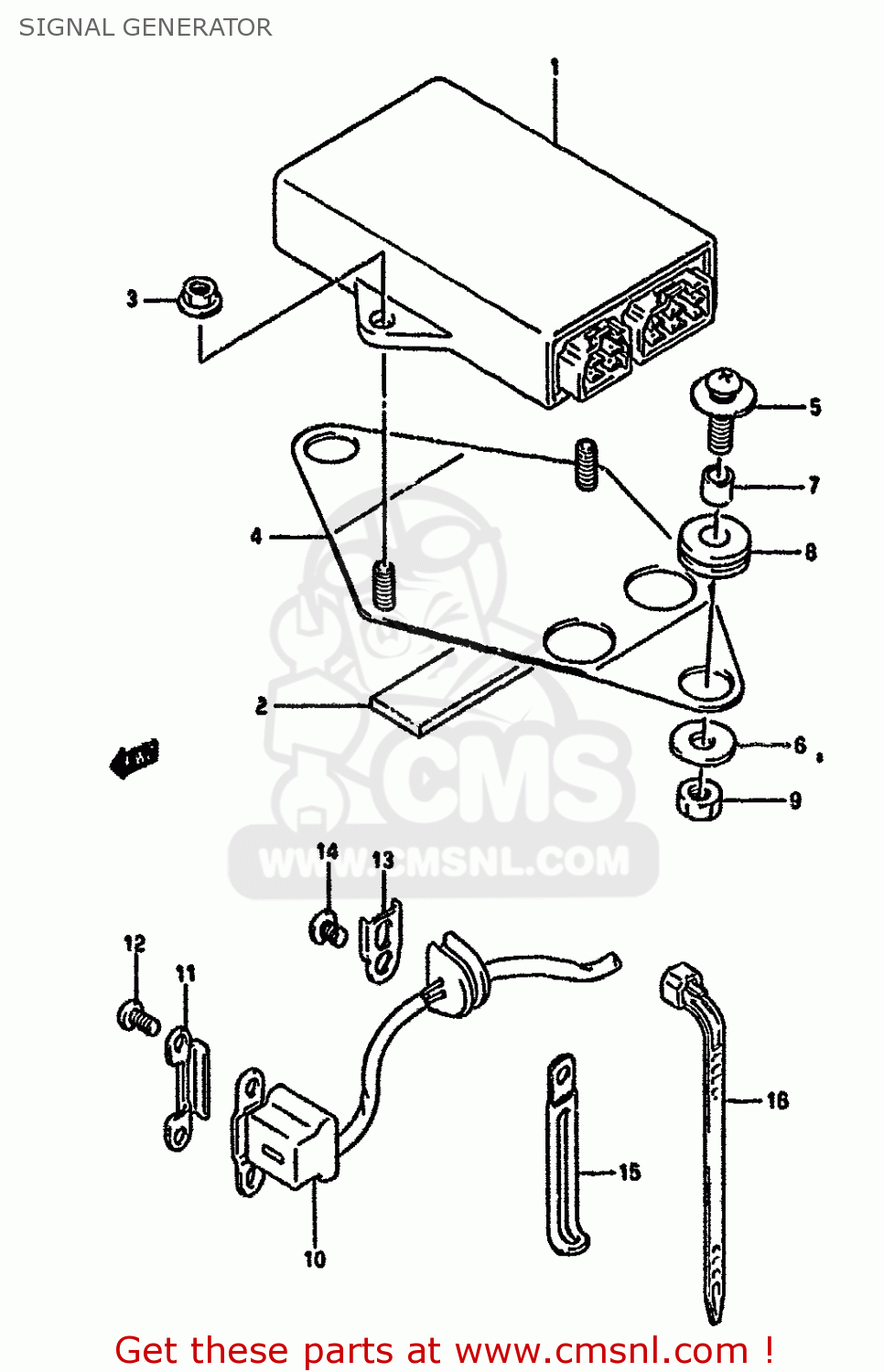

Signal generator diagram GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3290010D00
ref: 1-1
MODEL M/N

IGNITOR

€ 709.50

1-2

3290010D60
ref: 1-2
MODEL P

IGNITOR

€ 593.00

2-1

3365229100
ref: 2-1

PROTECTOR,20X9

€ 5.00

2-2

3365137000
ref: 2-2
CUT 20X90

PROTECTOR(170X95X3.0)

€ 5.00

0831616058
ref: 3

NUT

€ 2.50

3293010D00
ref: 4

PLATE,IGNITOR

€ 10.50

0913606009
ref: 5

SCREW(6X20)

€ 2.50

0916006006
ref: 6

WASHER

€ 2.00

0918006090
ref: 7

SPACER (6.4X9X10.5)

€ 2.00

0932008007
ref: 8

CUSHION

€ 4.00

0831012066
ref: 9

NUT

€ 2.00

3311010D00
ref: 10

GENERATOR ASSY,SIGNAL

€ 203.00

3311530B01
ref: 11

PROTECTOR,SIGNAL GEN LEAD WIRE

€ 6.50

0211204107
ref: 12

SCREW

€ 2.00

3149745000
ref: 13

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205087
ref: 14

SCREW

€ 2.00

0940406403
ref: 15

CLAMP

€ 2.50

0940714403
ref: 16

CLAMP(L:125)

€ 2.50
