FUEL COCK

GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

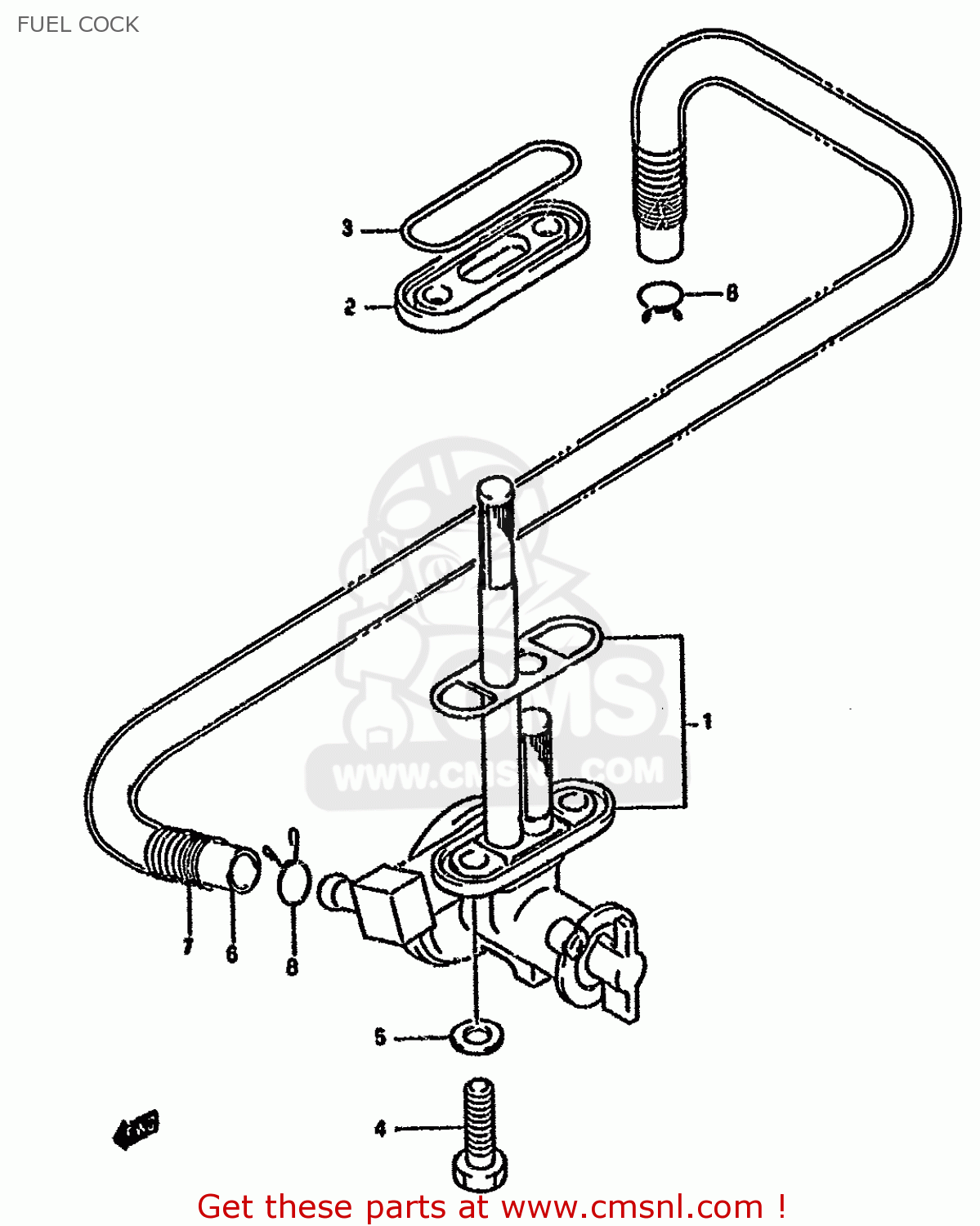

Fuel cock diagram GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

4430010D01
ref: 1-1
MODEL M

COCK ASSEMBLY,FUEL

€ 152.50

1-2

4430010D10
ref: 1-2
MODEL N/P

COCK ASSY,FUEL

€ 152.50

4436514A00
ref: 2

SPACER,FUEL COCK

€ 12.00

4436614A00
ref: 3

GASKET,FUEL COCK (NAS)

€ 2.50

0912806024
ref: 4

SCREW (6X25)

€ 2.50

0916806026
ref: 5

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935270103600
ref: 6
L:600-330

HOSE(7X10.2X600)

€ 8.00

0944013038
ref: 7

SPRING

€ 6.50

0940110403
ref: 8

CLIP

€ 7.00
