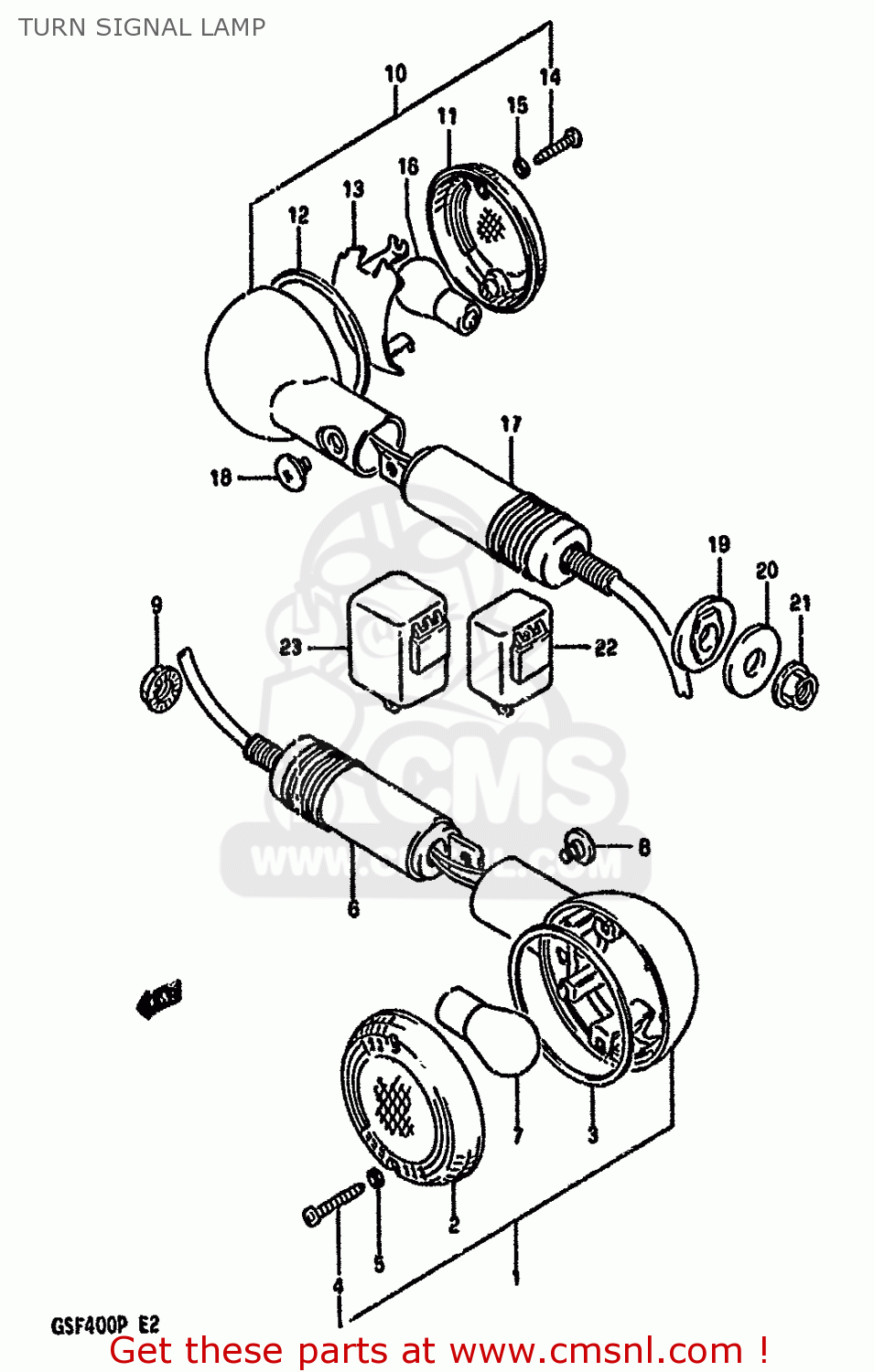

TURN SIGNAL LAMP

ref

part #

description

quantity

1-1

3560145C00
ref: 1-1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 27.00

1-2

3560145C10
ref: 1-2
E4,E21,E25,E34,E53

LAMP,FR TURN,R

€ 27.00

1-3

3560245C00
ref: 1-3

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 27.00

1-4

3560245C10
ref: 1-4
E4,E21,E25,E34,E53

LAMP,FR TURN,L

€ 27.00

2

3561238A01
ref: 2

LENS

€ 10.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

0321104256
ref: 4

SCREW ,4X25

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6-1

3561945C00
ref: 6-1

STAY,TURN SIGNAL,FRONT

€ 97.50

6-2

3561945C10
ref: 6-2
E4,E21,E25,E34,E53

STAY,TURNSIGNAL FR

€ 97.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3562338A01
ref: 8

SCREW

€ 5.50

9

0831626105
ref: 9

NUT

€ 3.50

10-1

3560345C10
ref: 10-1

LAMP ASSY,RR TURNSIGNAL,R

€ 91.50

10-2

3560345C00
ref: 10-2
E16,E22

LAMP ASSY,REAR TURN RH

€ 78.00

10-3

3560345C30
ref: 10-3
E30

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 37.50

10-4

3560445C10
ref: 10-4

LAMP ASSY,REAR TURN RH

€ 91.50

10-5

3560445C00
ref: 10-5
E16,E22

LAMP ASSY,REAR TURN RH

€ 78.00

10-6

3560445C30
ref: 10-6
E30

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 37.50

11

3565238A21
ref: 11

LENS

€ 16.50

12

3561338A00
ref: 12

GASKET (NAS)

€ 11.50

13

3565438A20
ref: 13

REFLECTOR

€ 83.50

14

0321104256
ref: 14

SCREW ,4X25

€ 2.00

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17-1

3565945C10
ref: 17-1

STAY,TURNSIGNAL RR

€ 36.00

17-2

3565945C00
ref: 17-2
E16,E22,E30

STAY,TURN SIGNAL,REAR

€ 27.50

18

3562338A01
ref: 18

SCREW

€ 5.50

19

3569517C00
ref: 19

SPACER,RR TURNSIGNAL

€ 3.00

20

0916010094
ref: 20

WASHER(10.5X30X3.2)

€ 3.50

21-1

0831626105
ref: 21-1
MODEL M/N

NUT

€ 3.50

21-2

0831012108
ref: 21-2
MODEL P

NUT

€ 2.50

22

3861031310
ref: 22
MODEL M/N

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

23-1

3861045091
ref: 23-1
MODEL M/N E22

RELAY ASSY,TUR

€ 67.50

23-2

3861045D01
ref: 23-2
MODEL P

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

all assemblies
