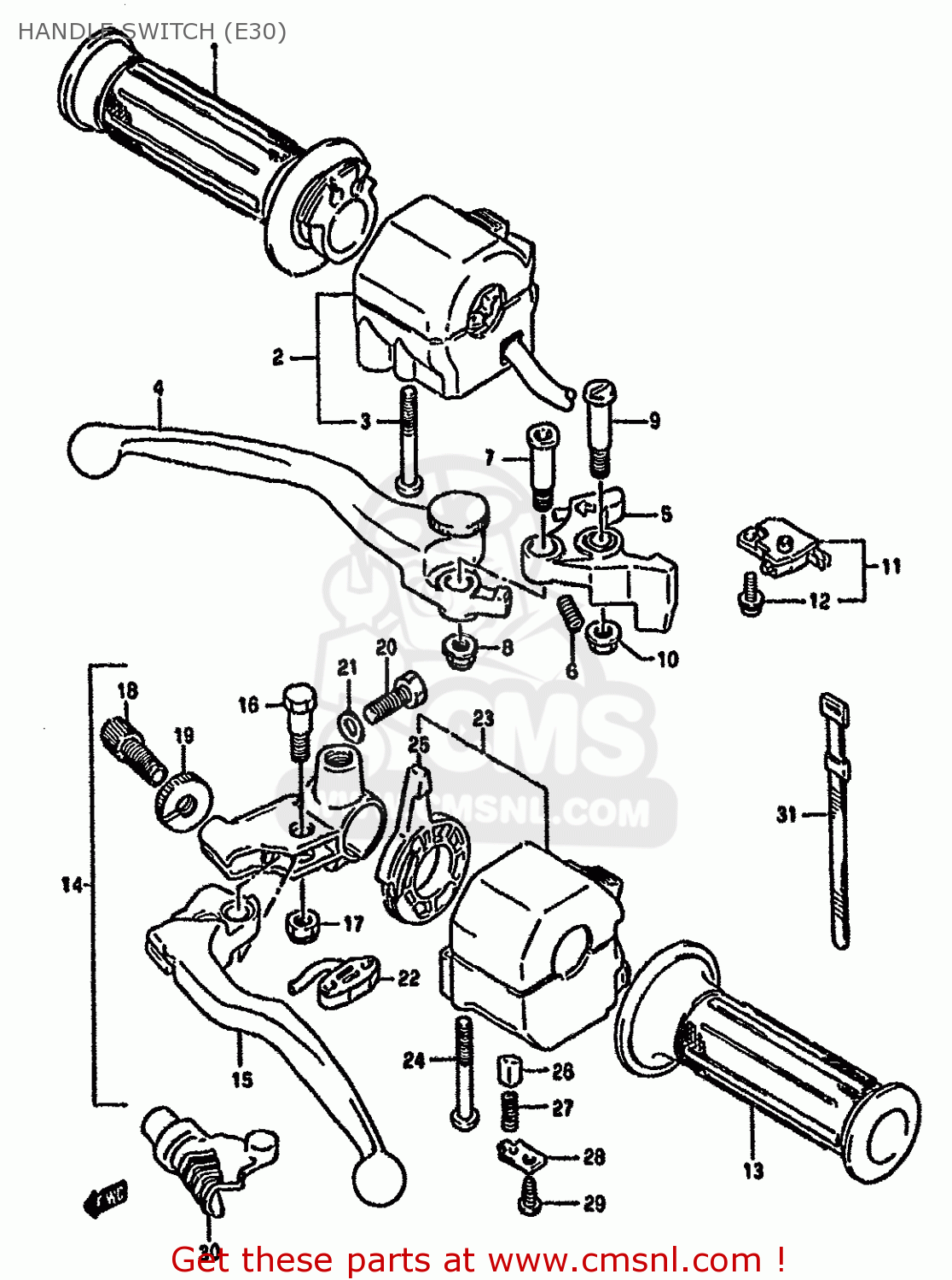

HANDLE SWITCH (E30)

ref

part #

description

quantity

1

5711034310
ref: 1

GRIP,THROTTLE

€ 24.50

2-1

3720045C10
ref: 2-1
MODEL N

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 92.50

2-2

3720045C20
ref: 2-2
MODEL P

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

3

0211205455
ref: 3

SCREW, 5X45

€ 4.00

4

5742032C00
ref: 4

LEVER,ADJUST

€ 39.50

5

5743032C00
ref: 5

KNOCKER

€ 45.50

6

5743832C00
ref: 6

SPRING

€ 4.00

7

5743732C00
ref: 7

BOLT,LEVER

€ 6.50

8

0831931065
ref: 8

NUT

€ 2.50

9

5743117C00
ref: 9

BOLT,LEVER PIVOT

€ 8.00

10

0831616064
ref: 10

NUT 6MM

€ 2.50

11

5746017C00
ref: 11

SWITCH ASSEMBLY,STOP

€ 32.50

12

5746517C00
ref: 12

SCREW

€ 1.50

13

5721134310
ref: 13

GRIP,L

€ 9.00

14

5750010D10
ref: 14

LEVER ASSEMBLY,CLUTCH

€ 107.50

15

5762027A31
ref: 15

LEVER,CLUTCH

€ 34.00

16

5743133450
ref: 16

BOLT,LEVER

€ 8.50

17

0831921065
ref: 17

NUT

€ 2.50

18

5744111010
ref: 18

ADJUSTER,CABLE

€ 8.00

19

5744211010
ref: 19

NUT,CABLE ADJUSTER

€ 4.00

20

0110706205
ref: 20

BOLT

€ 2.00

21

0832221064
ref: 21

WASHER

€ 2.00

22

5756008A00
ref: 22

SWITCH ASSEMBLY,CLUTCH

€ 20.50

23

3740044400
ref: 23

SWITCH ASSEMBLY,HANDLE,LEFT

€ 92.00

24

0211205455
ref: 24

SCREW, 5X45

€ 4.00

25

3748130B00
ref: 25

LEVER,CHOKE

€ 13.00

26

3748230B00
ref: 26

PIECE,SLIDE

€ 4.00

27

3748330B00
ref: 27

SPRING

€ 7.50

28

3748630B00
ref: 28

PLATE

€ 3.00

29

0351104125
ref: 29

SCREW

€ 1.50

30

5766145C00
ref: 30

COVER,CLUTCH LEVER

€ 13.00

31

0940712402
ref: 31

CLAMP(L:120)

€ 3.00

all assemblies
