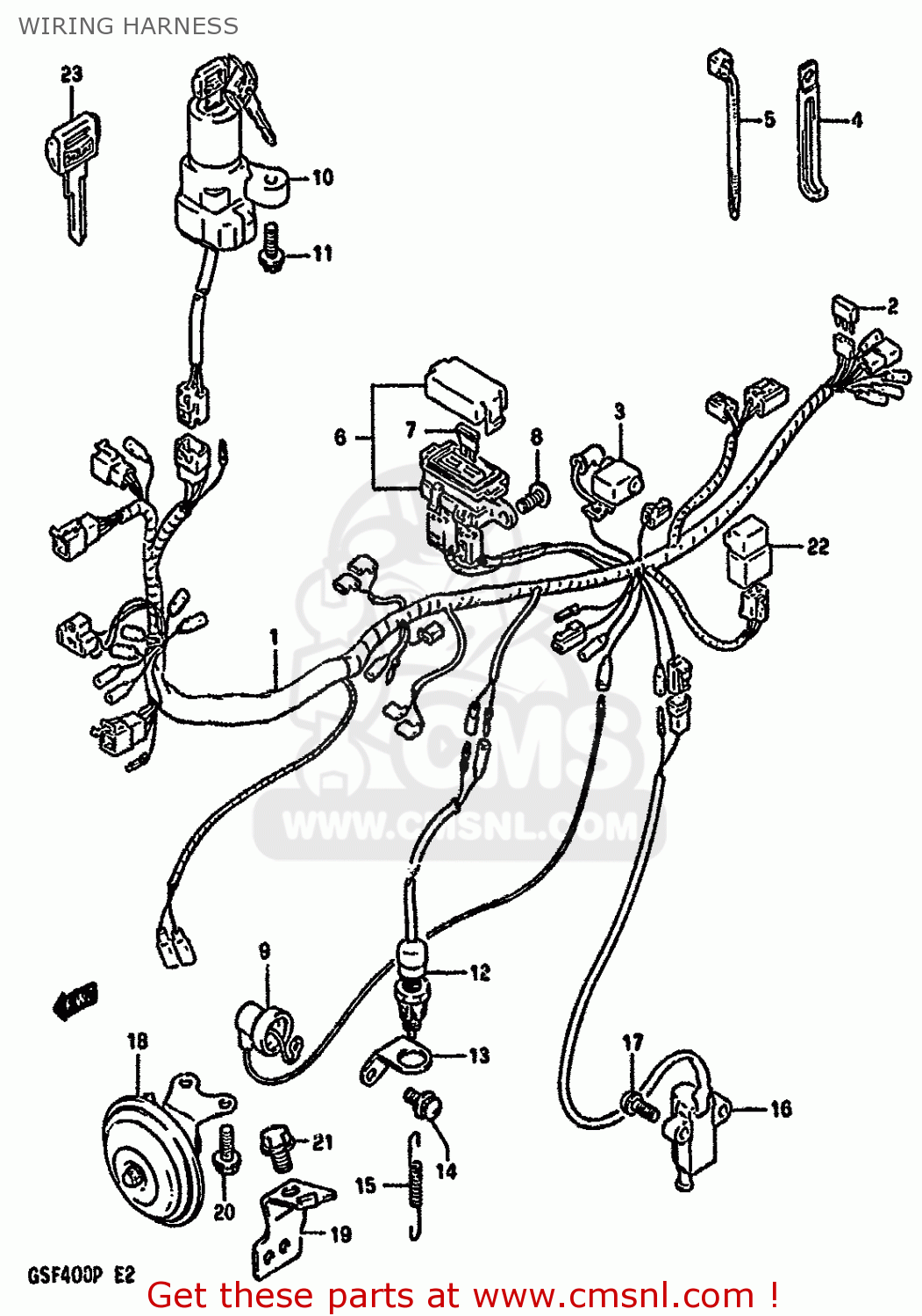

WIRING HARNESS

GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

Wiring harness diagram GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

WIRING HARNESS GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
WIRING HARNESS GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
WIRING HARNESS GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3661010D10
ref: 1-1
MODEL M
HARNESS,WIRING
€ 300.50
1-2
3661010D40
ref: 1-2
E22,MODEL M
HARNESS,WIRING
€ 300.50
1-3
3661010D01
ref: 1-3
E24
HARNESS,WIRING
€ 300.50
1-4
3661010D31
ref: 1-4
MODEL N E30
HARNESS,WIRING
€ 300.50
1-5
3661033D40
ref: 1-5
MODEL P
HARNESS,WIRING
€ 346.00
1-6
3661033D30
ref: 1-6
MODEL P E30
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3362410D00
ref: 3
CAP,BATTERY PLUS
€ 4.00
4-1
0940406403
ref: 4-1
CLAMP
€ 2.50
4-2
0940406412
ref: 4-2
CLAMP
0940406412
€ 2.50
4-3
0940406415
ref: 4-3
CLAMP
€ 3.00
4-4
0940406419
ref: 4-4
CLAMP
€ 2.50
4-5
0940406420
ref: 4-5
CLAMP
€ 2.50
4-6
0940408404
ref: 4-6
CLAMP
€ 3.00
4-7
0940410405
ref: 4-7
CLAMP
€ 2.00
5-1
0940710401
ref: 5-1
CLAMP
€ 3.00
5-2
0940710404
ref: 5-2
CLAMP(L:100)
0940710404
€ 4.00
5-3
0940710403
ref: 5-3
CLAMP(L:95)
€ 2.50
5-4
0940714403
ref: 5-4
CLAMP(L:125)
0940714403
€ 2.50
5-5
0940714410
ref: 5-5
CLAMP
€ 5.00
5-6
0940718402
ref: 5-6
CLAMP(L:165)
0940718402
€ 2.50
6
3674034C01
ref: 6
BOX ASSEMBLY,FUSE
3674034C01
€ 58.50
7-1
0948110101
ref: 7-1
FUSE(10A)
0948110101
€ 2.50
7-2
0948125101
ref: 7-2
FUSE (25A)
0948125101
€ 2.50
8
0214206166
ref: 8
SCREW
€ 2.50
9
3685110D00
ref: 9
WIRE
€ 14.00
10-1
3710017C01
ref: 10-1
MODEL M
LOCK ASSEMBLY,STEERING
€ 134.00
10-2
3710033D00
ref: 10-2
MODEL N/P
LOCK ASSEMBLY,STEERING
3710033D00
€ 134.00
11
0913906026
ref: 11
SCREW(6X18)
0913906026
€ 2.50
12
3774014A00
ref: 12
SWITCH ASSEMBLY,STOP LAMP
3774014A00
€ 22.00
13
4325110D00
ref: 13
BRACKET,STOP LAMP SWITCH
€ 3.50
14
0211276088
ref: 14
SCREW
€ 2.00
15
0944306012
ref: 15
SPRING
0944306012
€ 3.00
16
3784048B21
ref: 16
SWITCH ASSEMBLY,SIDE STAND
3784048B21
€ 76.00
17
0151706204
ref: 17
BOLT 6X20
0151706204
€ 2.50
18-1
3850010D10
ref: 18-1
HORN ASSY
3850010D10
€ 66.00
18-2
3850010D00
ref: 18-2
E24
HORN ASSEMBLY
€ 49.00
18-3
3850011D00
ref: 18-3
E30
HORN ASSEMBLY
€ 49.00
19
3859010D10
ref: 19
BRACKET,HORN
€ 6.50
20
0111706165
ref: 20
E24,E30
BOLT
€ 2.50
21
0151708125
ref: 21
BOLT
0151708125
€ 3.50
22
3874024B10
ref: 22
RELAY ASSEMBLY
3874024B10
€ 37.50
23-1
3714603A80
ref: 23-1
OPT,MODEL M/N
KEY,BLANK
€ 41.50
23-2
3714626D10
ref: 23-2
OPT,MODEL P
KEY,BLANK
3714626D10
€ 41.50
