CANISTER (E33)
GSF600S BANDIT 1998 (W) USA (E03)

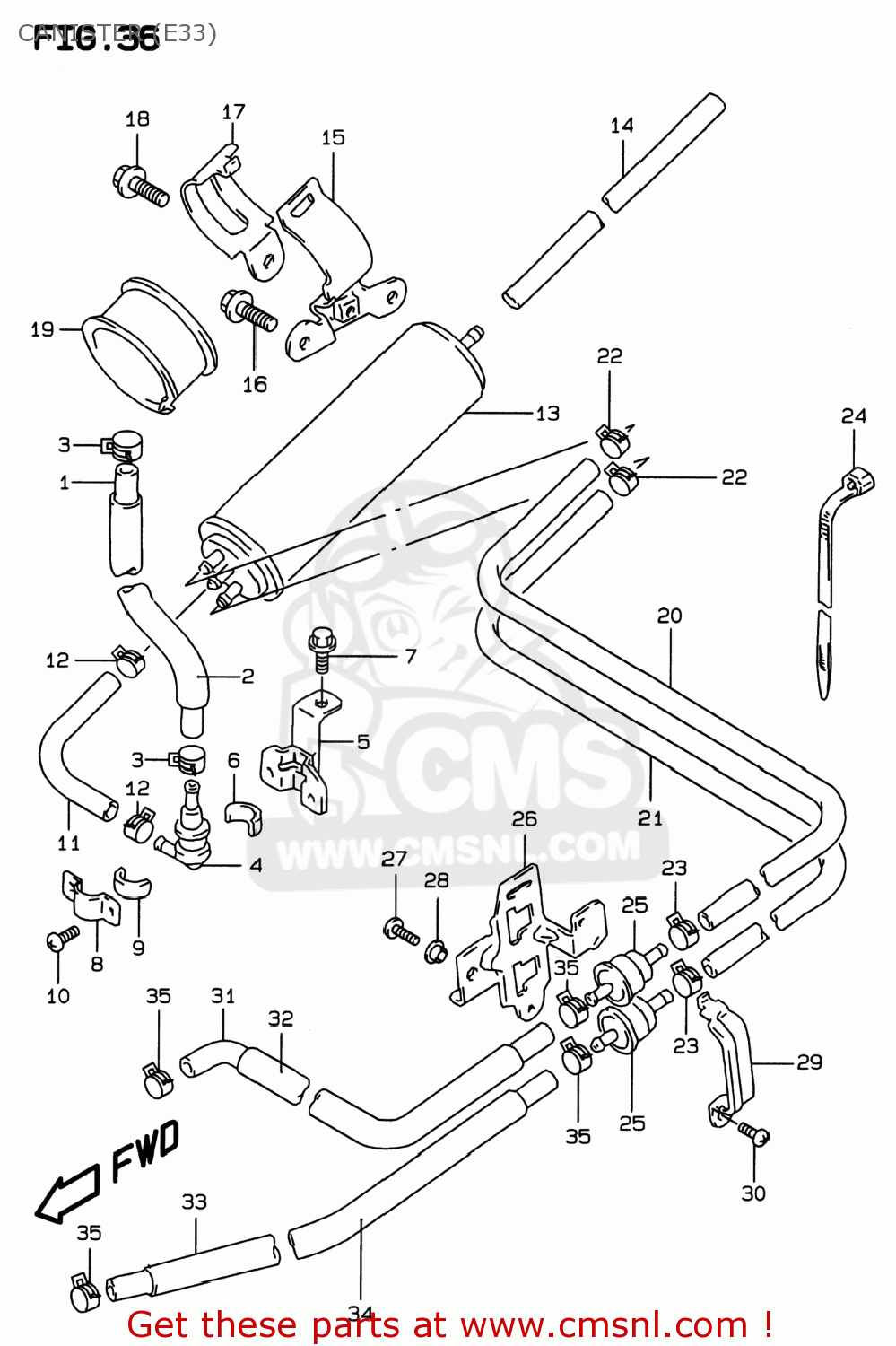

Canister (e33) diagram GSF600S BANDIT 1998 (W) USA (E03)
CANISTER (E33) GSF600S BANDIT 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
0935454115600
ref: 1-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
1-2
0935554116600
ref: 1-2
HOSE(5.4X11.4X600)
€ 12.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
€ 9.00
3
0940111413
ref: 3
CLIP
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
€ 40.00
5
4489026E00
ref: 5
BRACKET COMP,FUEL TANK
€ 0.00
6
4489424A00
ref: 6
CUSHION
€ 1.50
7
0155006163
ref: 7
01550-0616A
BOLT
€ 2.50
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
€ 1.50
10
0214204103
ref: 10
02142-0410A
SCREW
€ 1.50
11-1
0935454115600
ref: 11-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
11-2
0935554116600
ref: 11-2
HOSE(5.4X11.4X600)
€ 12.00
12
0940111413
ref: 12
CLIP
€ 2.50
13
1721026E00
ref: 13
CANISTER ASSY,CHARCOAL
€ 261.50
14-1
0935470123600
ref: 14-1
44421-12FR0
HOSE (7X12X600)
€ 26.00
14-2
0935570125600
ref: 14-2
44421-12FR0
HOSE(7X12X600)
€ 26.00
15
4488126E00
ref: 15
BRACKET,CANISTER
€ 0.00
16
0155006163
ref: 16
01550-0616A
BOLT
€ 2.50
17
4488226E00
ref: 17
HOLDER,CANISTER
€ 8.00
18
0214206123
ref: 18
02142-0612A
SCREW 6X12
€ 2.00
19
4488326E00
ref: 19
CUSHION,CANISTER
€ 9.00
20
0935954111600
ref: 20
HOSE(5.4X11.4X600)
€ 22.00
21
0935954111600
ref: 21
HOSE(5.4X11.4X600)
€ 22.00
22
0940111407
ref: 22
09401-11415
CLIP
€ 2.50
23
0940111413
ref: 23
CLIP
€ 2.50
24-1
0940714403
ref: 24-1
CLAMP(L:125)
€ 2.50
24-2
0940718402
ref: 24-2
CLAMP(L:165)
€ 2.50
25
4425048B00
ref: 25
VALVE,CANISTER PURGE
€ 39.50
26
4488526E00
ref: 26
BRACKET,CANISTER PURGE VALVE
€ 0.00
27
0214205123
ref: 27
02142-0512A
SCREW 5X12
€ 1.50
28
0916905021
ref: 28
09169-05024
WASHER (5X14X1)
€ 2.00
29
4488431E00
ref: 29
HOLDER,CANISTER PURGE
€ 0.00
30
0211205083
ref: 30
02112-0508A
SCREW
€ 2.00
31-1
0935454115600
ref: 31-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
31-2
0935554115600
ref: 31-2
HOSE(5.4X11.4X600)
€ 20.00
32
0935114152600
ref: 32
PROTECTOR(14.5X15.5X600)
€ 9.00
33-1
0935454115600
ref: 33-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
33-2
0935554115600
ref: 33-2
HOSE(5.4X11.4X600)
€ 20.00
34
0935114152600
ref: 34
PROTECTOR(14.5X15.5X600)
€ 9.00
35
0940111413
ref: 35
CLIP
€ 2.50
