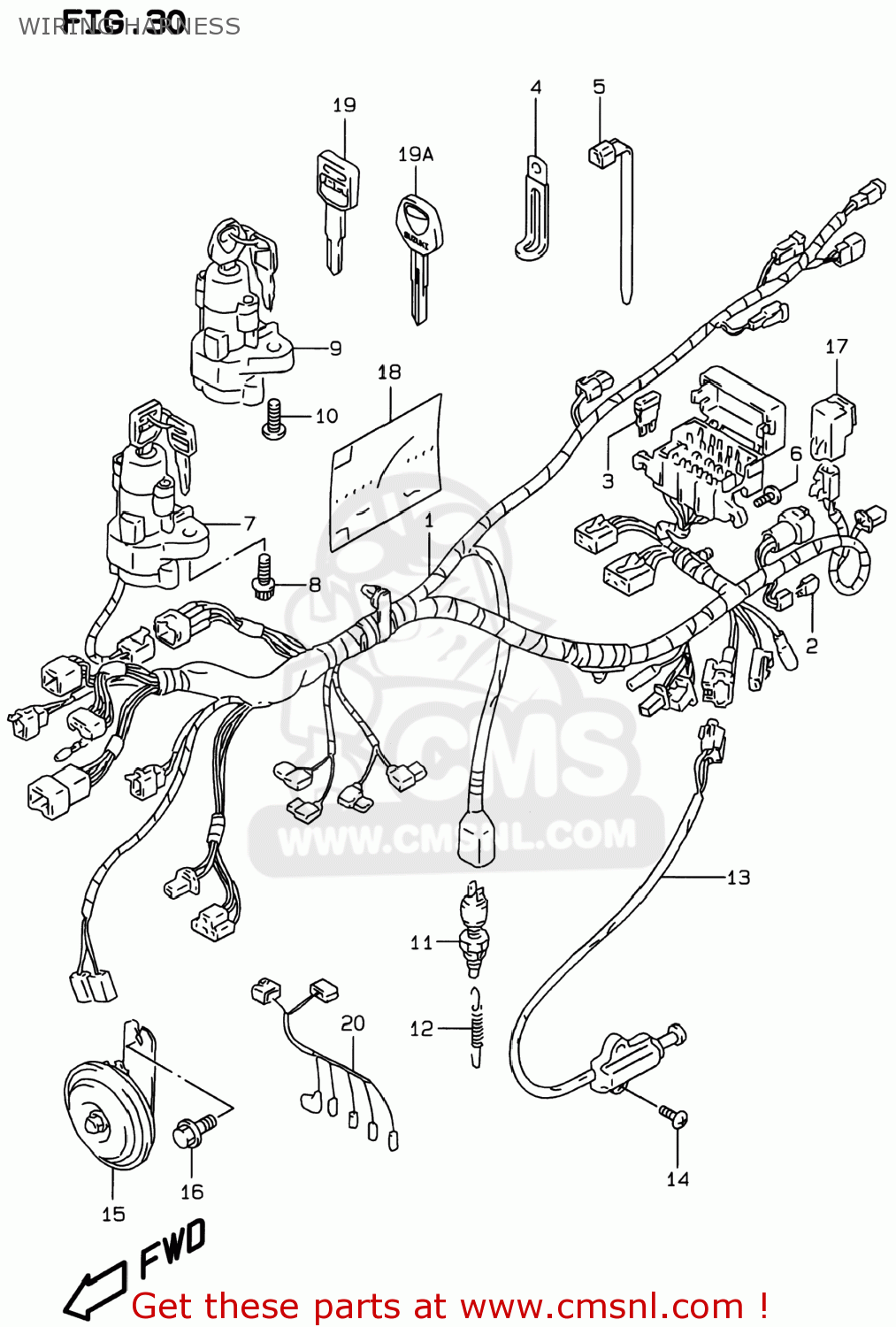

WIRING HARNESS

ref

part #

description

quantity

1-1

3661026E20
ref: 1-1

HARNESS,WIRING

€ 492.50

1-2

3661026E40
ref: 1-2

HARNESS,WIRING

€ 495.50

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3-1

0948110101
ref: 3-1

FUSE(10A)

€ 2.50

3-2

0948115101
ref: 3-2

FUSE(15A)

€ 1.50

4-1

0940406431
ref: 4-1
09404-06432

CLAMP(L:65)

€ 2.50

4-2

0940406429
ref: 4-2

CLAMP(L:45)

€ 2.50

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718403
ref: 5-3
09407-18402

CLAMP L:165

€ 2.50

6

0214206123
ref: 6
02142-0612A

SCREW 6X12

€ 2.00

7

3710018E01
ref: 7
37100-46E21

LOCK ASSEMBLY,STEERING

€ 110.00

8

0911908082
ref: 8
09119-08100

BOLT M8X20

€ 3.00

9

3710033E01
ref: 9

LOCK ASSY,STEERING

€ 170.00

10

0913908016
ref: 10

BOLT(8X20)

€ 3.50

11

3774024A00
ref: 11

SWITCH ASSY,STOP LAMP

€ 20.50

12

0944306054
ref: 12

SPRING

€ 2.50

13

3784044X50
ref: 13

SWITCH ASSY,SIDE STAND

€ 75.50

14

0214206203
ref: 14
02142-0620A

SCREW

€ 2.00

15-1

3850221E00
ref: 15-1
38502-21E02

HORN ASSEMBLY,LOW PITCH

€ 63.50

15-2

3850221E01
ref: 15-2
38502-21E02

HORN ASSEMBLY,LOW PITCH

€ 63.50

15-3

3850221E02
ref: 15-3

HORN ASSY

€ 63.50

16

0155008123
ref: 16
01550-0812A

BOLT

€ 3.50

17

3874026E00
ref: 17

RELAY ASSY

€ 32.50

18

3661815D20
ref: 18

COVER,WIRING HARNESS

€ 12.00

19

3714646E00
ref: 19
37146-33E00

KEY,BLANK

€ 13.00

19A

3714633E00
ref: 19A

KEY,BLANK

€ 13.00

20

3685621E00
ref: 20

WIRE,CARB HEATER LEAD

€ 79.50

all assemblies
