CYLINDER
GSF600S BANDIT 1998 (W) USA (E03)

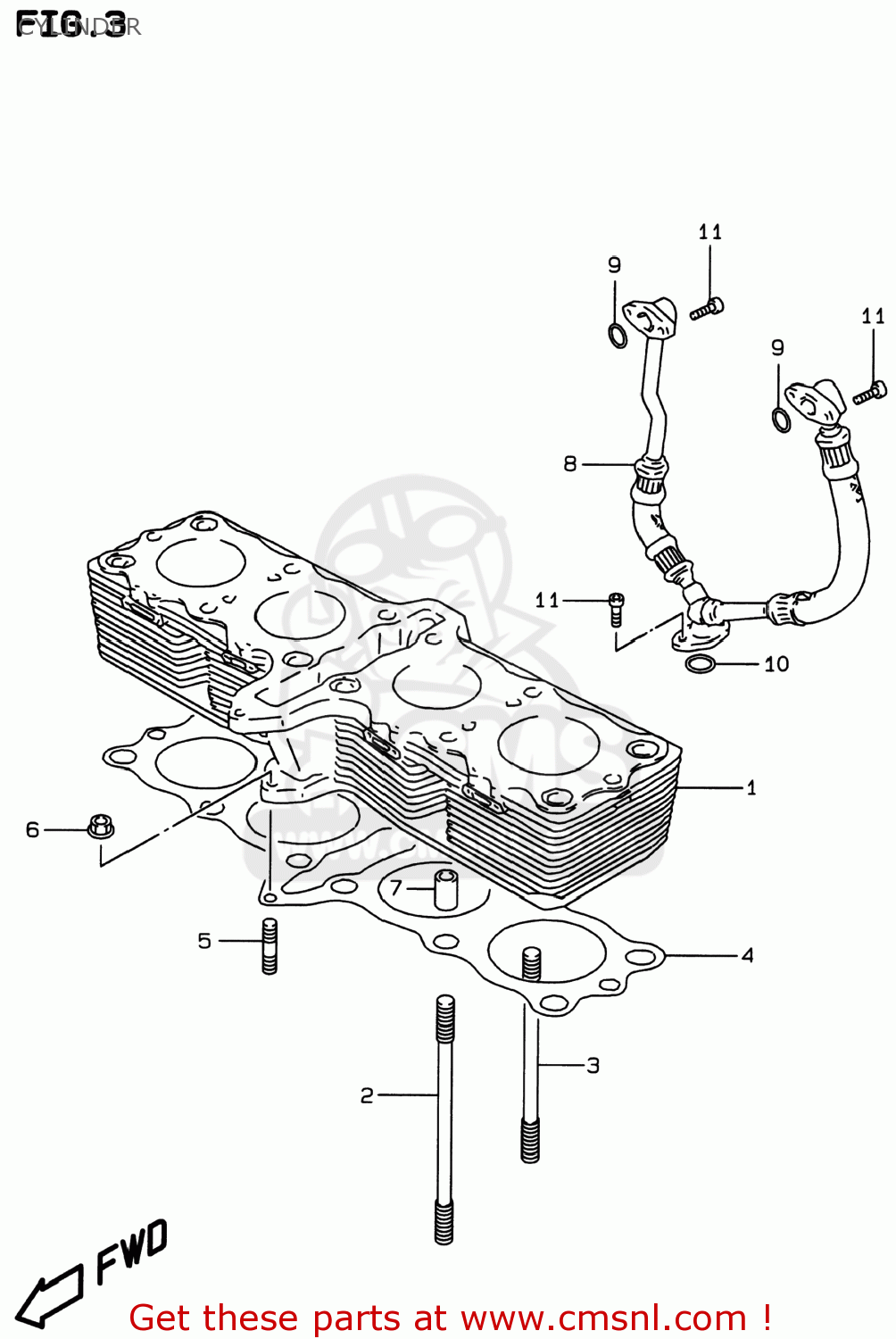

Cylinder diagram GSF600S BANDIT 1998 (W) USA (E03)
CYLINDER GSF600S BANDIT 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121026E00
ref: 1-1
11210-26E00-0F0
CYLINDER COMP
€ 791.00
1-2
1121026E10
ref: 1-2
11210-26E10-0F0
CYLINDER COMP
€ 777.50
2
0910810109
ref: 2
09108-10144
STUD BOLT (L:150)
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4-1
1124127A03
ref: 4-1
11241-27A04
GASKET,CYLINDER (NAS)
€ 20.00
4-2
1124127A04
ref: 4-2
GASKET,CYLINDER (NAS)
€ 20.00
5
0142106203
ref: 5
01421-0620A
STUD,M6X1X32
€ 2.50
6
0831610063
ref: 6
08316-1006B
NUT
€ 2.50
7-1
0920613006
ref: 7-1
09206-13017
PIN
€ 9.00
7-2
0920613017
ref: 7-2
PIN(13X10.4X20)
€ 9.00
8
1132827A04
ref: 8
HOSE,OIL HEAD COOLER
€ 241.00
9
0928014011
ref: 9
O RING(D:2.5,ID:13.8)
€ 3.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11
0713006163
ref: 11
07130-0616B
BOLT,OIL FILLE
€ 3.00
