COWLING BODY (MODEL W/X)
GSF600S BANDIT 1998 (W) USA (E03)

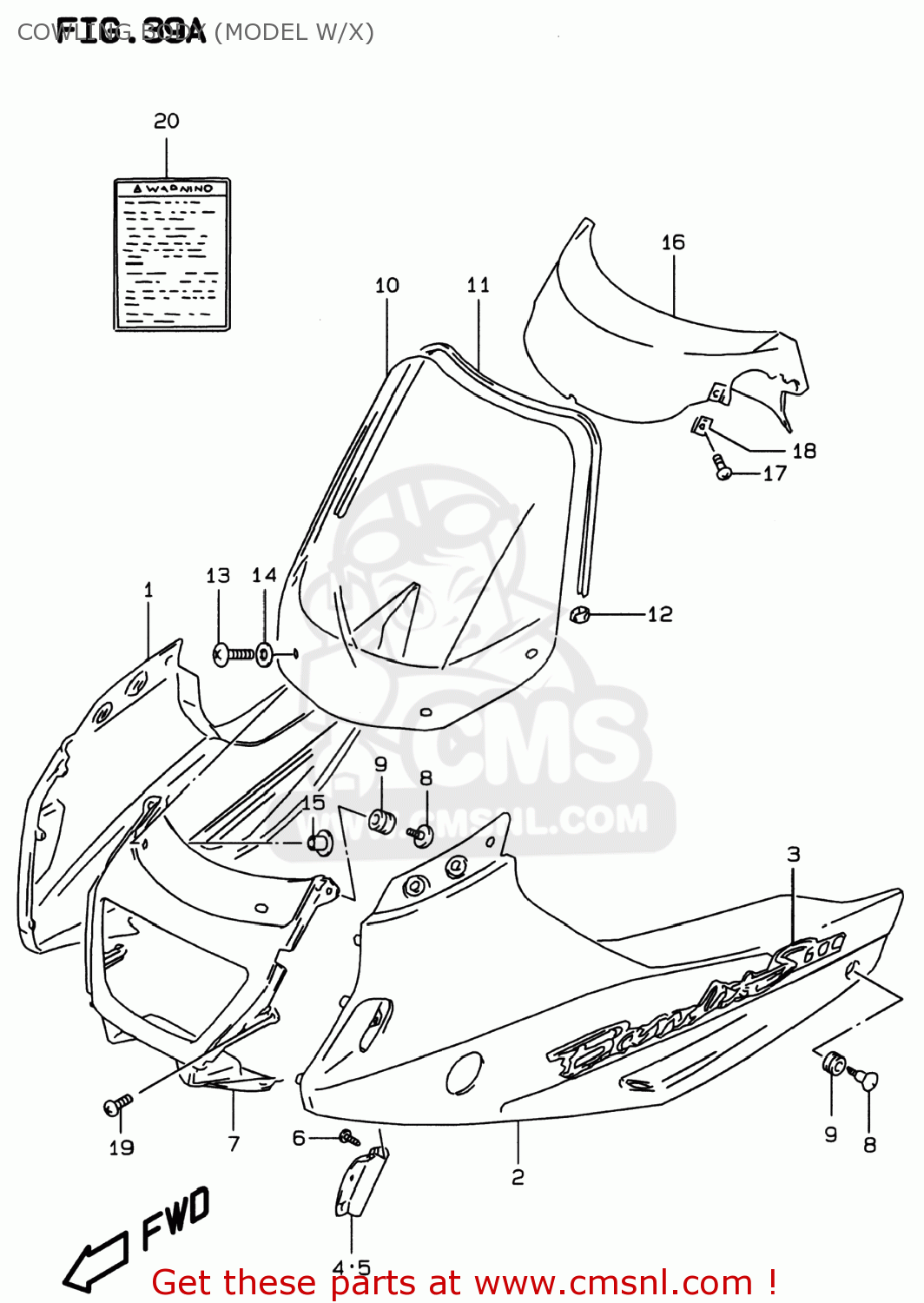

Cowling body (model w/x) diagram GSF600S BANDIT 1998 (W) USA (E03)
COWLING BODY (MODEL W/X) GSF600S BANDIT 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440126E00Y0V
ref: 1-1
COWLING ASSY,SIDE,R
€ 241.50
1-2
9440126E10Y3H
ref: 1-2
COWLING ASSY,SIDE,R
€ 246.00
1-3
9440126E10Y0W
ref: 1-3
COWLING ASSY,SIDE,R
€ 256.50
1-4
9440126E00Y7H
ref: 1-4
COWLING ASSY,SIDE,R
€ 244.50
2-1
9440226E00Y0V
ref: 2-1
COWLING ASSY,SIDE,L
€ 227.50
2-2
9440226E10Y3H
ref: 2-2
COWLING ASSEMBLY,SIDE,LEFT (ORANGE)
€ 214.50
2-3
9440226E10Y0W
ref: 2-3
COWLING ASSY,SIDE,L
€ 235.50
2-4
9440226E00Y7H
ref: 2-4
COWLING ASSY,SIDE,L
€ 193.50
3-1
6868126E00G8A
ref: 3-1
EMBLEM,COWLING SIDE
€ 18.50
3-2
6868126E00F2R
ref: 3-2
EMBLEM,COWLING SIDE
€ 15.00
3-3
6868126E0087N
ref: 3-3
EMBLEM,COWLING SIDE
€ 16.50
3-4
6868126E00L9E
ref: 3-4
EMBLEM,COWLING SIDE
€ 18.00
4
9441326E00
ref: 4
COVER,COWLING INNER,R
€ 15.00
5
9442326E00
ref: 5
COVER,COWLING INNER,L
€ 11.00
6
0354105103
ref: 6
03541-0510A
SCREW 5X10
€ 1.50
7-1
9440326E00Y0V
ref: 7-1
COWLING ASSY,CTR
€ 73.00
7-2
9440326E10Y3H
ref: 7-2
COWLING ASSY,CTR
€ 77.00
7-3
9440326E10Y0W
ref: 7-3
COWLING ASSY,CTR
€ 77.00
7-4
9440326E00Y7H
ref: 7-4
COWLING ASSY,CTR
€ 83.50
8
0913906087
ref: 8
09139-06126
SCREW(6X20)
€ 4.00
9
0932009016
ref: 9
CUSHION
€ 2.50
10
9461026E01
ref: 10
WINDSCREEN SET
€ 229.00
11
9463133C01
ref: 11
MOLDING WINDSCREEN
€ 10.00
12
9463721E00
ref: 12
CLIP,WINDSCREEN MOLDING
€ 4.00
13
0913905025
ref: 13
SCREW(5X14)
€ 2.00
14
0832201053
ref: 14
08322-0105A
WASHER
€ 2.50
15
0915905019
ref: 15
NUT
€ 5.50
16
9464026E01
ref: 16
PANEL,INNER
€ 55.50
17
0324205123
ref: 17
03241-0512A
SCREW
€ 1.50
18
0914805038
ref: 18
NUT
€ 2.50
19
0214215163
ref: 19
02142-1516A
SCREW
€ 3.00
20-1
6861248B00
ref: 20-1
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
20-2
6861248B10
ref: 20-2
68922-14F30
LABEL (WARNING SCREEN)
€ 6.50
