FRONT MASTER CYLINDER

GSF600S BANDIT 1998 (W) USA (E03)

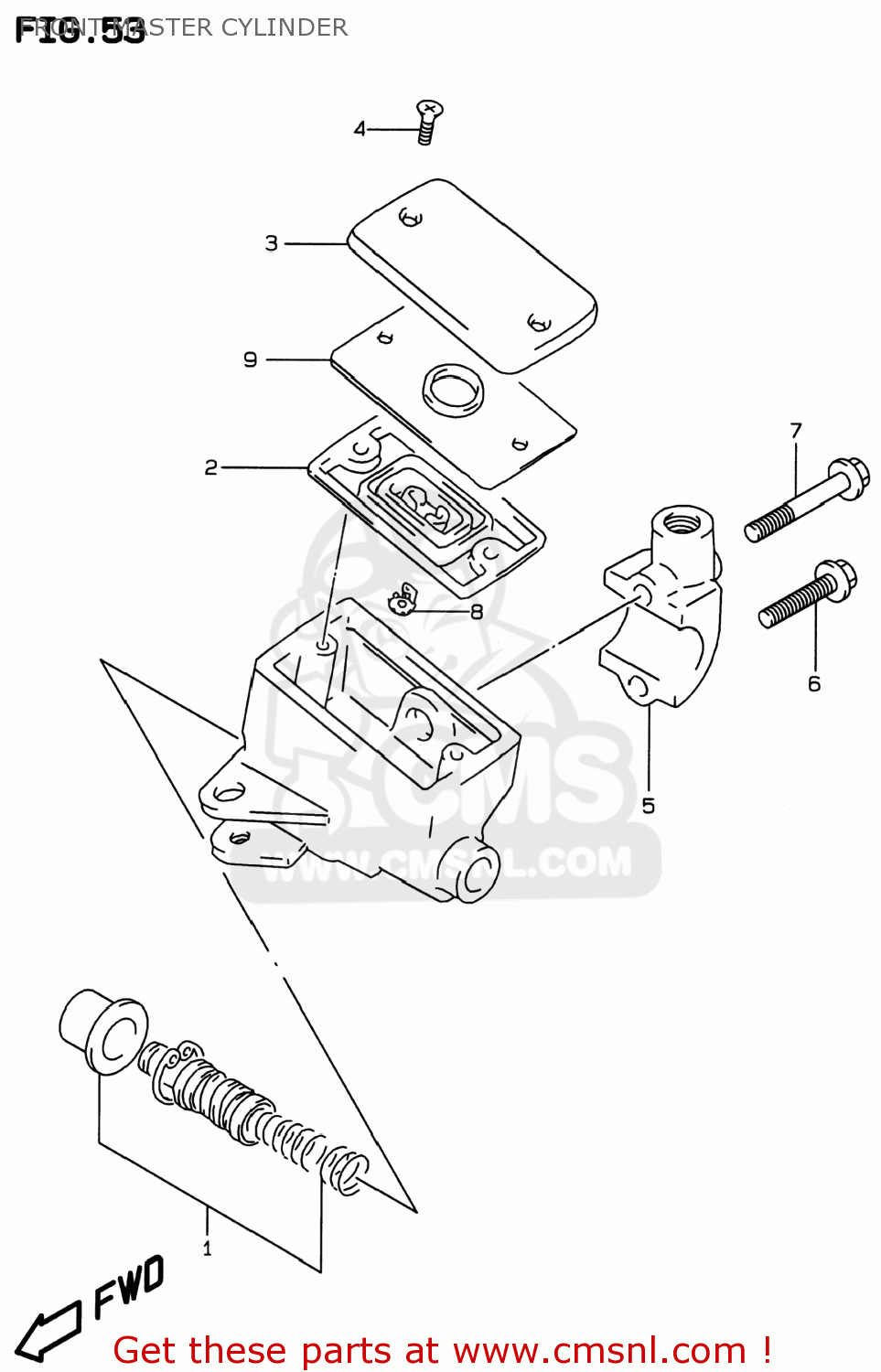

Front master cylinder diagram GSF600S BANDIT 1998 (W) USA (E03)

FRONT MASTER CYLINDER GSF600S BANDIT 1998 (W) USA (E03)

FRONT MASTER CYLINDER GSF600S BANDIT 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960020C30
ref:

CYLINDER ASSY,FR MASTER

€ 194.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749460
ref: 2

5966749460

3

5966941C00
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

7

5967519C10
ref: 7

BOLT(6X38)

€ 4.00

8

5966448B00
ref: 8

PROTECTOR

€ 8.00

9

5966841C00
ref: 9

PLATE,DIAPHRAGM

€ 8.00
