HANDLE LEVER
GSF600S BANDIT 1998 (W) USA (E03)

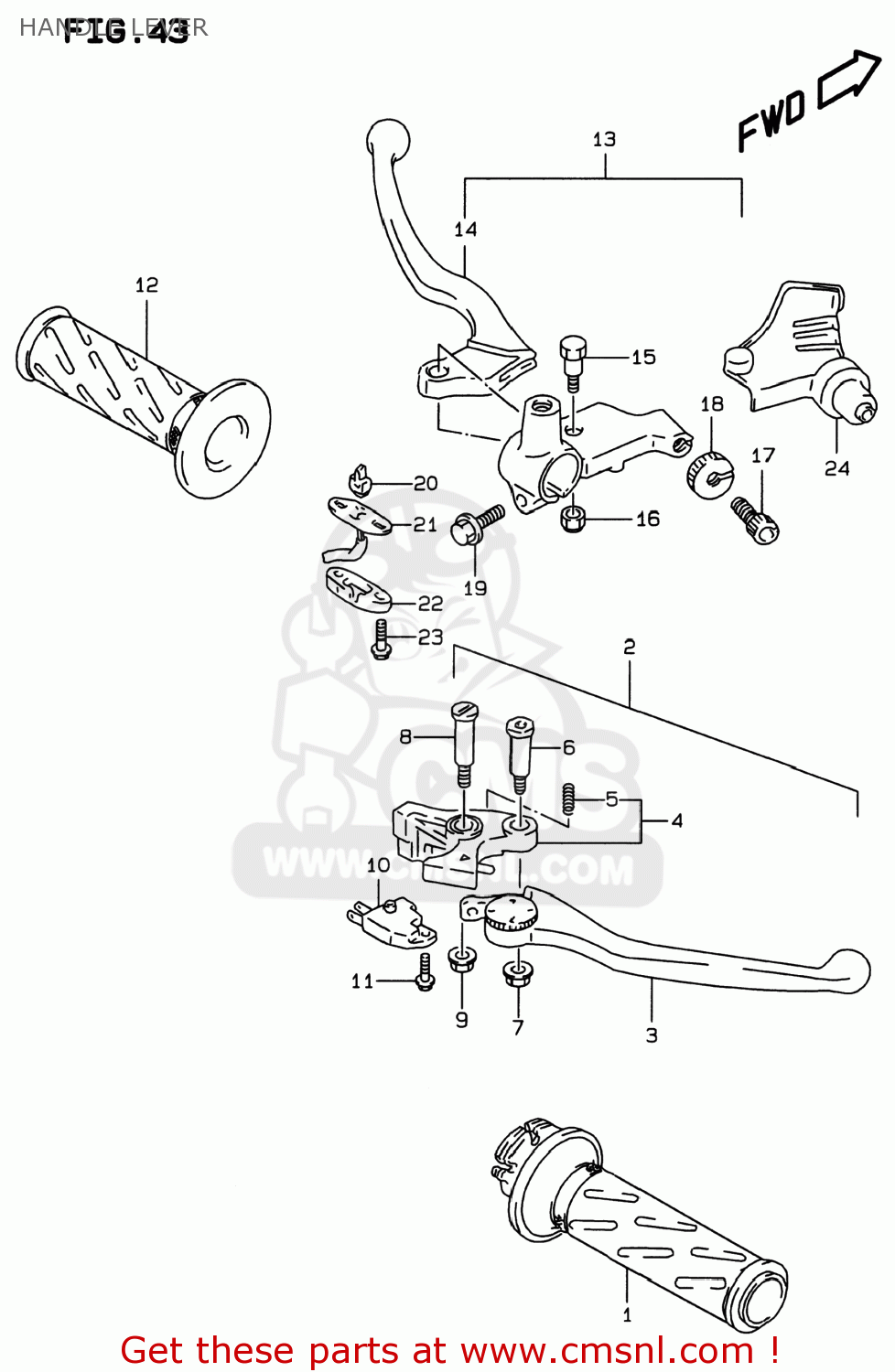

Handle lever diagram GSF600S BANDIT 1998 (W) USA (E03)
HANDLE LEVER GSF600S BANDIT 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711046E00
ref: 1-1
57110-46E01
GRIP,THROTTLE
€ 26.00
1-2
5711046E01
ref: 1-2
GRIP,THROTTLE
€ 26.00
2-1
5730040C01
ref: 2-1
57300-40C10
LEVER ASSEMBLY,BRAKE
€ 75.00
2-2
5730040C10
ref: 2-2
LEVER ASSY,BRAKE
€ 75.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4-1
5743040C00
ref: 4-1
57430-40C10
KNOCKER
€ 51.00
4-2
5743040C10
ref: 4-2
RNOCKER
€ 51.00
5
5743832C00
ref: 5
SPRING
€ 4.00
6
5743732C01
ref: 6
BOLT,LEVER
€ 6.50
7
0831931063
ref: 7
08319-3106A
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831610063
ref: 9
08316-1006B
NUT
€ 2.50
10
5746017C00
ref: 10
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12-1
5721122D00
ref: 12-1
57211-22D01-291
GRIP,LEFT
€ 11.50
12-2
5721122D01
ref: 12-2
57211-22D01-291
GRIP,LEFT
€ 11.50
13-1
5750001D11
ref: 13-1
LEVER ASSY,CLUTCH
€ 69.00
13-2
5750001D01
ref: 13-2
LEVER ASSY,CLUTCH
€ 59.00
14
5762001D00
ref: 14
LEVER,CLUTCH
€ 37.00
15
5753114A00
ref: 15
BOLT,LEVER SET
€ 8.50
16
0831921063
ref: 16
08319-2106B
NUT
€ 2.50
17
5744111010
ref: 17
ADJUSTER,CABLE
€ 8.00
18
5744211010
ref: 18
NUT,CABLE ADJUSTER
€ 4.00
19
0154706203
ref: 19
01547-0620B
SCREW
€ 2.50
20
5746518601
ref: 20
CONTACT,SWITCH
€ 4.50
21
5754149100
ref: 21
HARNESS ASSY,WIRE
€ 5.00
22
5748133010
ref: 22
COVER,FR BK TERMINAL BASE
€ 19.50
23
5748449110
ref: 23
SCREW
€ 1.50
24
5766133400
ref: 24
COVER,CLUTCH LEVER
€ 7.50
