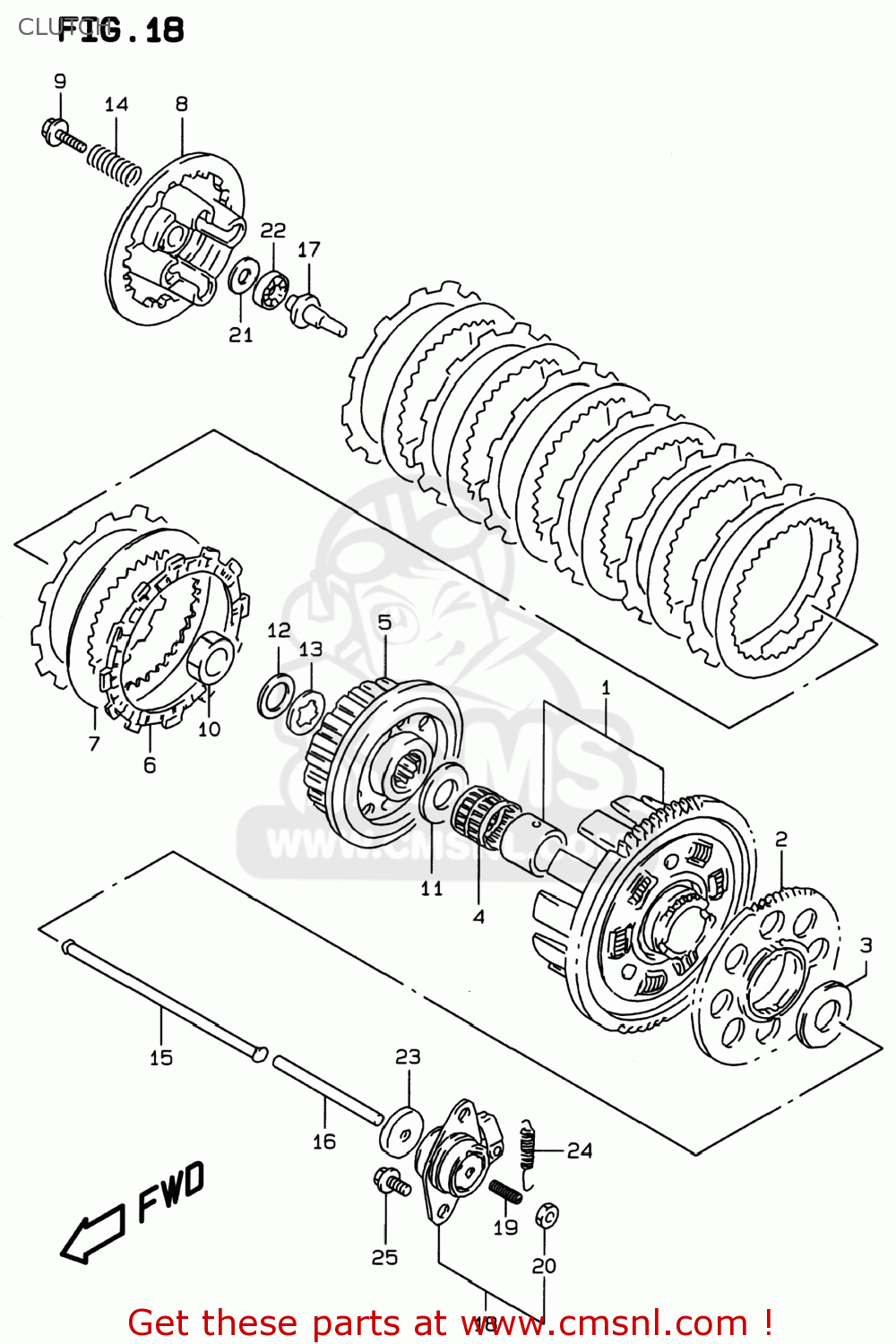

CLUTCH

ref

part #

description

quantity

1-1

2120026830
ref: 1-1
21200-26833

GEAR ASSEMBLY,PRIMARY DRIVE

€ 426.00

1-2

2120026832
ref: 1-2
21200-26833

GEAR ASSEMBLY,PRIMARY DRIVE

€ 426.00

2-1

2272117D01
ref: 2-1
22721-17D02

GEAR,GENERATOR DRIVE,N

€ 140.00

2-2

2272117D02
ref: 2-2

GEAR,GENERATOR DRIVE

€ 140.00

3-1

0916025067
ref: 3-1

WASHER(25X54X2.5)

€ 9.00

3-2

0916025037
ref: 3-2

WASHER(25X54X2.5)

€ 9.00

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141027A02
ref: 5

HUB,CLUTCH SLEEVE

€ 134.50

6

2144137400
ref: 6

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

7

2145105A00
ref: 7

PLATE,CLUTCH DRIVEN (NAS)

€ 9.00

8

2146227A00
ref: 8

DISC,CLUTCH PRESSURE

€ 37.00

9-1

0911606168
ref: 9-1

BOLT(6X16)

€ 2.50

9-2

0911606167
ref: 9-2

BOLT(6X20)

€ 2.00

9-3

0911606150
ref: 9-3

BOLT(6X25)

€ 2.50

10

0914022008
ref: 10

NUT

€ 4.50

11

0916025056
ref: 11

WASHER(25X50X2.5)

€ 9.50

12

0916422007
ref: 12

WASHER

€ 5.00

13-1

0916725024
ref: 13-1

WASHER,LOCK

€ 3.00

13-2

0918122251
ref: 13-2

SHIM(22X36X1)

€ 3.50

14

0944020020
ref: 14

SPRING

€ 8.50

15

2311020C00
ref: 15

ROD,CLUTCH PUSH,R

€ 23.00

16

2311108A00
ref: 16

ROD,CLUTCH PUSH,L

€ 15.50

17

2312127A00
ref: 17

PIECE,CLUTCH PUSH

€ 21.50

18

2320031300
ref: 18

SCREW ASSY,CLUTCH RELEASE

€ 104.50

19

0913406010
ref: 19

SCREW(6X25)

€ 3.00

20

0831000067
ref: 20

NUT

€ 2.50

21

0916015045
ref: 21

WASHER(15.5X28X1)

€ 4.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0928506015
ref: 23

SEAL,OIL(6X34X5.5)

€ 8.50

24

0944307038
ref: 24

SPRING

€ 4.00

25

0155006163
ref: 25
01550-0616A

BOLT

€ 2.50
