GSF600U 1998 (W) GERMANY (E22)

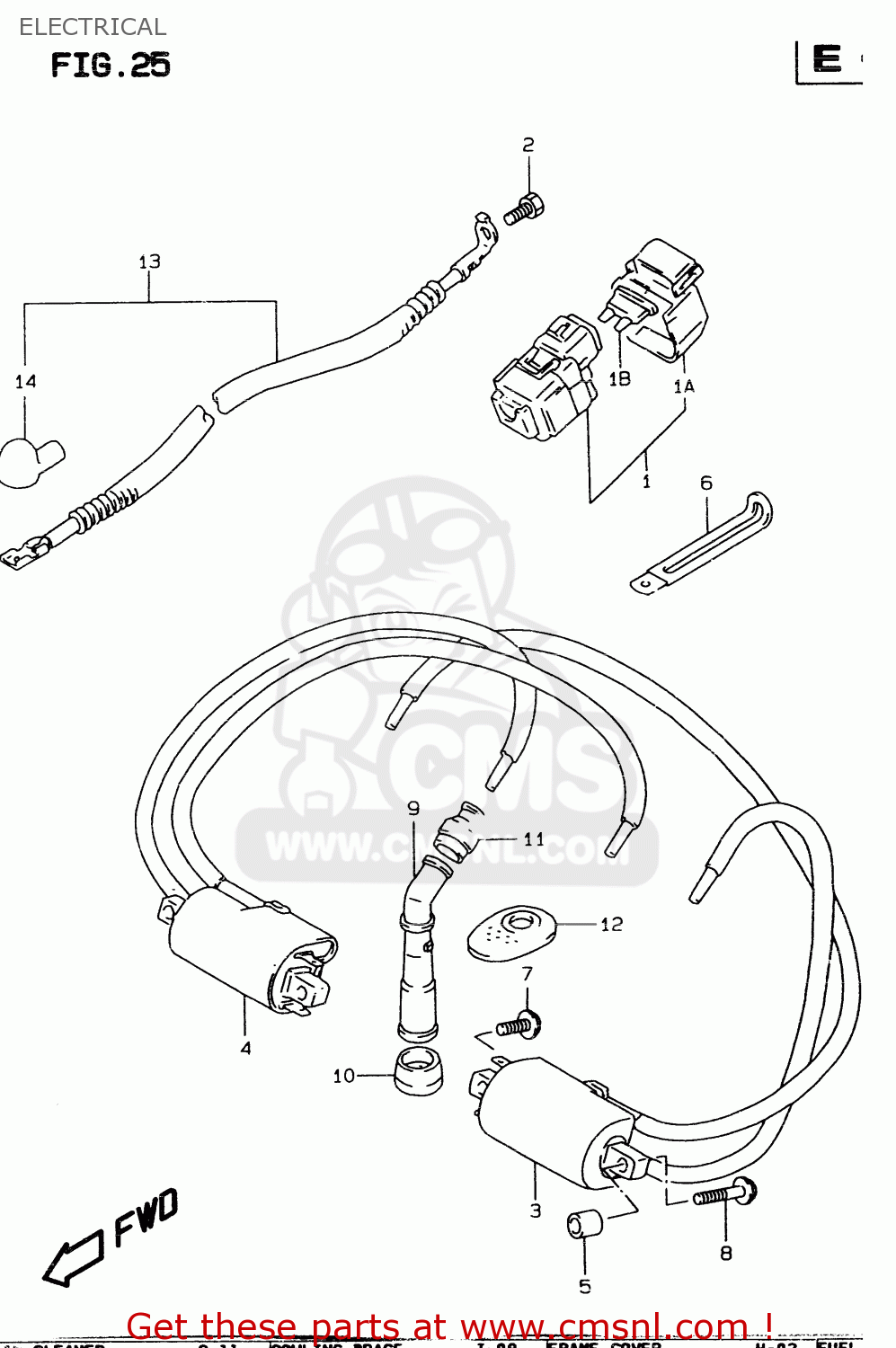

Electrical diagram GSF600U 1998 (W) GERMANY (E22)
ELECTRICAL GSF600U 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
1A
3186126E00
ref: 1A
COVER,STARTER RELAY
€ 3.50
1B
0948130101
ref: 1B
FUSE(30A)
€ 6.00
2
0912806013
ref: 2
SCREW(6X8)
€ 1.50
3
3341026E01
ref: 3
<-33410-26E00
COIL ASSY,IGNITION
€ 163.50
4
3342026E01
ref: 4
<-33420-26E00
COIL ASSY,IGNITION
€ 152.50
5
0918006095
ref: 5
SPACER(6X12X10)
€ 4.50
6
0940406431
ref: 6
CLAMP(L:65)
€ 2.50
7
0155006203
ref: 7
MODEL S/T/V
BOLT
€ 2.50
8-1
0155006253
ref: 8-1
MODEL S/T/V
BOLT
€ 2.50
8-2
0155006253
ref: 8-2
MODEL W
BOLT
€ 2.50
9
3351048B10
ref: 9
CAP,SPARK PLUG
€ 29.50
10
3354123E01
ref: 10
<-33541-23E00
SEAL,SPARK PLUG CAP
€ 7.00
11
3354238B00
ref: 11
SEAL,HIGH TENSION CORD
€ 4.50
12
3354348B00
ref: 12
COVER,SPARK PLUG CAP
€ 12.50
13
3381026E00
ref: 13
WIRE,STARTER MOTOR LEAD
€ 25.00
14
3186106C00
ref: 14
CAP,STARTER MOTOR TERMINAL
€ 3.00
