HEADLAMP (GSF600ST/SV/SW/SUT/SUV/SUW)

GSF600U 1998 (W) GERMANY (E22)

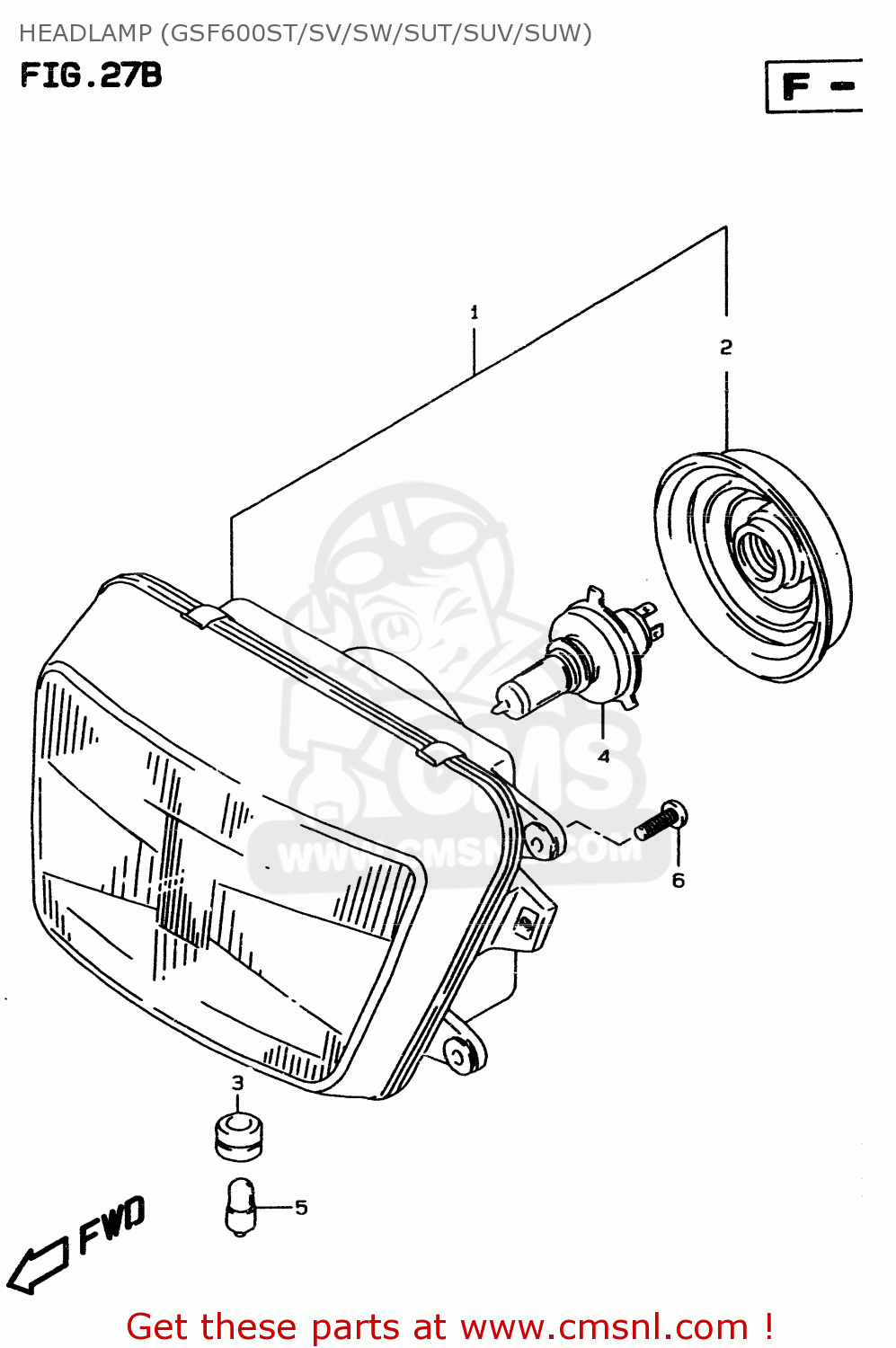

Headlamp (gsf600st/sv/sw/sut/suv/suw) diagram GSF600U 1998 (W) GERMANY (E22)

HEADLAMP (GSF600ST/SV/SW/SUT/SUV/SUW) GSF600U 1998 (W) GERMANY (E22)

HEADLAMP (GSF600ST/SV/SW/SUT/SUV/SUW) GSF600U 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3510026E01999
ref: 1-1
<-35100-26E00

HEADLAMP ASSY

€ 272.00

1-2

3510026E21999
ref: 1-2
E4,E17,E18,E22,E25,E

HEADLAMP ASSY

€ 266.50

2

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3

3611622630
ref: 3

JOINT,RUBBER

€ 5.00

4

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112063
ref: 5

BULB(12V4W)

€ 6.00

6

0214205163
ref: 6

SCREW

€ 2.50
