SECOND AIR (E18)

GSF600U 1998 (W) GERMANY (E22)

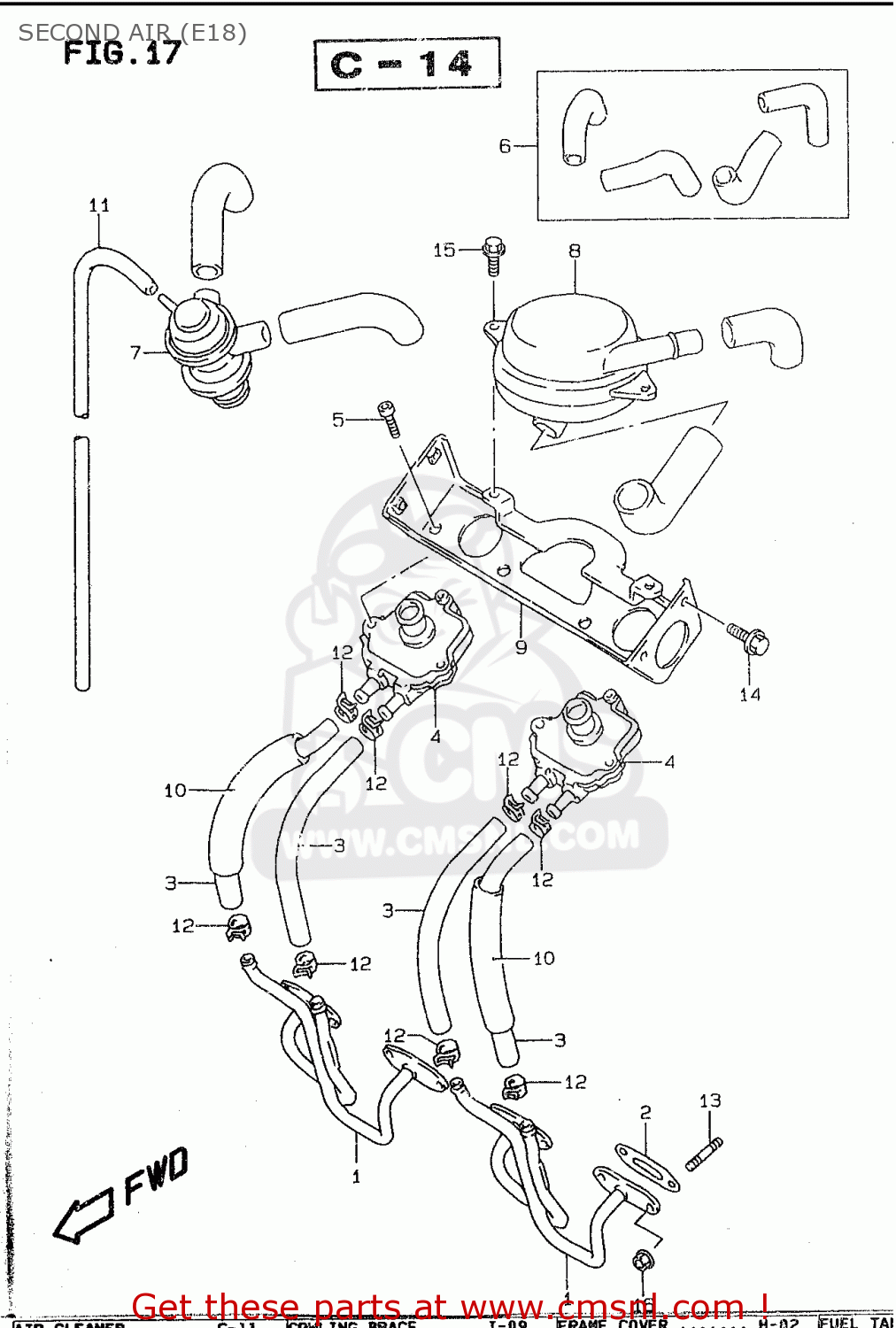

Second air (e18) diagram GSF600U 1998 (W) GERMANY (E22)

SECOND AIR (E18) GSF600U 1998 (W) GERMANY (E22)

SECOND AIR (E18) GSF600U 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1843026D00
ref: 1

PIPE,2ND AIR,L

€ 0.00

2

1844117C10
ref: 2

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

3

1844526E00
ref: 3

HOSE,SECOND AIR REED VALVE

€ 0.00

4

1845048B00
ref: 4

VALVE ASSY,2ND AIR REED

€ 125.50

5

0713005167
ref: 5

BOLT

€ 2.50

6

1842026821
ref: 6

HOSE SET,SECOND AIR

€ 0.00

7

1851046E00
ref: 7

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

8

1870017C03
ref: 8

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

9

1875026E00
ref: 9

BRACKET,SECOND AIR

€ 0.00

10

4431126E00
ref: 10

PROTECTOR,REED VALVE

€ 0.00

11

0935545855600
ref: 11
L:600->400

HOSE(4.5X8.5X600)

€ 14.00

12-1

0940113413
ref: 12-1
MODEL S/T/V

CLIP

€ 2.50

12-2

0940113417
ref: 12-2
MODEL W

CLIP

€ 2.50

13

0142106163
ref: 13

STUD BOLT

€ 2.00

14

0713006123
ref: 14

BOLT,STRANGER

€ 2.50

15

0155006123
ref: 15

BOLT

€ 2.50

16

0831610063
ref: 16

NUT

€ 2.50
