TAIL LAMP
GSF600U 1998 (W) GERMANY (E22)

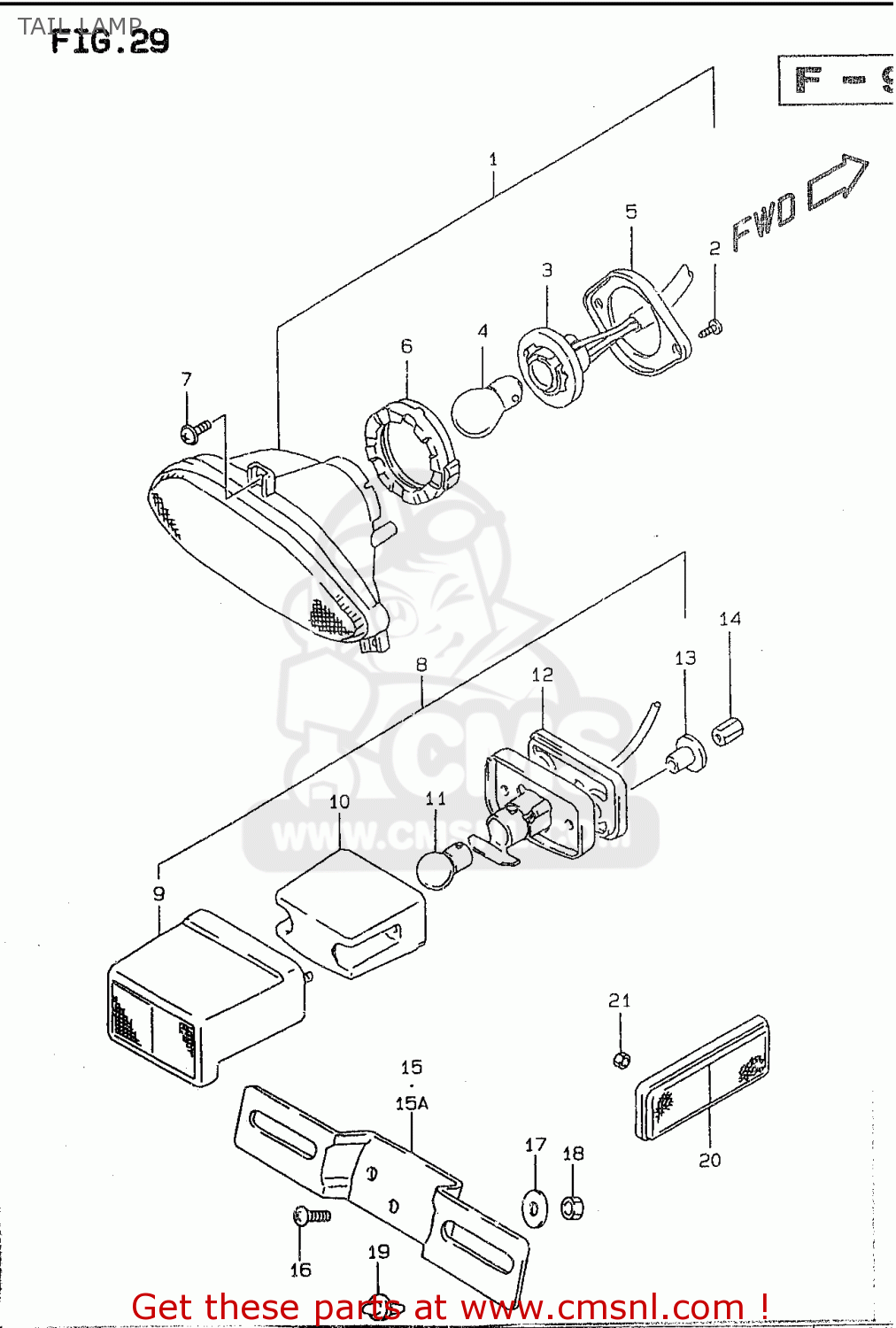

Tail lamp diagram GSF600U 1998 (W) GERMANY (E22)
TAIL LAMP GSF600U 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3571026E00
ref: 1
LAMP ASSY,RR COMBINATION
€ 170.00
2
0321104123
ref: 2
SCREW
€ 1.50
3
3571826E00
ref: 3
SOCKET & CORD
€ 38.00
4
0947112083
ref: 4
BULB(12V21/5W)
€ 6.00
5
3573648B21
ref: 5
PLATE NO.2
€ 16.50
6
3576548B21
ref: 6
CUSHION
€ 10.50
7
0351114123
ref: 7
TPG SCREW
€ 2.50
8
3591026E00
ref: 8
LAMP ASSY,LICENSE PLATE
€ 193.50
9
3591717C10
ref: 9
COVER,LENS
€ 72.00
10
3591238A20
ref: 10
LENS
€ 13.00
11
0947112140
ref: 11
BULB(12V5W,BF150-40160A)
€ 4.00
12
3576124B31
ref: 12
CUSHION
€ 9.00
13
3576624B30
ref: 13
SPACER
€ 2.00
14
0914004006
ref: 14
NUT
€ 4.00
15
3592700A10
ref: 15
MODEL S/T
BRACKET,LICENSE PLATE
€ 6.00
15A
3592727E00
ref: 15A
MODEL V/W
BRACKET,LICENSE PLATE
€ 10.00
16
0214206123
ref: 16
SCREW 6X12
€ 2.00
17
0916006088
ref: 17
WASHER(6.5X20X1.6)
€ 2.00
18
0831000063
ref: 18
NUT 6MM
€ 2.00
19
0932106030
ref: 19
CUSHION
€ 3.00
20
3595043431
ref: 20
E18
REFLEX REFLECTOR,FR SIDE
€ 12.00
21
0831000053
ref: 21
E18
NUT
€ 2.50
