TURN SIGNAL LAMP (MODEL T/V/W E17)

GSF600U 1998 (W) GERMANY (E22)

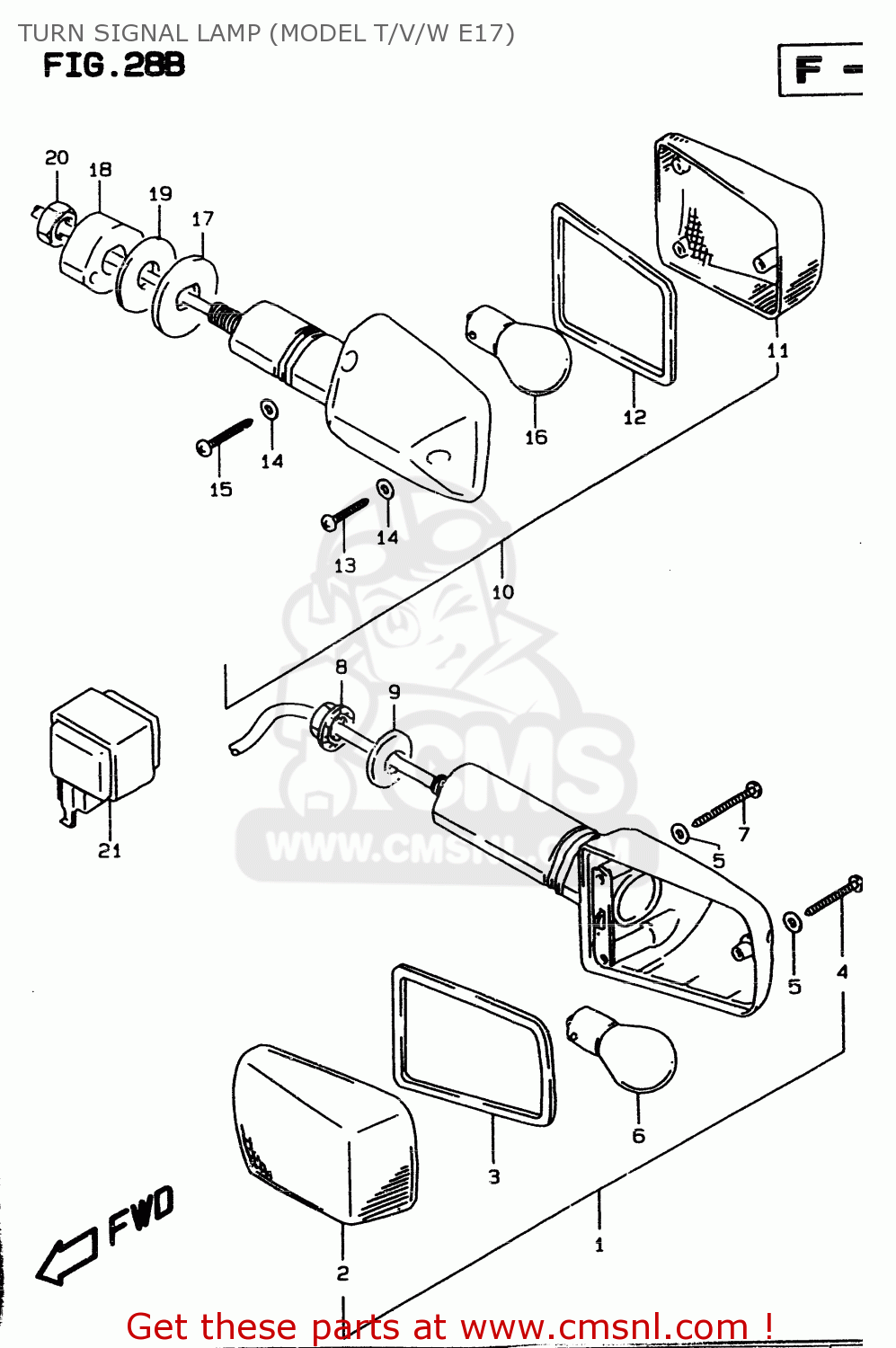

Turn signal lamp (model t/v/w e17) diagram GSF600U 1998 (W) GERMANY (E22)

TURN SIGNAL LAMP (MODEL T/V/W E17) GSF600U 1998 (W) GERMANY (E22)

TURN SIGNAL LAMP (MODEL T/V/W E17) GSF600U 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3560129EC0
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 78.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3572540511
ref: 4

SCREW

€ 1.50

5

3562727A02
ref: 5

GASKET (NAS)

€ 1.50

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

3562327A00
ref: 7

SCREW(3X30)

€ 1.50

8

0831610103
ref: 8

NUT

€ 2.00

9

3567427A01
ref: 9

GROMMET

€ 13.50

10

3560326EC0
ref: 10

LAMP ASSY,RR TURNSIGNAL

€ 92.50

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3572540511
ref: 13

SCREW

€ 1.50

14

3562727A02
ref: 14

GASKET (NAS)

€ 1.50

15

3562327A00
ref: 15

SCREW(3X30)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

3569517C00
ref: 17

SPACER,RR TURNSIGNAL

€ 3.00

18

3569503D40
ref: 18

SPACER,FR TURNSIGNAL LAMP

€ 9.00

19

0916010501
ref: 19

WASHER(10.5X30X2.3)

€ 2.50

20

0831000103
ref: 20

NUT

€ 2.00

21-1

3861045D01
ref: 21-1
MODEL T/V

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

21-2

3861026E00
ref: 21-2
MODEL W

RELAY ASSY

€ 47.00
