SPEEDOMETER (MODEL T/V/W)
GSF600U 1998 (W) GERMANY (E22)

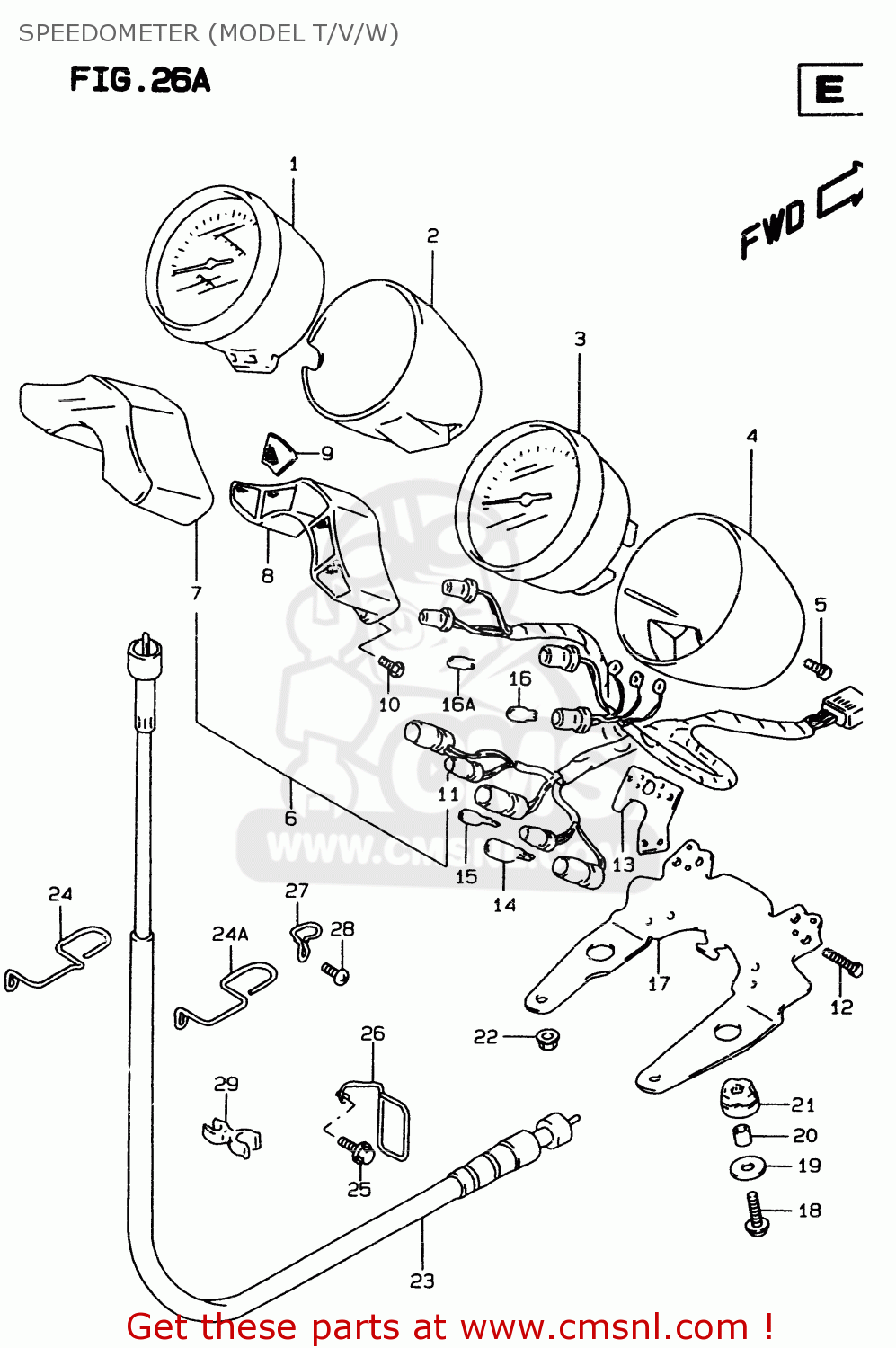

Speedometer (model t/v/w) diagram GSF600U 1998 (W) GERMANY (E22)
SPEEDOMETER (MODEL T/V/W) GSF600U 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411026E20
ref: 1-1
MODEL T E2
SPEEDOMETER (MILE/KILO)
€ 354.50
1-2
3411026E21
ref: 1-2
MODEL V/W E2
SPEEDOMETER(MILE/KILO)
€ 354.50
1-3
3411026E10
ref: 1-3
MODEL T
SPEEDOMETER
€ 354.50
1-4
3411026E11
ref: 1-4
MODEL V/W
SPEEDOMETER(KILO)
€ 354.50
2
3411123E00
ref: 2
LWR CASE,SPEEDOMETER
€ 56.50
3-1
3421026E10
ref: 3-1
MODEL T
TACHOMETER
€ 465.50
3-2
3421026E11
ref: 3-2
MODEL V/W
TACHOMETER
€ 465.50
4-1
3421123E00
ref: 4-1
MODEL T
LOWER CASE,TAC
€ 59.50
4-2
3421123E01
ref: 4-2
MODEL V/W
LWR CASE,TACHOMETER
€ 59.50
5
3418310D10
ref: 5
SCREW
€ 3.00
6-1
3638026E10
ref: 6-1
GSF600T E4,E17,E18,E
BOX, PILOT
€ 270.50
6-2
3638026E20
ref: 6-2
GSF600T/V/W E2
BOX, PILOT
€ 270.50
6-3
3638026E40
ref: 6-3
GSF600ST/SV/SW E2
BOX,PILOT
€ 279.00
6-4
3638026E30
ref: 6-4
GSF600ST/SV/SW E4,E1
BOX, PILOT
€ 279.00
7
3639326E10
ref: 7
CASE,UPR
€ 54.00
8
3638110D00
ref: 8
INNER CASE
€ 20.50
9-1
3630010850
ref: 9-1
E2
LENS SET,PILOT
€ 21.50
9-2
3630010870
ref: 9-2
LENS SET,PILOT LAMP
€ 21.50
10
0311204123
ref: 10
SCREW
€ 1.50
11-1
3417026E10
ref: 11-1
GSF600T E4,E17,E18,E
SOCKET
€ 142.50
11-2
3417026E30
ref: 11-2
GSF600T/W/ST/SW E2 G
SOCKET
€ 156.00
12
0713005203
ref: 12
SCREW
€ 1.50
13
3411810D00
ref: 13
PLATE
€ 5.50
14
0947112082
ref: 14
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
15
0947112085
ref: 15
BULB(12V3W,WB371,T7)
€ 3.00
16-1
0947112100
ref: 16-1
MODEL T
BULB(12V1.7W,WB372,T7)
€ 2.00
16-2
0947112100
ref: 16-2
MODEL V/W
BULB(12V1.7W,WB372,T7)
€ 2.00
16A
0947112189
ref: 16A
MODEL V/W
BULB(14V,0.84W)
€ 4.50
17
3495026E11
ref: 17
BRACKET,METER
€ 64.00
18
0155006303
ref: 18
BOLT
€ 2.50
19
0916006066
ref: 19
WASHER(6.5X20X1.6)
€ 2.00
20-1
0918006087
ref: 20-1
MODEL T
SPACER (6.4X9X15.5)
€ 4.00
20-2
0918006269
ref: 20-2
MODEL V/W
SPACER(6.5X9X15.5)
€ 4.00
21
0932009040
ref: 21
CUSHION
€ 2.50
22-1
0831931053
ref: 22-1
MODEL T
NUT
€ 3.00
22-2
0915905026
ref: 22-2
MODEL V/W
NUT
€ 2.50
23-1
3491023E00
ref: 23-1
MODEL T/V
CABLE ASSEMBLY,SPEEDOMETER
€ 53.00
23-2
3491026E00
ref: 23-2
GSF600W E2,E4,E17,E1
CABLE ASSY,SPEEDOMETER
€ 53.00
23-3
3491023E00
ref: 23-3
GSF600SW E2,E4,E17,E
CABLE ASSEMBLY,SPEEDOMETER
€ 53.00
24
3493826E30
ref: 24
GSF600T/V
GUIDE,SPEEDOMETER CABLE NO.2
€ 9.00
24A
3493826E00
ref: 24A
GSF600ST/SV/SW GSF60
GUIDE,SPEEDOMETER CABLE
€ 7.00
25
0155006123
ref: 25
BOLT
€ 2.50
26
3493821E20
ref: 26
GUIDE,SPEEDOMETER CABLE
€ 7.50
27
3493826E10
ref: 27
GUIDE,METER CABLE NO.1
€ 4.00
28
0214206103
ref: 28
SCREW 6X10
€ 2.00
29
0940800056
ref: 29
GSF600ST/SV/SW GSF60
CLIP
€ 2.50
