HANDLE LEVER
GSF600U 1998 (W) GERMANY (E22)

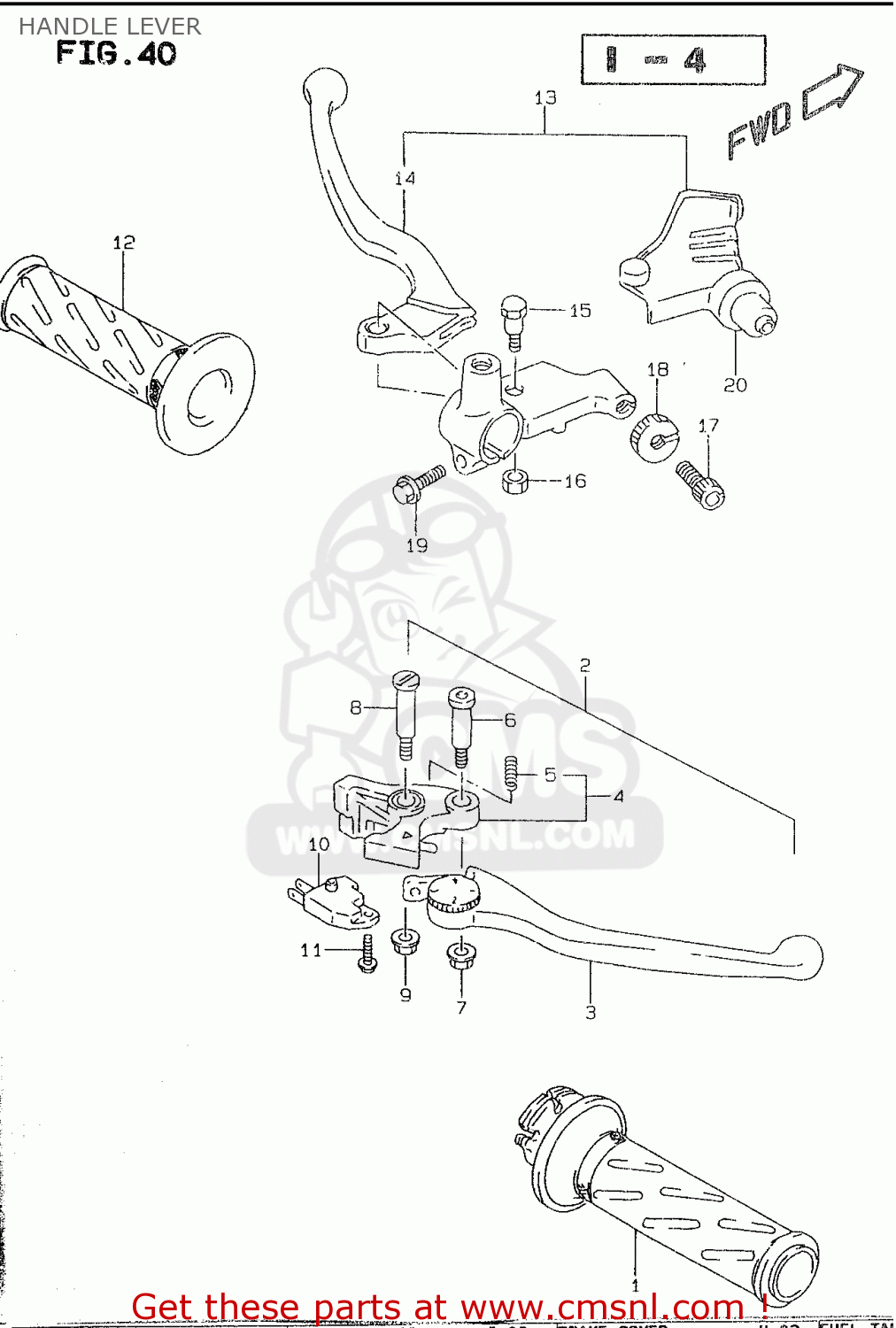

Handle lever diagram GSF600U 1998 (W) GERMANY (E22)
HANDLE LEVER GSF600U 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711046E00
ref: 1-1
MODEL S/T
GRIP,THROTTLE
€ 26.00
1-2
5711046E01
ref: 1-2
MODEL V/W
GRIP,THROTTLE
€ 26.00
2-1
5730040C01
ref: 2-1
MODEL S/T/V
LEVER ASSEMBLY,BRAKE
€ 75.00
2-2
5730040C10
ref: 2-2
MODEL W
LEVER ASSY,BRAKE
€ 75.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4
5743040C00
ref: 4
KNOCKER
€ 51.00
5
5743832C00
ref: 5
SPRING
€ 4.00
6
5743732C01
ref: 6
BOLT,LEVER
€ 6.50
7
0831931063
ref: 7
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831610063
ref: 9
NUT
€ 2.50
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12-1
5721122D00
ref: 12-1
MODEL S/T
GRIP,LEFT
€ 11.50
12-2
5721122D01
ref: 12-2
MODEL V/W
GRIP,LEFT
€ 11.50
13
5750001D01
ref: 13
LEVER ASSY,CLUTCH
€ 59.00
14
5762001D00
ref: 14
LEVER,CLUTCH
€ 37.00
15
5753114A00
ref: 15
BOLT,LEVER SET
€ 8.50
16
0831921063
ref: 16
NUT
€ 2.50
17
5744111010
ref: 17
ADJUSTER,CABLE
€ 8.00
18
5744211010
ref: 18
NUT,CABLE ADJUSTER
€ 4.00
19
0154706203
ref: 19
SCREW
€ 2.50
20
5766133400
ref: 20
COVER,CLUTCH LEVER
€ 7.50
