CLUTCH
GSX1100E 1981 (X) GENERAL EXPORT (E01)

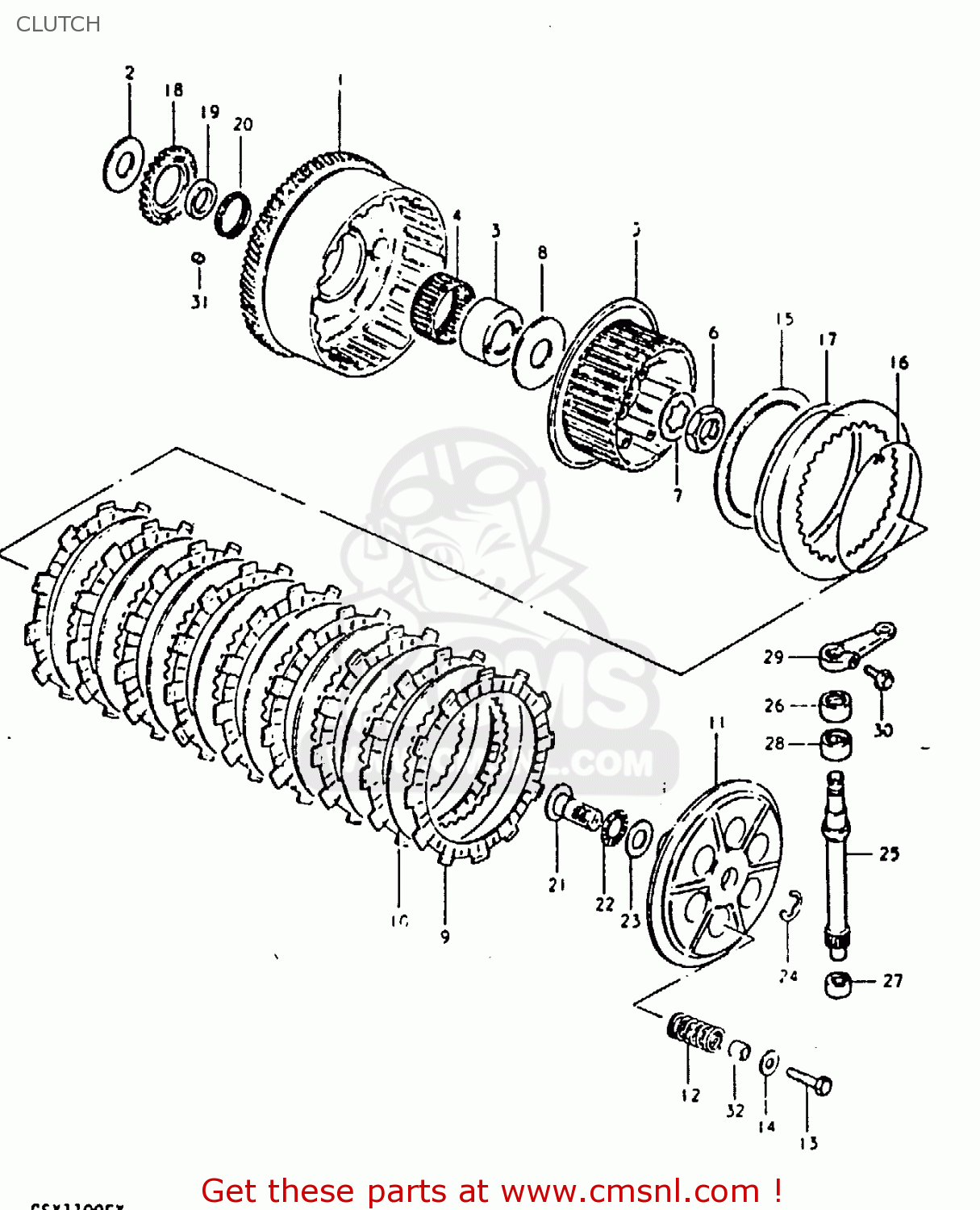

Clutch diagram GSX1100E 1981 (X) GENERAL EXPORT (E01)
CLUTCH GSX1100E 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120049201
ref: 1-1
NT:87, MODEL T
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
1-2
2120049202
ref: 1-2
NT:87, MODEL X
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
2
0916025023
ref: 2
WASHER
€ 9.50
3
2125149200
ref: 3
SPACER
€ 65.50
4
0926351001
ref: 4
BEARING
€ 37.00
5-1
2141149201
ref: 5-1
MODEL T, ~E.NO.10780
HUB,CLUTCH SLEEVE
€ 151.50
5-2
2141149202
ref: 5-2
MODEL T E.NO.107805~
HUB,CLUTCH SLEEVE
€ 151.50
5-3
2141149203
ref: 5-3
MODEL T, X, E.NO. 11
HUB,CLUTCH SLEEVE
€ 151.50
6
0914024004
ref: 6
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
0916025022
ref: 8
WASHER(25X66X3.5)
€ 13.50
9
2144149200
ref: 9
PLATE,CLUTCH DRIVE (MCA)
€ 16.00
10
2145149200
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
11-1
2146249200
ref: 11-1
MODEL T, ~E.NO. 1132
DISC,CLUTCH PRESSURE
€ 100.00
11-2
2146249201
ref: 11-2
MODEL T, X, E.NO. 11
DISC,CLUTCH PRESSURE
€ 100.00
12
0944019007
ref: 12
SPRING
€ 3.00
13
0110706308
ref: 13
BOLT
€ 2.50
14
0916006020
ref: 14
WASHER
€ 2.00
15-1
2147149200
ref: 15-1
MODEL T, ~E.NO.11106
SEAT,WAVE WASHER
€ 8.00
15-2
2147149100
ref: 15-2
MODEL T, X, E.NO.111
SEAT,WAVE WASHER
€ 8.00
16
2148145100
ref: 16
RING,STOPPER
€ 5.00
17
0916400003
ref: 17
WASHER
€ 9.00
18
1632149990
ref: 18
GEAR,OIL PUMP DRIVE
€ 78.50
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
€ 24.50
21
2316549200
ref: 21
RACK,CLUTCH RELEASE
€ 21.00
22
0926315003
ref: 22
BEARING(15X28X2)
€ 7.00
23
0916015015
ref: 23
WASHER
€ 4.00
24
0833211128
ref: 24
E RING 12MM
€ 2.00
25
2326145400
ref: 25
PINION,CLUTCH RELEASE
€ 475.50
26
0928512002
ref: 26
OIL SEAL
€ 7.00
27
0926312014
ref: 27
BEARING(12X19X12)
€ 11.00
28
0926315012
ref: 28
BEARING(15X22X12)
€ 11.50
29
2327149001
ref: 29
ARM,CLUTCH RELEASE
€ 31.50
30
0151706208
ref: 30
BOLT,REAR
€ 2.50
31
2121549000
ref: 31
CUSHION,PRIMARY DRIVEN GEAR
€ 3.00
32
0918006088
ref: 32
SPACER
€ 5.50
