FOOTREST
GSX1100E 1981 (X) GENERAL EXPORT (E01)

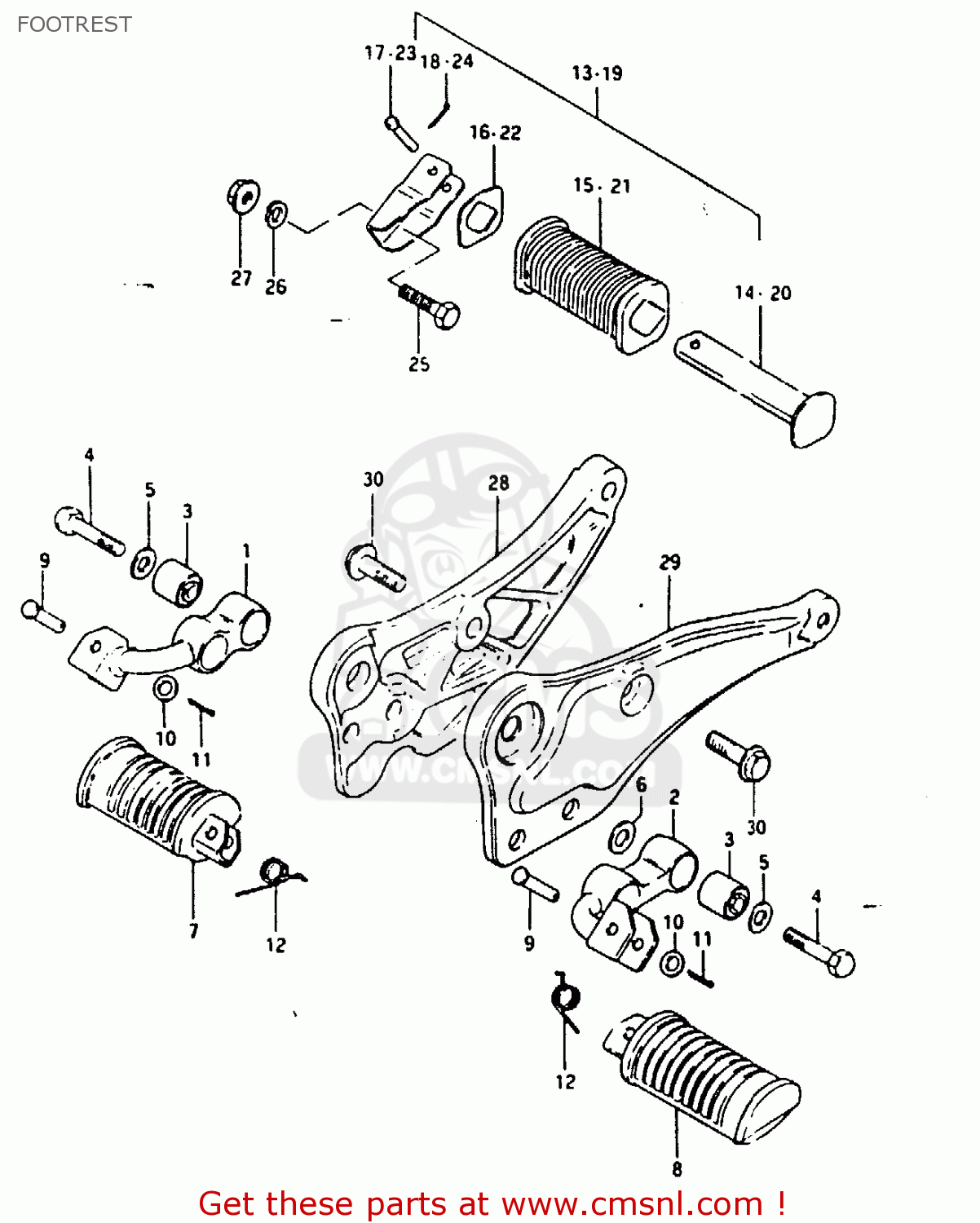

Footrest diagram GSX1100E 1981 (X) GENERAL EXPORT (E01)
FOOTREST GSX1100E 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4351049210
ref: 1
BAR,FRONT FOOTREST
€ 42.00
2
4352049210
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 50.00
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410009
ref: 4
BOLT(10X50)
€ 19.50
5-1
0916010013
ref: 5-1
MODEL T
WASHER (10.1X21X2.3)
€ 2.00
5-2
0916010057
ref: 5-2
MODEL X
WASHER
€ 2.00
6
0916010058
ref: 6
WASHER
€ 2.00
7
4355049002
ref: 7
RUBBER,FRONT FOOTREST
€ 22.50
8
4356049002
ref: 8
FOOTREST
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
WASHER
€ 2.00
11
0411120158
ref: 11
PIN
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13-1
4360049200
ref: 13-1
GSX1100ET, ~F.NO.508
FOOTREST ASSEMBLY,REAR
€ 26.00
13-2
4370049200
ref: 13-2
GSX1100ET, ~F.NO.508
FOOTREST ASSEMBLY,PILLION
€ 22.50
14-1
4361049200
ref: 14-1
GSX1100ET, ~F.NO.508
BAR,REAR FOOTREST
€ 8.00
14-2
4362049200
ref: 14-2
GSX1100ET, ~F.NO.508
BAR,REAR FOOTREST
€ 23.00
15
4361249200
ref: 15
GSX1100ET, ~F.NO.508
RUBBER,REAR FOOTREST
€ 30.50
16
4363149200
ref: 16
GSX1100ET, ~F.NO.508
WASHER,FOOTREST RUBBER
€ 16.00
17
0920006010
ref: 17
GSX1100ET, ~F.NO.508
PIN
€ 2.50
18
0411120158
ref: 18
GSX1100ET, ~F.NO.508
PIN
€ 1.50
19-1
4360049201
ref: 19-1
GSX1100ET, F.NO.5081
FOOTREST ASSEMBLY,REAR,RIGHT
€ 26.00
19-2
4370049201
ref: 19-2
GSX1100ET, F.NO.5081
FOOTREST ASSEMBLY,REAR,LEFT
€ 22.50
20-1
4361049201
ref: 20-1
GSX1100ET, F.NO.5081
BAR,REAR FOOTREST,RIGHT
€ 8.00
20-2
4362049201
ref: 20-2
GSX1100ET, F.NO.5081
BAR,REAR FOOTREST,LEFT
€ 23.00
21
4361249201
ref: 21
GSX1100ET, F.NO.5081
RUBBER,PILLION FOOTREST
€ 30.50
22
4363149201
ref: 22
GSX1100ET, F.NO.5081
WASHER,FOOTREST RUBBER
€ 16.00
23
0920006010
ref: 23
GSX1100ET, F.NO.5081
PIN
€ 2.50
24
0411120158
ref: 24
GSX1100ET, F.NO.5081
PIN
€ 1.50
25
0110710358
ref: 25
BOLT,M10X1.25X
€ 2.50
26
0832121108
ref: 26
LOCK WASHER
€ 2.00
27
0831616108
ref: 27
NUT
€ 2.00
28
4381149200
ref: 28
BRACKET, MUFFLER RH
€ 84.00
29
4382149200
ref: 29
BRACKET, MUFFLER LH
€ 84.00
30
0152710308
ref: 30
BOLT
€ 3.50
