ELECTRICAL

GSX1100E 1981 (X) GENERAL EXPORT (E01)

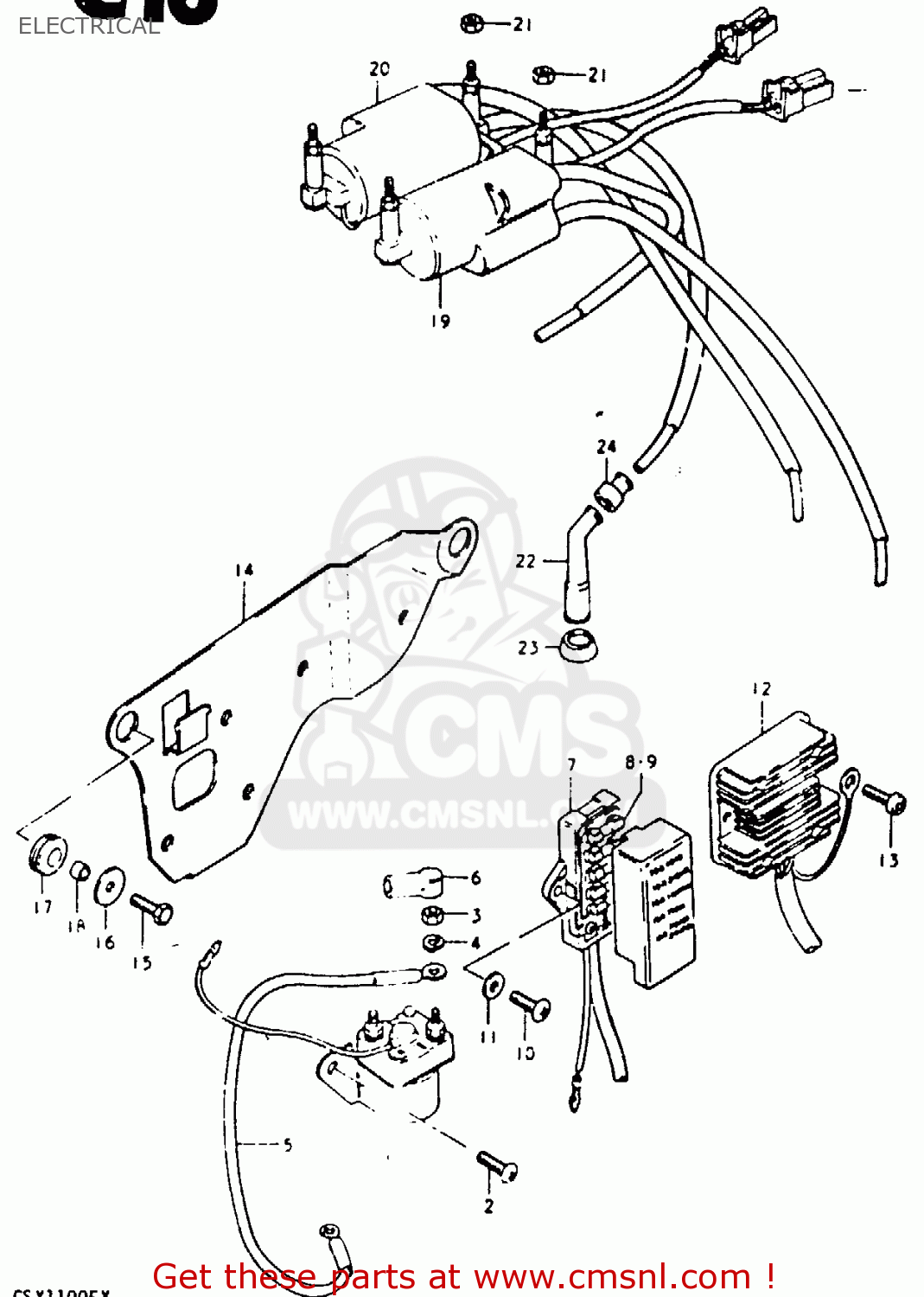

Electrical diagram GSX1100E 1981 (X) GENERAL EXPORT (E01)

ELECTRICAL GSX1100E 1981 (X) GENERAL EXPORT (E01)

ELECTRICAL GSX1100E 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0831022068
ref: 3

NUT 6MM

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

3385049001
ref: 5

WIRE,STARTER MOTOR LEAD

€ 8.50

6

3186135100
ref: 6

CAP,STARTER RELAY

€ 4.50

7

3674049200
ref: 7

BOX ASSEMBLY,FUSE

€ 94.00

8

0948110001
ref: 8

FUSE(10A)

€ 2.00

9

0948115001
ref: 9

FUSE(15A)

€ 3.00

10-1

0211206168
ref: 10-1

SCREW

€ 2.50

10-2

0211206208
ref: 10-2

SCREW

€ 2.00

11

0832221068
ref: 11

WASHER

€ 2.00

12

3280045210
ref: 12

RECTIFIER ASSEMBLY

€ 397.00

13

0211206128
ref: 13

SCREW 6X12

€ 2.00

14

4741049200
ref: 14

PLATE,ELECTRIC PARTS HOLDER

€ 10.50

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0916006007
ref: 16

WASHER

€ 2.00

17

0932008013
ref: 17

CUSHION

€ 4.00

18

0918007005
ref: 18

SPACER (7X9X7)

€ 2.50

19

3341049110
ref: 19

COIL ASSEMBLY,IGNITION

€ 133.50

20

3342049110
ref: 20

COIL ASSEMBLY,IGNITION

€ 133.50

21

0831011068
ref: 21

NUT

€ 2.50

22

3351045010
ref: 22

CAP ASSY,SPARK PLUG

€ 23.00

23

3354132410
ref: 23

SEAL,SPARK PLUG

€ 7.00

24

3354298000
ref: 24

SEAL,SPARK PLU

€ 4.50
