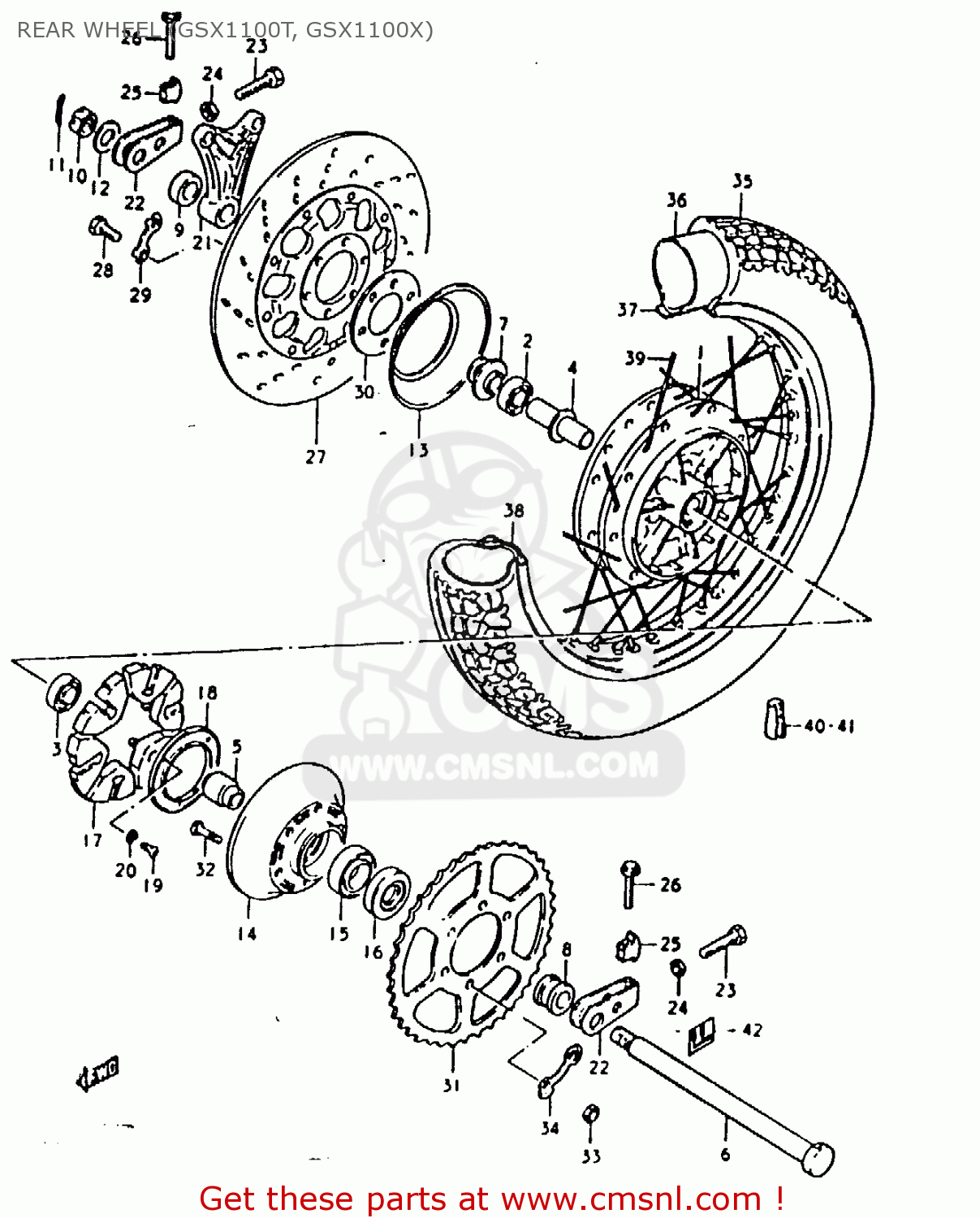

REAR WHEEL (GSX1100T, GSX1100X)

ref

part #

description

quantity

1

6411045001
ref: 1

DRUM,REAR HUB

€ 520.00

2

0812362047
ref: 2

BEARING

€ 17.00

3

0814362047
ref: 3

BEARING, LH

€ 21.00

4

6473045000
ref: 4

SPACER,REAR HUB BEARING

€ 15.50

5

6473331000
ref: 5

SPACER,REAR HUB BEARING

€ 20.00

6

6471149000
ref: 6

AXLE,REAR

€ 59.00

7

6474049000
ref: 7

SPACER,REAR AXLE,RIGHT

€ 0.00

8

0918020054
ref: 8

SPACER(20X33X28.3)

€ 13.00

9

0918020060
ref: 9

SPACER(20X38X12)

€ 6.50

10-1

0831431188
ref: 10-1

NUT 18MM

€ 5.00

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

0411140308
ref: 11

PIN,COTTER

€ 1.50

12

0916019008
ref: 12

WASHER(19X34X4)

€ 3.00

13

6417145000
ref: 13

COVER,REAR WHEEL HUB

€ 10.00

14

6461131001
ref: 14

DRUM,REAR SPROCKET MOUNT

€ 140.00

15

0811363050
ref: 15

BEARING

€ 21.50

16

0928533001
ref: 16

SEAL,OIL(33X62X7)

€ 20.00

17

6465131000
ref: 17

ABSORBER,REAR HUB SHOCK

€ 9.50

18

6467145000
ref: 18

PLATE,REAR HUB SHOCK ABSORBER

€ 11.00

19

0211205108
ref: 19

SCREW

€ 2.00

20

0832121058
ref: 20

LOCK WASHER

€ 2.00

21

6972147011
ref: 21

BRACKET,RR,CALIPER

€ 29.00

22

6141031000
ref: 22

ADJUSTER,CHAIN

€ 50.00

23

0910408006
ref: 23

BOLT

€ 3.00

24

0831012088
ref: 24

NUT

€ 2.00

25

6143331000
ref: 25

SUPPORTER,CHAIN ADJUST

€ 22.50

26

0151708408
ref: 26

BOLT (8X40)

€ 3.50

27

5921018450
ref: 27

DISC,RR BRAKE

€ 446.00

28

0910008147
ref: 28

BOLT 8X40

€ 2.50

29

0916908016
ref: 29

WASHER

€ 3.50

30

5921449000
ref: 30

SHIM,BRAKE DISC

€ 0.00

31

6451149001
ref: 31

SPROCKET,REAR

€ 114.00

32

0911910002
ref: 32

BOLT

€ 3.50

33

0831012108
ref: 33

NUT

€ 2.50

34

0916910007
ref: 34

WASHER

€ 7.50

35-1

6510049230
ref: 35-1

TIRE 4.50V17

€ 258.00

35-2

NOTUSED
ref: 35-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

36

6520049010
ref: 36

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

37

6526149010
ref: 37

PROTECTOR,INNER TUBE

€ 2.00

38-1

6531149010
ref: 38-1

RIM (N17X7T2.50)

€ 0.00

38-2

NOTUSED
ref: 38-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

39-1

6530049821
ref: 39-1
FROM 65300-49820

SPOKE SET

€ 0.00

39-2

NOTUSED
ref: 39-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

40

5541111000
ref: 40

BALANCER,WHEEL (B)

€ 4.50

41

5541211000
ref: 41

BALANCER,WHEEL (30G)

€ 8.00

42

6837749000
ref: 42

LABEL,CHAIN WEAR INDICATOR

€ 3.50
